Product Description
The Voltpro Energy 24V 100Ah LiFePO4 Lithium Battery is engineered to provide reliable, efficient, and long-lasting power for a wide range of applications. Built using premium-grade LiFePO4 cells, this battery offers exceptional cycle life, superior safety, and excellent performance compared to traditional lead-acid batteries.
The battery is equipped with a JK Smart BMS featuring Active Balancing technology, which continuously balances cell voltages to improve battery health, maximize capacity utilization, and extend overall lifespan. The integrated JK Smart LCD Display provides real-time access to important battery information, including voltage, current, State of Charge (SOC), temperature, and protection status.
With its lightweight design, maintenance-free operation, and advanced battery management system, the Voltpro Energy 24V 100Ah battery is an ideal choice for solar energy storage, inverter systems, backup power, telecommunications, RVs, electric vehicles, and off-grid applications.
KEY FEATURES
* 24V 100Ah LiFePO4 Lithium Battery
• Premium Grade LiFePO4 Cells
• Built-in JK Smart BMS
• Active Cell Balancing Technology
• JK Smart LCD Display Included
• Real-Time Battery Monitoring
• High Energy Density
• Long Service Life
• Fast Charging Capability
• Maintenance-Free Operation
• Enhanced Safety Protection System
• Lightweight and Compact Design
PRODUCT HIGHLIGHTS
✔️ Voltpro Energy Premium Quality Battery
✔️ 2560Wh Energy Storage Capacity
✔️ JK Smart BMS with Active Balancing
✔️ Smart LCD Battery Monitoring Display
✔️ Long Cycle Life Performance
✔️ Safe LiFePO4 Battery Technology
✔️ Ideal for Solar and Inverter Systems
✔️ Low Maintenance and High Efficiency
✔️ Reliable Backup Power Solution
✔️ Built for Daily Deep Cycle Use
TECHNICAL SPECIFICATIONS
Brand: Voltpro Energy Battery Type: LiFePO4 (Lithium Iron Phosphate) Nominal Voltage: 25.6V Nominal Capacity: 100Ah Energy Capacity: 2560Wh BMS Type: JK Smart BMS Balancing Method: Active Balancing Display: JK Smart LCD Display Communication: Smart Monitoring Support Cycle Life: 6000+ Cycles Charging Voltage: 29.2V Recommended Cut-off Voltage: 20V Application: Solar Systems, Inverters, UPS, Telecom, RV, Marine, Energy Storage
APPLICATIONS
* Solar Energy Storage Systems • Hybrid Solar Installations • Inverter Battery Backup • UPS Systems • RV and Camper Power Systems • Marine Applications • Telecom Backup Systems • Off-Grid Energy Storage • Industrial Power Backup
Frequently Asked Questions
The Voltpro Energy 24V 100Ah LiFePO4 Battery is a premium deep-cycle lithium battery designed for 24V solar systems, inverter backup, UPS systems, home energy storage and off-grid applications. It uses EVE Grade A LiFePO4 cells and a JK PB1A16S10P Smart Inverter BMS with 1A active balancing.
Although commonly marketed as a 24V battery, its actual nominal voltage is 25.6V, based on an 8S LiFePO4 configuration.
The battery has a rated capacity of 100Ah and approximately 2.56kWh (2560Wh) of nominal energy.

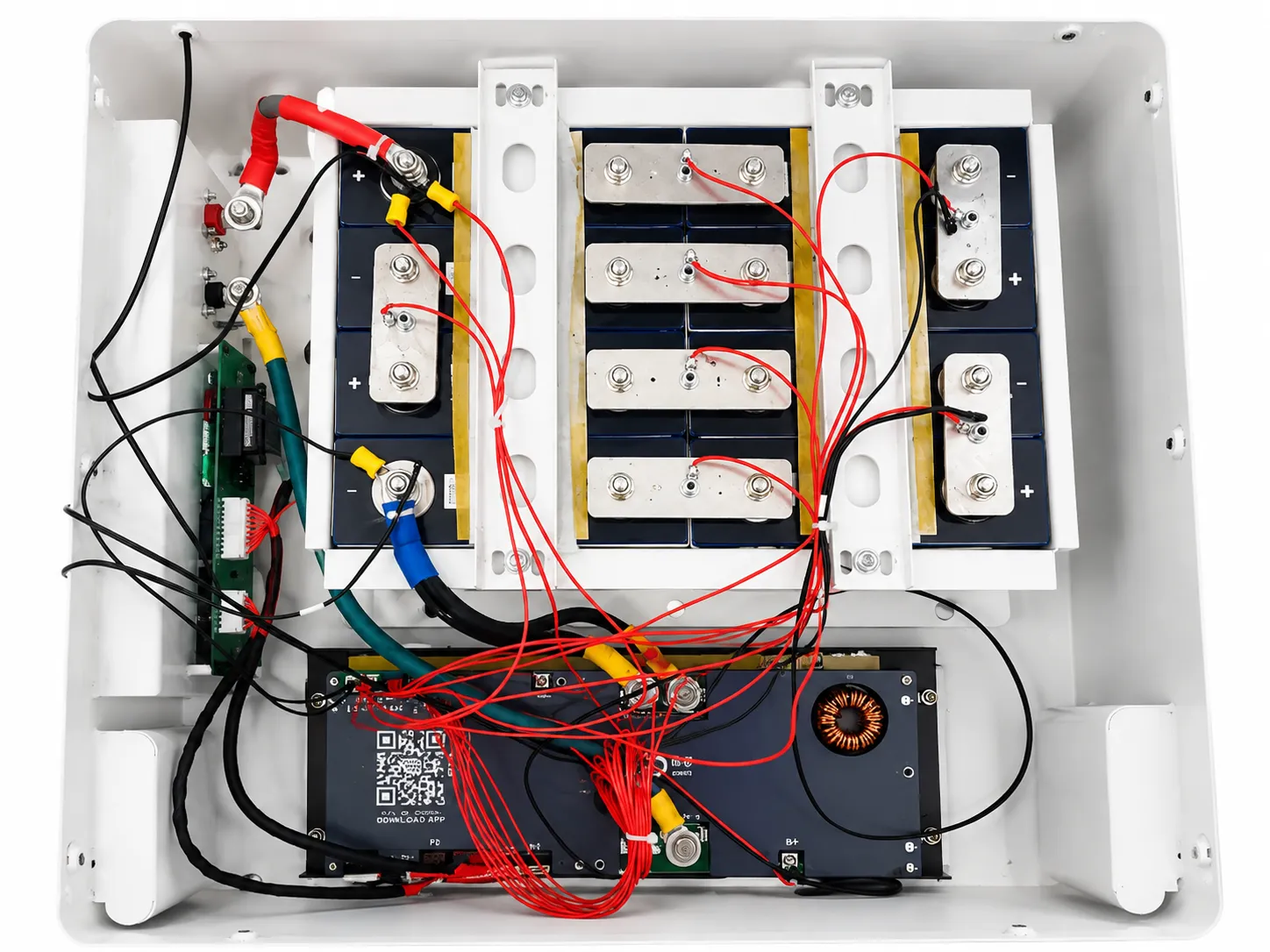

The battery uses 8 LiFePO4 cells connected in series (8S). Each cell has approximately 3.2V nominal voltage, resulting in 8 × 3.2V = 25.6V.
The battery uses EVE Grade A LiFePO4 cells, selected for reliable performance, efficiency and long-term energy storage.
The specified cell internal resistance is approximately 0.28mΩ. Actual measurements can vary slightly depending on the cell and measurement conditions.
The battery is specified for approximately 6000 cycles under suitable operating conditions. Actual cycle life depends on depth of discharge, charging/discharging current, temperature and usage conditions.
The battery uses a JK PB1A16S10P Smart Inverter BMS, designed for compatible lithium battery and inverter applications.
The BMS provides 1A active cell balancing, helping reduce voltage differences between individual cells and maintain better cell balance.
Active balancing can help improve cell voltage consistency, maximize usable battery capacity, reduce cell imbalance and support stable battery performance over time.
Yes. The JK PB1A16S10P is an inverter-oriented BMS and supports communication interfaces such as CAN and RS485, depending on the exact configuration and compatible inverter protocol.
Yes. It is suitable for compatible 24V-class inverter systems. The inverter must support the operating and charging voltage range of a 25.6V LiFePO4 battery.
Yes. The battery is designed for 24V solar energy-storage systems and can be used with a compatible solar charge controller or inverter.
Yes. It can be used with a compatible 24V hybrid inverter, provided the inverter supports LiFePO4 batteries and the appropriate BMS communication protocol where required.
The battery provides approximately 2.56kWh of nominal energy, calculated as 25.6V × 100Ah.
Backup time depends on the connected load. A lower-power load will provide longer backup, while a higher-power load will reduce runtime. Inverter efficiency, battery condition and other system losses also affect actual backup time.
Yes. It can be used for compatible home backup loads such as fans, LED lights, Wi-Fi routers, televisions, computers, CCTV systems and other appliances within the inverter and battery limits.
Yes. It can be used with compatible 24V UPS systems that support LiFePO4 batteries.
Yes. According to the specified product configuration, up to 10 Voltpro Energy 25.6V 100Ah batteries can be connected in parallel.
Parallel connection keeps the voltage approximately the same while increasing the total capacity and energy storage.
Yes. Up to 10 batteries can be connected in parallel according to the specified configuration. Properly matched batteries, cables, busbars, fuses and protection equipment should be used.
No. Parallel connection keeps the nominal voltage at approximately 25.6V while increasing the total Ah capacity and available energy.
The battery is designed as an 8S 25.6V battery. Series connection should only be used if specifically approved for the exact battery, BMS and inverter configuration.
A typical 8S LiFePO4 battery uses a maximum charging voltage of approximately 29.2V. The final charging parameters should be configured according to the battery and BMS specifications.
The BMS manages and monitors the battery pack and provides protection against conditions such as overcharge, over-discharge, over-current, short circuit and temperature-related issues, depending on configuration.
Yes. Compatible inverters can communicate with the JK BMS through supported interfaces such as CAN or RS485. The inverter must support the relevant JK BMS communication protocol.
The JK Smart BMS platform supports Bluetooth monitoring, depending on the exact BMS configuration. Compatible monitoring software can provide information such as voltage, current, SOC, cell voltage and temperature.
Yes. Its LiFePO4 chemistry and 6000-cycle specification make it suitable for regular daily charging and discharging in solar energy-storage applications.
Yes. LiFePO4 is widely used in energy-storage applications because of its good thermal stability, efficiency, long cycle life and deep-cycle capability.
Yes. Compared with traditional lead-acid batteries, LiFePO4 batteries require very little routine maintenance and do not require electrolyte watering.
It can replace a compatible 24V lead-acid system when the inverter/charger supports the appropriate 25.6V LiFePO4 voltage and charging profile. Compatibility should be checked before replacement.
The Voltpro Energy 24V 100Ah battery is suitable for:
Solar Energy Storage
24V Inverter Systems
Home Backup
UPS Systems
Off-Grid Solar
Hybrid Solar Systems
Telecom Backup
Emergency Power
Commercial Energy Storage
RV & Camping Applications
Check your inverter's battery voltage range, LiFePO4 compatibility, charging voltage, maximum charging current, discharge requirements and BMS communication compatibility.
Yes. The system supports up to 10 batteries in parallel, allowing customers to expand their energy-storage capacity as their requirements increase.
Ten 25.6V 100Ah batteries connected in parallel provide approximately 25.6V 1000Ah, equivalent to approximately 25.6kWh nominal energy capacity.
Yes. Multiple batteries can be connected in parallel to create a larger energy-storage system, making it suitable for compatible commercial applications.
EVE Grade A cells are selected for their quality, consistency and suitability for high-quality lithium battery manufacturing. The specified 0.28mΩ IR also supports efficient battery operation.
It combines EVE Grade A cells, approximately 0.28mΩ IR, 6000-cycle life, JK PB1A16S10P Inverter BMS, 1A active balancing and support for up to 10 batteries in parallel in one energy-storage solution.
Yes. The Voltpro Energy 24V 100Ah LiFePO4 Battery comes with a 5-year warranty, subject to the applicable warranty terms and conditions.
You can purchase the Voltpro Energy 25.6V 100Ah LiFePO4 Battery directly from Voltpro Energy, subject to availability.
Visit www.voltproenergy.com for product information, availability and purchasing details. The battery is an ideal choice for customers looking for a 24V 100Ah LiFePO4 battery with EVE Grade A cells, JK Inverter BMS and scalable parallel capacity.
