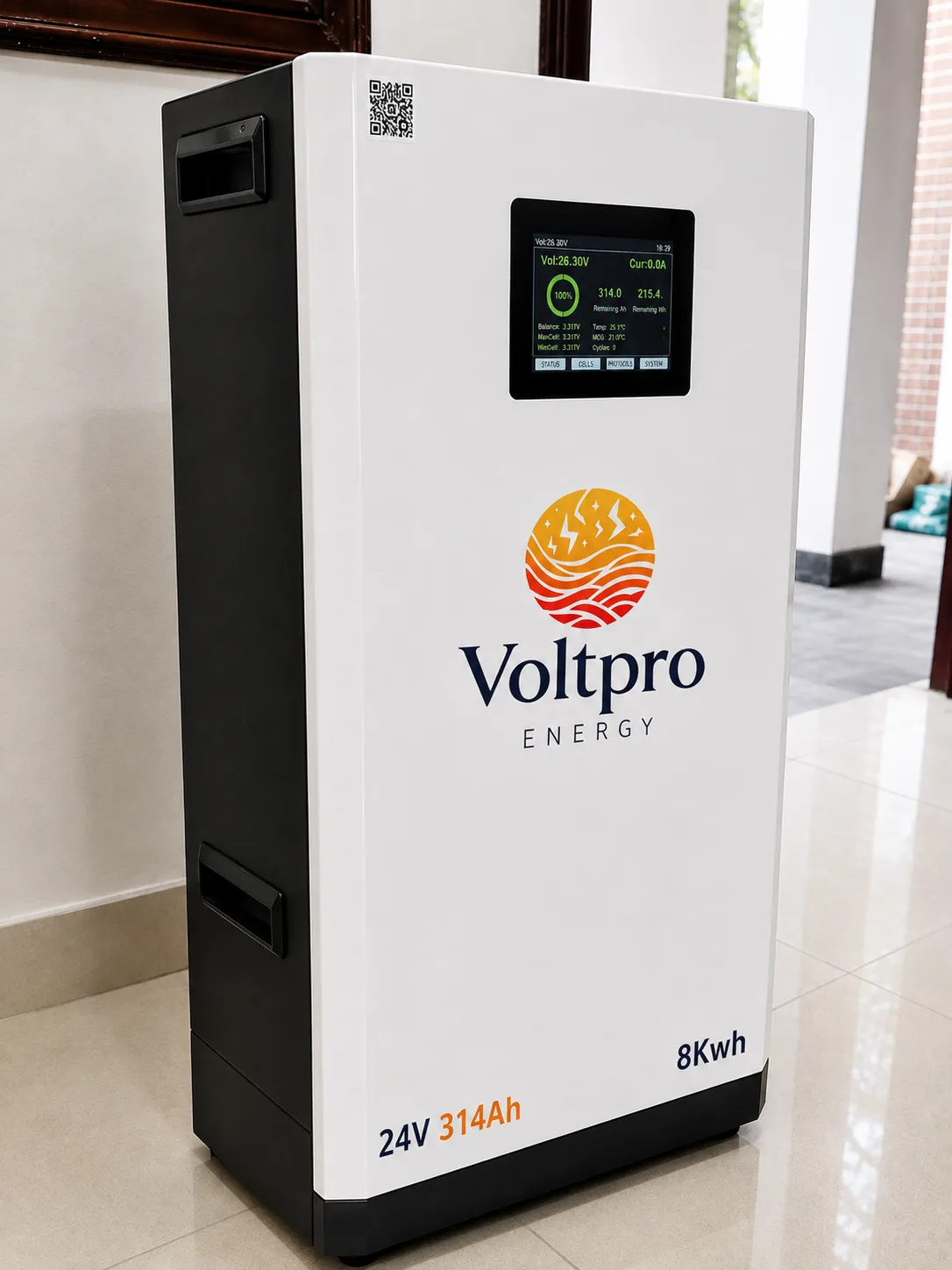

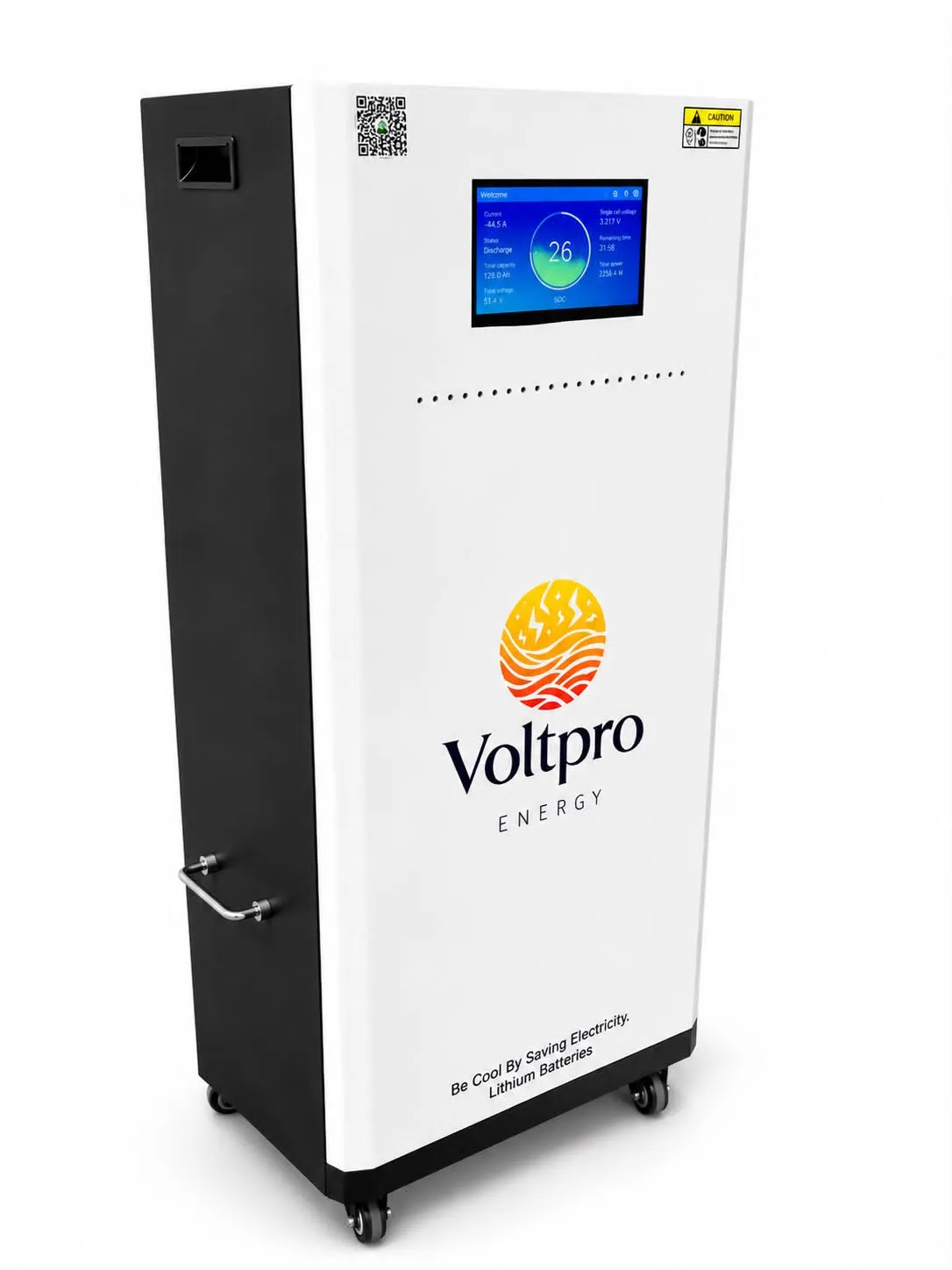

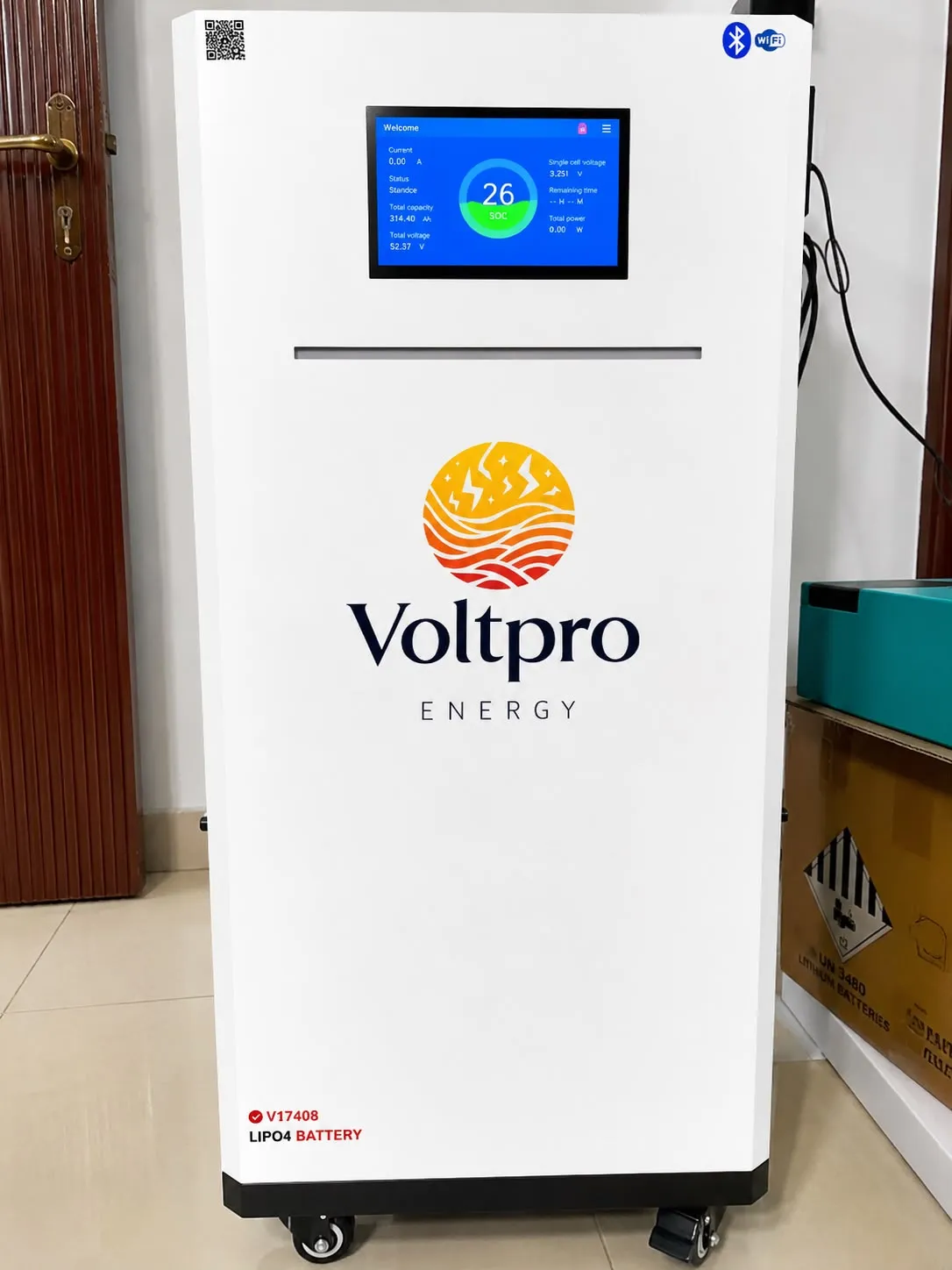

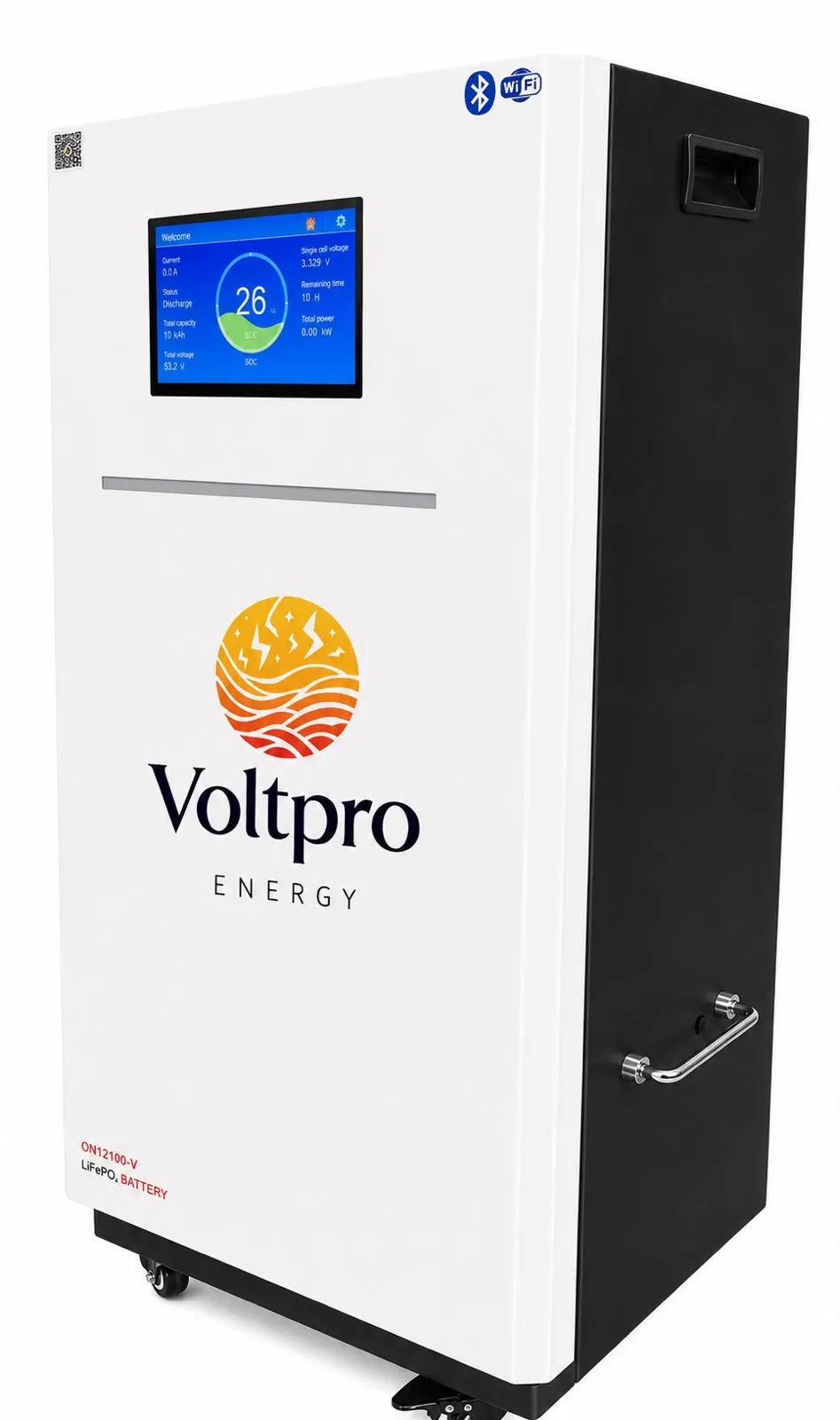

Voltpro Energy 24V 314Ah LiFePO4 Battery | EVE A-Grade 8000+ Cycles | JK Inverter BMS PB2A16S20P | 200A | 2A Active Balancing | 4.3" Touchscreen

Product Description

Short Description The Voltpro Energy 24V 314Ah LiFePO4 Battery is a high-capacity energy storage solution designed for solar systems, hybrid inverters, home backup, commercial applications and off-grid power systems. Built with EVE A-Grade LiFePO4 cells rated for 8000+ cycles, this battery delivers approximately 7.54kWh of nominal energy storage. It features the JK PB2A16S20P Inverter BMS, providing up to 200A charge/discharge current, 350A peak discharge and 2A active cell balancing. The battery also includes a JK 4.3-inch Touchscreen LCD, allowing users to conveniently monitor important battery parameters directly from the battery. Product Overview The Voltpro Energy 24V 314Ah battery is designed for users who need high energy capacity, long cycle life and intelligent inverter communication in a 24V battery system. The battery uses high-quality EVE A-Grade LiFePO4 cells in a 24V-class configuration and is managed by the advanced JK PB2A16S20P Inverter BMS. Unlike a basic battery BMS, the JK Inverter BMS is designed for applications where communication between the battery BMS and compatible inverter is required. Depending on the inverter and communication protocol, the BMS can provide battery information and control parameters to help the inverter manage charging and discharging more intelligently. Key Features 24V / 25.6V LiFePO4 Battery 314Ah High Capacity Approx. 7.54kWh Nominal Energy EVE A-Grade LiFePO4 Cells 8000+ Cycle Life JK Inverter BMS BMS Model: PB2A16S20P 200A Charge Current 200A Discharge Current 350A Peak Discharge 2A Active Cell Balancing JK 4.3-Inch Touchscreen LCD Intelligent Battery Monitoring Inverter Communication Support* Cell Voltage Monitoring Temperature Monitoring Overcharge & Over-Discharge Protection Over-Current Protection Short-Circuit Protection Suitable for Solar & Hybrid Inverters Suitable for Home & Commercial Backup Suitable for Off-Grid Energy Storage *Actual inverter communication depends on inverter compatibility, supported protocol and correctly configured communication interface/cable. Technical Specifications Specification Details Product Type LiFePO4 Lithium Battery Nominal Voltage 25.6V Battery Capacity 314Ah Nominal Energy Approx. 8.03kWh Usable Energy Depends on BMS settings, DoD & system efficiency Battery Chemistry LiFePO4 Cell Brand EVE Cell Grade A Grade Cycle Life 8000+ Cycles* BMS Brand JK Smart BMS Type Inverter BMS BMS Model PB2A16S20P Charge Current Up to 200A Discharge Current Up to 200A Peak Discharge Up to 350A Active Balancing 2A LCD Display JK 4.3" Touchscreen Battery Configuration 8S LiFePO4 Application Solar, Inverter, UPS, Backup & Off-Grid Energy calculation: 25.6V × 314Ah ≈ 8.03kWh. *Actual cycle life depends on charging voltage, discharge depth, temperature, current and operating conditions. EVE A-Grade 314Ah LiFePO4 Cells At the heart of this battery are EVE A-Grade LiFePO4 cells. The cells are selected for long-term energy-storage applications and are specified for 8000+ cycles under suitable operating and test conditions. Advantages of EVE LiFePO4 Cells A-Grade Cell Quality Long Cycle Life Stable LiFePO4 Chemistry High Energy Storage Capacity Suitable for Deep-Cycle Applications Excellent for Solar Energy Storage Designed for Long-Term Repeated Cycling With 314Ah capacity, the battery is capable of storing a substantial amount of energy while maintaining the advantages of LiFePO4 chemistry. JK PB2A16S20P Inverter BMS The battery uses the JK PB2A16S20P Inverter BMS, specifically designed for high-performance battery systems and inverter-integrated applications. BMS Specifications Model: JK PB2A16S20P Type: Inverter BMS Charge Current: Up to 200A Discharge Current: Up to 200A Peak Discharge: Up to 350A Active Balancing: 2A Series Support: Up to 16S Cell Monitoring: Yes Temperature Monitoring: Yes Inverter Communication: Supported with compatible systems JK Inverter BMS Communication One of the major advantages of the PB2A16S20P is its inverter-oriented communication capability. The BMS can communicate important battery information to a compatible inverter, allowing the inverter and battery to work together based on battery status and configured parameters. Depending on the inverter and communication protocol, information may include: Battery Voltage Battery Current State of Charge (SOC) Charging Status Discharging Status Battery Temperature Cell Voltage Information Protection Status Battery Alarms Important Communication is not automatically guaranteed with every inverter brand/model. The inverter must support the appropriate JK communication protocol and connection/interface. Correct communication cable, protocol selection and BMS/inverter settings are also required. 2A Active Cell Balancing The JK BMS provides 2A active balancing. Active balancing helps maintain better voltage consistency between individual cells by transferring energy between cells rather than simply wasting excess energy as heat. This is particularly beneficial in a high-capacity 314Ah battery, where maintaining cell consistency can contribute to better overall battery performance. JK 4.3-Inch Touchscreen LCD The battery is equipped with a JK 4.3-inch Touchscreen LCD Display. The touchscreen provides a convenient interface for checking battery information directly from the battery without depending entirely on a mobile phone or external monitoring system. Information Available on the Touchscreen Depending on the BMS configuration, the display can show: Total Battery Voltage Battery Current Battery Power Battery SOC % Individual Cell Voltages Cell Voltage Difference Active Balancing Status Balance Current Battery Temperature MOS Temperature Charging Status Discharging Status Cycle Information Protection/Alarm Status The touchscreen makes battery monitoring much easier for home, commercial and solar installations. 24V 314Ah Battery Energy Capacity The battery provides approximately: 25.6V × 314Ah = 8,038Wh Therefore, the battery stores approximately 8.04kWh of nominal energy. Actual usable energy depends on: BMS settings Depth of discharge Inverter efficiency Load characteristics Battery temperature Operating conditions Backup Time Examples The following figures are approximate and based on the battery's 8.04kWh nominal energy. Load Approx. Theoretical Backup Approx. at 90% System Efficiency 100W ~80.4 Hours ~72.4 Hours 250W ~32.2 Hours ~28.9 Hours 500W ~16.1 Hours ~14.5 Hours 750W ~10.7 Hours ~9.6 Hours 1000W ~8.0 Hours ~7.2 Hours 1500W ~5.36 Hours ~4.82 Hours 2000W ~4.02 Hours ~3.62 Hours 2500W ~3.22 Hours ~2.89 Hours 3000W ~2.68 Hours ~2.41 Hours 4000W ~2.01 Hours ~1.81 Hours 5000W ~1.61 Hours ~1.45 Hours 6000W ~1.34 Hours ~1.21 Hours Note: These are estimated values. Actual backup time varies according to battery usable capacity, inverter efficiency, power factor, temperature, BMS settings and actual load. What Can a 24V 314Ah Battery Run? With a correctly sized inverter, this battery can provide backup for a wide range of household and commercial loads. Home Appliances LED Lights Ceiling Fans LED TV Wi-Fi Router CCTV System Computers Laptops Refrigerator Deep Freezer Internet/Networking Equipment LED Lighting Systems Small Water Pumps* Other compatible appliances *Motor loads require an inverter capable of handling the appliance's startup/surge current. Example Home Backup For example, a combined load of: 5 LED Lights 3 Fans Wi-Fi Router CCTV System LED TV Computer can be supported by this battery depending on the actual wattage of each appliance and the inverter configuration. For heavier loads such as refrigerators, freezers, pumps or air conditioners, the inverter must be appropriately sized for both continuous and startup power. Suitable Applications ☀️ Solar Energy Storage Store solar energy during the day and use it during nighttime or periods of low solar generation. 🏠 Home Backup Provides substantial backup capacity for essential household appliances. ⚡ Hybrid Inverter Systems The JK Inverter BMS makes the battery suitable for compatible inverter communication systems. 🏢 Commercial Backup The high 314Ah capacity can support larger backup requirements. 🌐 Off-Grid Systems Suitable for remote locations where reliable energy storage is required. 🔋 UPS Systems Can be used with compatible 24V LiFePO4 UPS/inverter systems.
