2V 100Ah LiFePO4 Battery is a premium energy storage solution designed for solar systems, hybrid inverters, backup power, and off-grid applications
Equipped with a JK Smart BMS, Active Balancing technology, and a Smart LCD Display, it delivers reliable performance, enhanced safety, and real-time battery monitoring
PRODUCT DESCRIPTION
The Voltpro Energy 51
Tip: Scroll inside the gallery to browse all images.
Product Description
SHORT DESCRIPTION
The Voltpro Energy 51.2V 100Ah LiFePO4 Battery is a premium energy storage solution designed for solar systems, hybrid inverters, backup power, and off-grid applications. Equipped with a JK Smart BMS, Active Balancing technology, and a Smart LCD Display, it delivers reliable performance, enhanced safety, and real-time battery monitoring.
PRODUCT DESCRIPTION
The Voltpro Energy 51.2V 100Ah LiFePO4 Lithium Battery is built to provide dependable and long-lasting energy storage for residential, commercial, and industrial applications. Manufactured using high-quality LiFePO4 cells, this battery offers exceptional cycle life, superior thermal stability, and enhanced safety compared to conventional battery technologies.
The Voltpro Energy 51.2V 100Ah LiFePO4 Lithium Battery is built to provide dependable and long-lasting energy storage for residential, commercial, and industrial applications. Manufactured using high-quality LiFePO4 cells, this battery offers exceptional cycle life, superior thermal stability, and enhanced safety compared to conventional battery technologies.

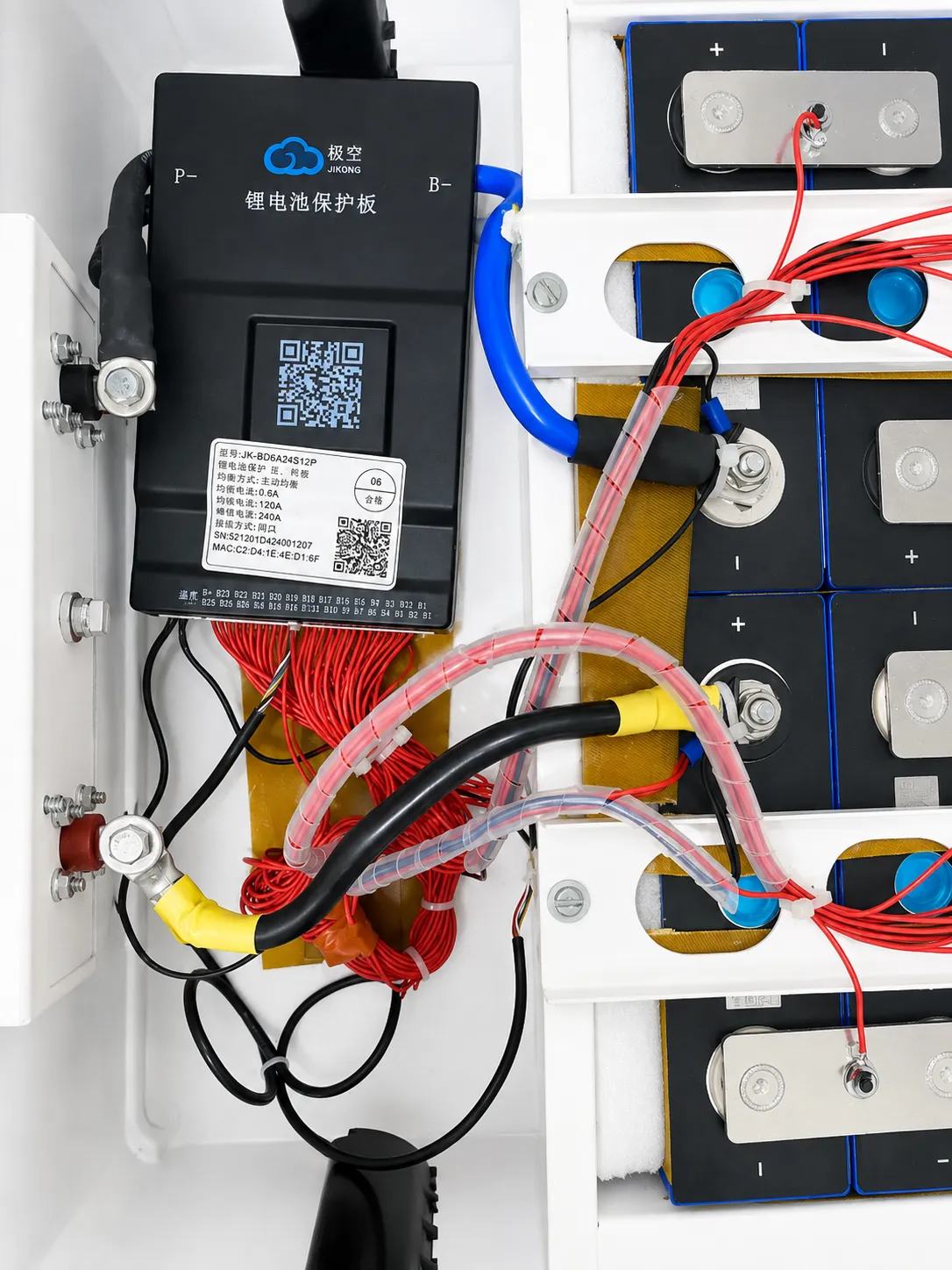

Integrated with a JK Smart BMS featuring Active Balancing, the battery continuously balances individual cell voltages to maximize performance, improve efficiency, and extend battery lifespan. The included JK Smart LCD Display allows users to monitor battery voltage, current, State of Charge (SOC), temperature, and protection status in real time.
With a large 5.12kWh energy capacity, this battery is ideal for solar energy storage systems, hybrid inverters, backup power solutions, telecom equipment, and off-grid energy applications.
KEY FEATURES
* 51.2V 100Ah LiFePO4 Lithium Battery
* Premium Grade LiFePO4 Cells
* Built-in JK Smart BMS
* Active Cell Balancing Technology
* JK Smart LCD Display Included
* Real-Time Battery Monitoring
* 5.12kWh Energy Storage Capacity
* Long Service Life
* Fast Charging Support
* Maintenance-Free Operation
* Advanced Protection System
* Lightweight and Compact Design
PRODUCT HIGHLIGHTS
✔️ Voltpro Energy Premium Quality Battery
✔️ 5120Wh (5.12kWh) Energy Capacity
✔️ JK Smart BMS with Active Balancing
✔️ Smart LCD Battery Monitoring Display
✔️ 6000+ Cycle Life
✔️ Safe LiFePO4 Technology
✔️ Ideal for Solar & Hybrid Inverters
✔️ High Efficiency and Low Maintenance
✔️ Reliable Backup Power Solution
✔️ Designed for Daily Deep Cycle Use
TECHNICAL SPECIFICATIONS
Brand: Voltpro Energy
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Energy Capacity: 5120Wh (5.12kWh)
Configuration: 16S
BMS Type: JK Smart BMS
Balancing Method: Active Balancing
Display: JK Smart LCD Display
Cycle Life: 6000+ Cycles
Charging Voltage: 58.4V
Recommended Cut-off Voltage: 40V
Application: Solar Systems, Hybrid Inverters, UPS, Telecom, Energy Storage
APPLICATIONS
* Solar Energy Storage Systems
* Hybrid Solar Installations
* Home Backup Power Systems
* Off-Grid Energy Storage
* UPS Systems
* Telecom Backup Power
* Commercial Energy Storage
* Industrial Power Backup
* RV and Mobile Power Solutions
Frequently Asked Questions
The Voltpro Energy 51.2V 100Ah LiFePO4 Battery is a high-performance lithium energy storage battery designed for solar systems, hybrid inverters, backup power, UPS systems, commercial energy storage and off-grid applications. It features a JK Smart BMS with 150A current rating and 1A active cell balancing.
The battery has a rated capacity of 100Ah and approximately 5120Wh (5.12kWh) of nominal energy capacity.
A 51.2V LiFePO4 battery typically consists of 16 cells connected in series (16S). Each LiFePO4 cell has a nominal voltage of approximately 3.2V, resulting in approximately 51.2V nominal voltage.
Yes. A 51.2V LiFePO4 battery is commonly used with compatible 48V-class inverter systems. Always verify the inverter's lithium battery voltage range and charging parameters before installation.
The battery is built using high-quality LiFePO4 (Lithium Iron Phosphate) cells, selected for reliable performance, safety and long-term energy storage applications.
The battery is equipped with a JK Smart BMS with a 150A current rating.
The JK Smart BMS provides 1A active cell balancing, which helps reduce voltage differences between individual cells and maintain better battery balance.
1A active balancing helps maintain more consistent cell voltages, improve usable battery capacity, reduce cell imbalance and support stable battery performance over time.
Yes. The specified JK Smart BMS supports 8S to 24S configurations. The Voltpro Energy 51.2V 100Ah battery itself uses a 16S configuration.
The installed JK Smart BMS has a 150A current rating. The complete battery system should always be designed according to the actual continuous and peak load requirements.
Yes. The Voltpro Energy 51.2V 100Ah LiFePO4 Battery is designed for solar energy storage systems and compatible solar/hybrid inverter applications.
Yes. It is suitable for compatible 48V-class hybrid inverter systems. The inverter must support the battery voltage range and appropriate LiFePO4 charging parameters.
Yes. With approximately 5.12kWh of nominal energy capacity, it can be used for compatible home backup applications such as lighting, fans, electronics, networking equipment and other loads within the system's power limits.
Yes. The battery can be used with compatible UPS systems designed for 48V-class LiFePO4 batteries.
For a typical 16S LiFePO4 battery, the full charging voltage is approximately 58.4V. The actual charging parameters should be configured according to the battery and BMS specifications.
The recommended cut-off voltage can be set according to the battery and BMS configuration. The product specification lists 40V as the recommended cut-off voltage. For best battery life, appropriate voltage settings should be used according to the actual system requirements.
Yes. The battery is equipped with a JK Smart LCD Display for convenient battery monitoring.
Depending on the BMS configuration, the LCD can display information such as battery voltage, current, State of Charge (SOC), cell voltage, temperature and battery protection/status information.
The JK Smart BMS platform can support Bluetooth monitoring, depending on the exact BMS configuration and installed communication hardware. This allows users to monitor important battery parameters through a compatible application.
The battery provides approximately 5.12kWh (5120Wh) of nominal energy capacity, calculated as 51.2V × 100Ah.
Backup time depends on the connected load. For example, a 5.12kWh battery can theoretically provide longer backup for lower loads and shorter backup for higher loads. Actual backup time also depends on inverter efficiency, battery condition, temperature and other system losses.
Yes. LiFePO4 chemistry is well suited for daily deep-cycle energy storage, making this battery a suitable option for regular solar charging and backup applications.
Yes. It can be used in compatible off-grid solar and energy-storage systems where the inverter, charger and battery voltage are properly matched.
Yes. Its 5.12kWh capacity and 150A JK Smart BMS make it suitable for various compatible commercial and small industrial energy-storage applications.
Yes. It can be used for compatible telecom and communication backup systems, provided the system voltage and current requirements are suitable.
The battery can be specified with a 6000+ cycle life when using suitable LiFePO4 cells and operating under appropriate conditions. Actual cycle life depends on depth of discharge, temperature, charging/discharging current and usage conditions.
LiFePO4 is known for its strong thermal and chemical stability compared with many other lithium-ion chemistries. However, correct charging, installation, wiring and BMS protection are still essential for safe operation.
Yes. LiFePO4 batteries require significantly less routine maintenance than traditional lead-acid batteries and do not require electrolyte watering.
Yes. It can be used as an energy-storage battery in a compatible solar + hybrid inverter system, allowing solar energy to be stored and used when required.
The battery's 150A-rated JK Smart BMS makes it suitable for many high-power applications, provided the inverter, cables, terminals, protection devices and battery cells are appropriately rated.
A 51.2V 100Ah battery stores approximately 5.12kWh, while a 12.8V 100Ah battery stores approximately 1.28kWh. The 51.2V battery is therefore designed for higher-voltage energy-storage and inverter systems.
It can replace compatible lead-acid battery systems when the inverter/charger supports the required 51.2V LiFePO4 charging and operating parameters. System compatibility should always be checked before replacement.
Yes. It is an excellent option for compatible residential solar energy storage and home backup systems, particularly where a 48V-class battery system is required.
Yes. The JK Smart BMS and LCD monitoring system can provide battery information including SOC, depending on the specific configuration and display setup.
Before purchasing, verify your inverter's:
Battery voltage range
Maximum charging voltage
Maximum charging current
Maximum discharge/current requirement
Lithium battery compatibility
BMS communication requirements
Yes. The 5.12kWh energy capacity makes it suitable for compatible off-grid homes, cabins and backup energy systems, depending on the household load and required backup duration.
You can purchase the Voltpro Energy 51.2V 100Ah LiFePO4 Battery directly from Voltpro Energy, subject to product availability.
Visit www.voltproenergy.com for product information, availability and purchasing details.
Yes. Voltpro Energy offers competitive pricing for lithium battery solutions in Pakistan. Wholesale and bulk-order customers can contact Voltpro Energy for the latest pricing and availability.
The battery combines high-quality LiFePO4 cells, a JK Smart 150A BMS, 1A active balancing, 5.12kWh energy capacity and smart monitoring in one complete energy-storage solution. It is designed for customers looking for reliable performance for solar, inverter and backup applications.
This battery is ideal for homeowners, solar installers, businesses, UPS users, off-grid users and energy-storage customers looking for a high-capacity 51.2V lithium battery for compatible solar and backup power systems.
