TDT Smart Inverter BMS 300A with 3A Active Balance, WiFi & Bluetooth | LiFePO4 & Lithium-ion Battery Management System | 7S-16S | CAN RS485 UART | Solar ESS EV UPS
Rs 35,000
Govt Tax: +Rs 1,400.00(Govt Tax 4%)
TDT Smart Inverter BMS 300A with 3A Active Balance, WiFi & Bluetooth | LiFePO4 & Lithium-ion Battery Management System | 7S-16S | CAN RS485 UART | Solar ESS EV UPS
The TDT-1001 Smart Inverter BMS is a premium battery management system designed for professional lithium battery packs used in solar energy storage, inverter batteries, UPS systems, RVs, and backup power applications
Featuring 3A Active Balancing, 300A continuous current, 600A peak discharge, and multiple communication protocols, it ensures maximum battery performance, safety, and long service life
Product Highlights
✅ Model: TDT-1001
✅ Smart Inverter BMS
Tip: Scroll inside the gallery to browse all images.
Product Description
Product Short Description
The TDT-1001 Smart Inverter BMS is a premium battery management system designed for professional lithium battery packs used in solar energy storage, inverter batteries, UPS systems, RVs, and backup power applications. Featuring 3A Active Balancing, 300A continuous current, 600A peak discharge, and multiple communication protocols, it ensures maximum battery performance, safety, and long service life.
Product Highlights
✅ Model: TDT-1001
✅ Smart Inverter BMS
✅ Supports 7S–16S Battery Packs
✅ 3A Active Balancing
✅ Up to 300A Continuous Current
✅ Up to 600A Peak Discharge
✅ WiFi & Bluetooth Monitoring
✅ CAN / RS485 / UART / RS232 Communication
✅ Supports LiFePO4, Li-ion & LTO Batteries
✅ Parallel Connection up to 20 Battery Packs
✅ High Efficiency MOS Design
✅ Professional Grade Battery Management
Product Features

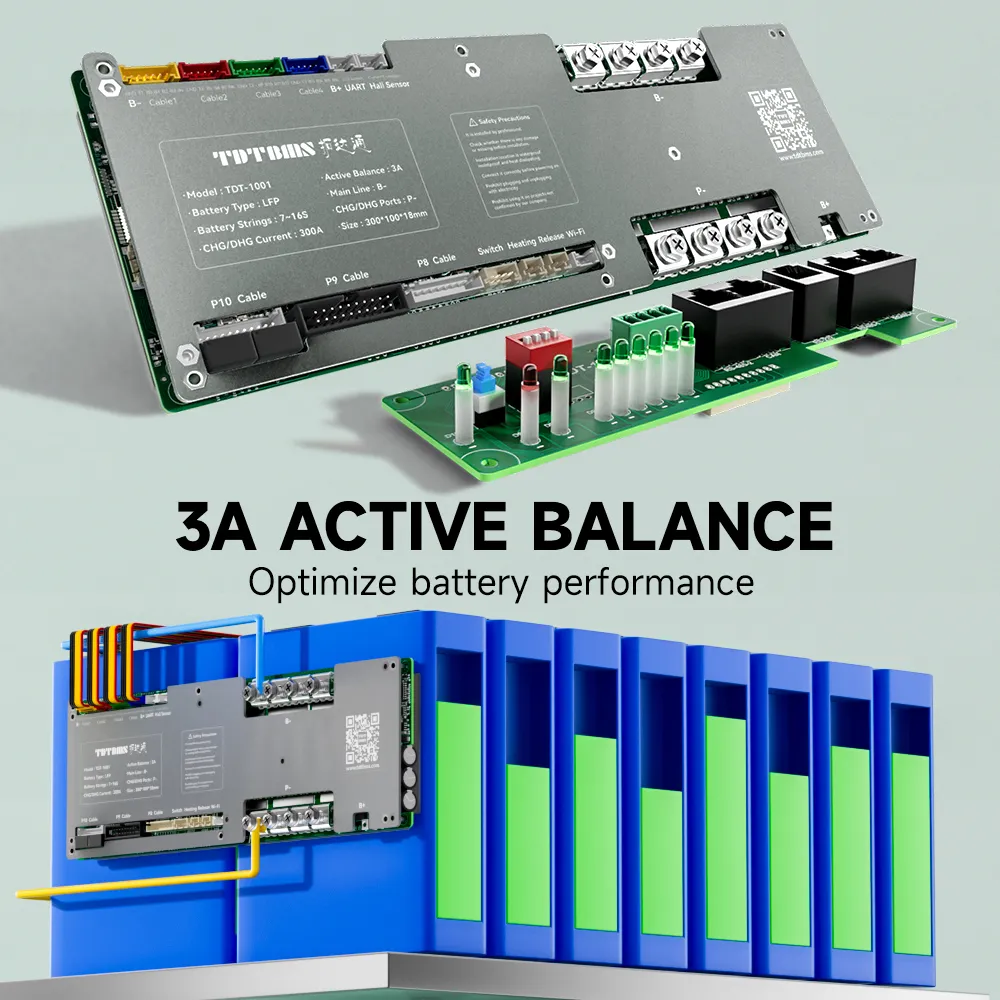

3A Active Cell Balancing
Powerful 3A active balancing transfers energy between cells, keeping the battery pack balanced, increasing usable capacity, and extending battery lifespan.

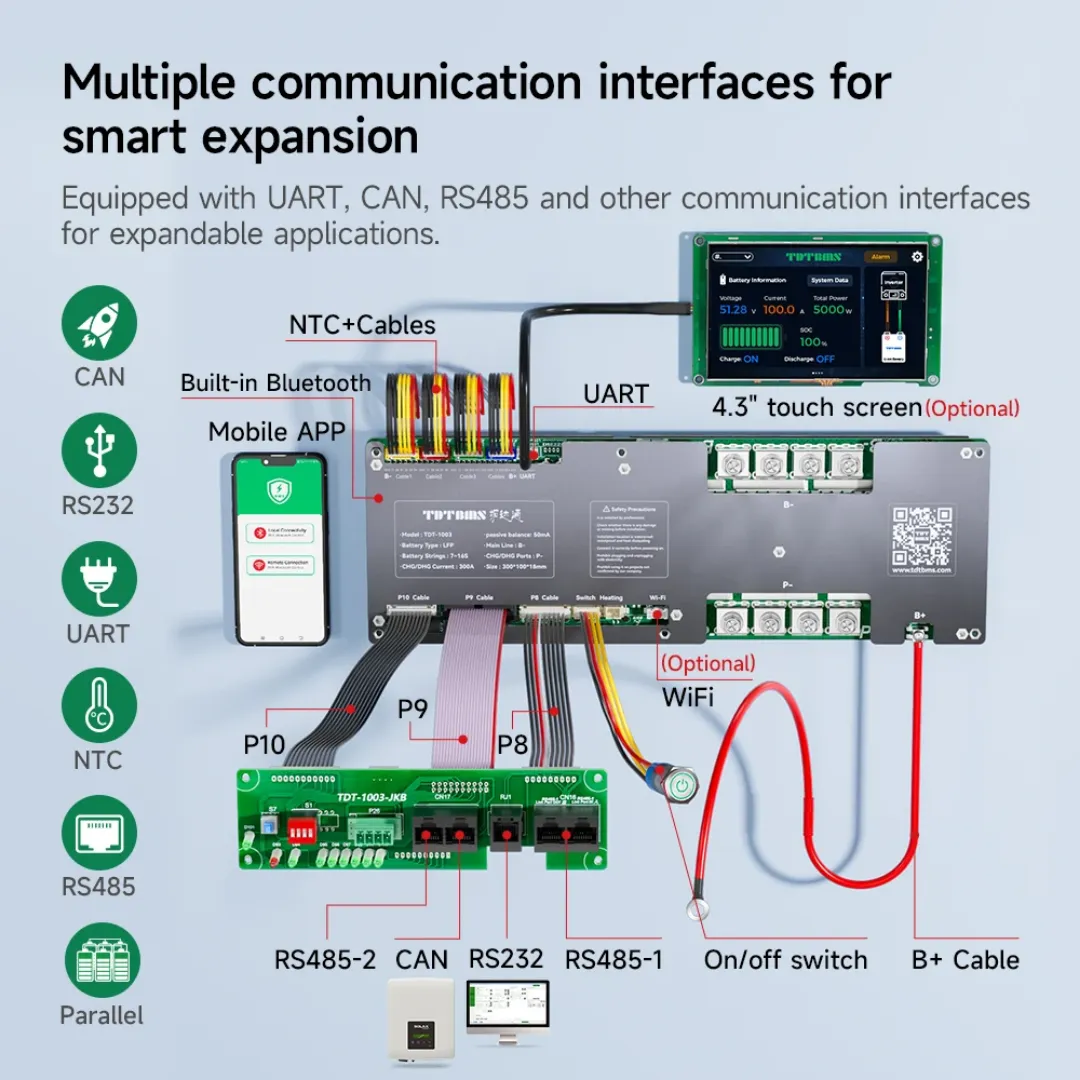

Smart Communication

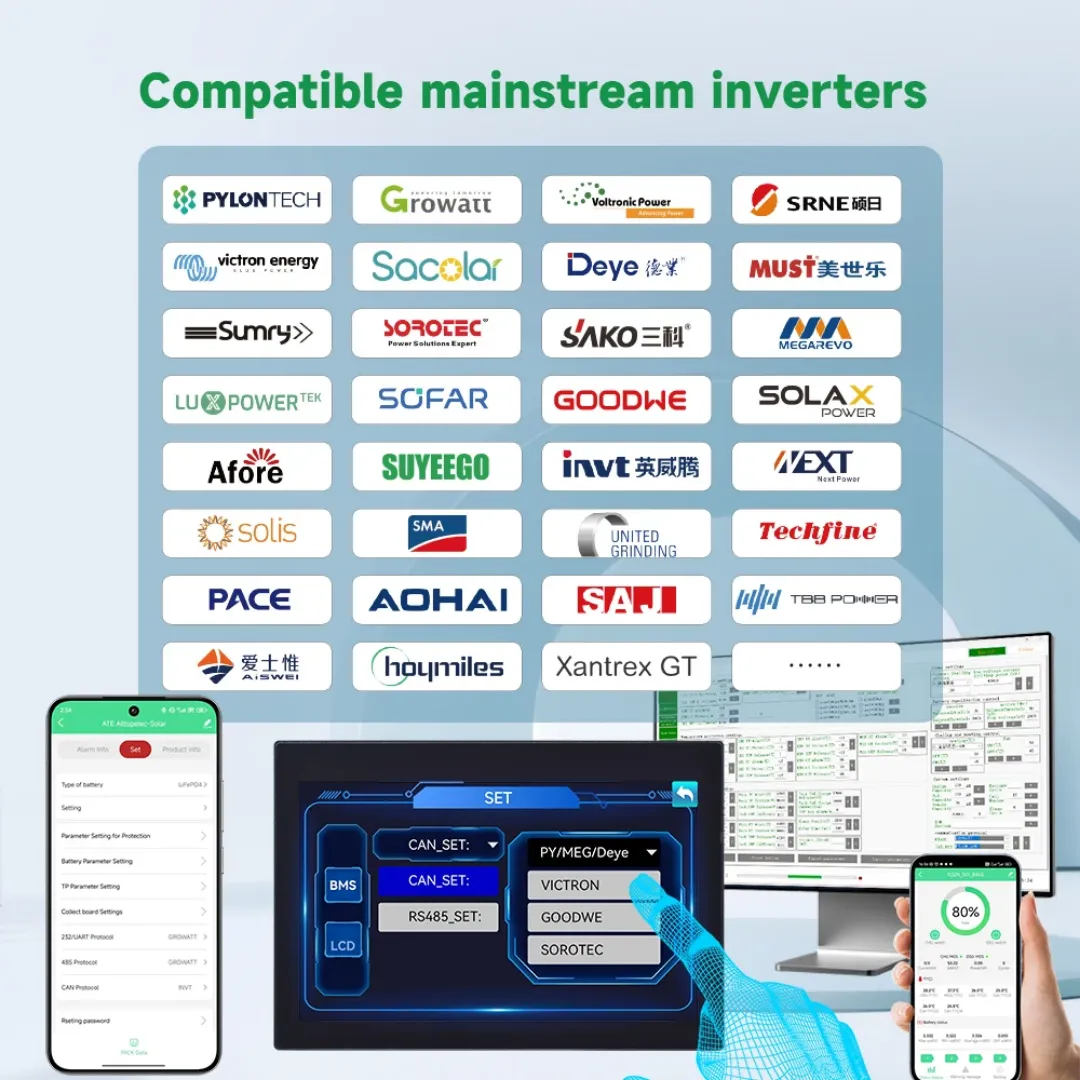

Supports WiFi, Bluetooth, CAN Bus, RS485, UART, and RS232, allowing real-time battery monitoring and inverter communication.
High Current Capability
Designed for demanding applications with up to 300A continuous current and 600A peak discharge.

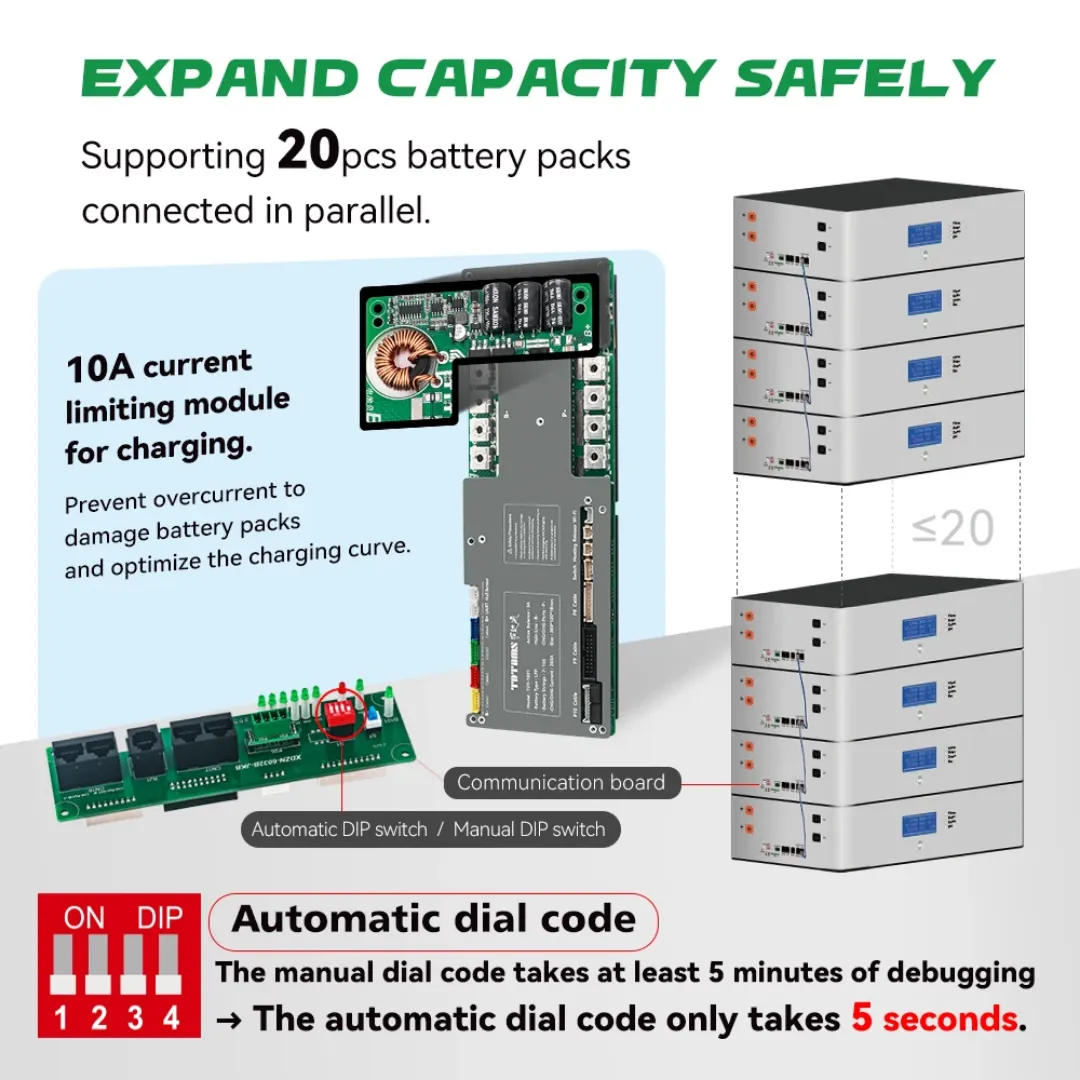

Parallel Battery Support
Supports parallel connection of up to 20 battery packs, making it ideal for large energy storage systems.
Advanced Protection
Built-in intelligent protection against overcharge, over-discharge, overcurrent, short circuit, and overheating.
Wide Battery Compatibility
Compatible with LiFePO4 (LFP), Lithium-ion (NMC), and LTO battery chemistries.
Technical Specifications
* Model: TDT-1001
* BMS Type: Smart Inverter BMS
* Battery Type: LiFePO4 / Li-ion / LTO
* Battery Strings: 7S–16S
* Balance Method: 3A Active Balance
* Balance Current: 3A
* Continuous Current: Up to 300A
* Peak Discharge Current: Up to 600A
* Communication: WiFi, Bluetooth, CAN, RS485, UART, RS232
* Parallel Connection: Up to 20 Battery Packs
* Dimensions: 300 × 100 × 18 mm
Protection Functions
* Over Charge Protection
* Over Discharge Protection
* Over Current Protection
* Peak Current Protection
* Short Circuit Protection
* Temperature Protection
* Cell Voltage Protection
* Cell Balancing Protection
* Communication Fault Protection
Applications
✔️ Solar Energy Storage Systems
✔️ Hybrid & Off-Grid Inverters
✔️ Home Energy Storage
✔️ Commercial ESS
✔️ UPS Backup Systems
✔️ RV & Camper Batteries
✔️ Telecom Backup Batteries
✔️ Industrial Lithium Battery Packs
✔️ DIY Lithium Battery Projects
✔️ High-Power Energy Storage Systems
Frequently Asked Questions
The TDT-1001 is a Smart Inverter Battery Management System (BMS) designed for high-performance lithium battery packs. It features 3A active cell balancing, smart monitoring, inverter communication support, and 7S–16S battery configuration support.
The TDT-1001 supports 7S to 16S lithium battery configurations, making it suitable for various battery voltage systems depending on the battery chemistry and series configuration.
Yes. The TDT-1001 supports compatible LiFePO4 (LFP) battery systems. The BMS must be correctly configured according to the battery chemistry and series configuration.
Yes. The TDT-1001 supports compatible Lithium-ion/NMC and LiFePO4 battery applications.
3A active balancing transfers energy between individual cells to reduce voltage differences and maintain better balance throughout the battery pack.
3A active balancing can help reduce cell voltage differences, improve battery pack balance, improve usable capacity, maintain consistent cell voltages, and improve overall battery performance.
The TDT-1001 series is available in different current versions, including 100A, 150A, 200A, 250A and 300A, depending on the specific model/version.
Yes. A 300A version is available for high-current lithium battery and energy-storage applications.
The specified configuration can support up to 600A peak discharge current. Peak current is intended for short-duration operation and should not be treated as the continuous operating rating.
Yes. A typical 16S LiFePO4 battery has approximately 51.2V nominal voltage, and the TDT-1001 supports up to 16S.
Yes. The TDT-1001 is suitable for compatible solar energy storage, inverter battery and high-power energy-storage applications.
Yes. The TDT-1001 is specifically designed as a Smart Inverter BMS and supports communication interfaces for compatible inverter systems.
The TDT-1001 supports communication options including Bluetooth, CAN, RS485, UART and RS232, depending on the specific version and configuration.
Yes. The TDT-1001 supports Bluetooth monitoring, depending on the specific product configuration.
Yes. CAN and RS485 communication are supported options. The inverter must use a compatible communication protocol for successful BMS communication.
The TDT-1001 supports up to 20 battery packs in parallel according to the specified product configuration.
Yes. With 7S–16S support, up to 3A active balancing, high-current versions and support for parallel battery packs, the TDT-1001 is suitable for properly designed large energy-storage systems.
The approximate dimensions are 300 × 100 × 18 mm.
Yes. The TDT-1001 can be used with compatible high-capacity LiFePO4 battery packs. The correct current-rated version should be selected according to the battery and inverter requirements.
A 300A version is rated for up to 300A continuous current. However, the battery cells, busbars, cables, terminals, connectors, fuses and thermal management must also be properly rated for the required current.
The primary difference is their continuous current rating. The correct version should be selected according to the maximum continuous and peak current requirements of the battery and inverter system.
Yes, it can be used for compatible high-current lithium battery and electric mobility applications where the voltage, current, chemistry and communication requirements are suitable.
The TDT-1001 supports compatible LiFePO4 (LFP) and Lithium-ion/NMC battery applications. The correct BMS parameters must be configured according to the battery chemistry.
You can purchase the TDT-1001 Smart Inverter BMS from Voltpro Energy, subject to product availability.
Visit www.voltproenergy.com to check product availability, specifications and purchasing information.
The TDT-1001 is suitable for users looking for a high-current Smart Inverter BMS with 3A active balancing, Bluetooth, inverter communication and 7S–16S support for solar storage, inverter batteries, energy storage systems, EV applications and custom lithium battery packs.
