The JK-BD6A24S15P Smart Active Balance BMS is a high-performance Battery Management System designed for 8S–24S lithium battery packs
It provides 150A continuous charge/discharge current, 0
6A Active Cell Balancing, Bluetooth monitoring and support for compatible communication interfaces
The BMS supports LiFePO4, Lithium-Ion and LTO batteries, making it an excellent choice for solar energy storage, inverter batteries, electric vehicles, electric bikes, UPS systems and high
Tip: Scroll inside the gallery to browse all images.
Product Description
Product Description
The JK-BD6A24S15P Smart Active Balance BMS is a high-performance Battery Management System designed for 8S–24S lithium battery packs. It provides 150A continuous charge/discharge current, 0.6A Active Cell Balancing, Bluetooth monitoring and support for compatible communication interfaces.
The BMS supports LiFePO4, Lithium-Ion and LTO batteries, making it an excellent choice for solar energy storage, inverter batteries, electric vehicles, electric bikes, UPS systems and high-performance lithium battery packs.
Product Highlights
✅ Model: JK-BD6A24S15P
✅ 150A Continuous Charge & Discharge Current
✅ 300A Peak / Maximum Discharge Current
✅ 0.6A Active Balancing
✅ 8S–24S Battery Support
✅ LiFePO4 Battery Compatible
✅ Lithium-Ion Battery Compatible
✅ LTO Battery Compatible
✅ Built-in Bluetooth Monitoring
✅ RS485 Communication Support/Option
✅ LCD Display Options Available
✅ Smart Cell Voltage Monitoring
✅ Temperature Monitoring
✅ Advanced Battery Protection
✅ Common Port Design
Product Features
0.6A Active Cell Balancing
The built-in 0.6A Active Balancer transfers energy between cells to reduce voltage differences and improve battery consistency, usable capacity and overall battery lifespan.
Powerful 150A Performance
With 150A continuous charge/discharge capability and up to 300A maximum instantaneous discharge, the JK-BD6A24S15P is suitable for high-power battery and energy-storage applications.
Wide Battery Configuration
Supports a broad range of battery configurations:
LiFePO4: 8S–24S
Lithium-Ion: 7S–24S
LTO: 12S–24S
This makes it suitable for various 24V, 36V, 48V, 60V and 72V-class battery systems, depending on chemistry and series configuration.
Bluetooth Smart Monitoring
Monitor important battery parameters through the JK BMS mobile application, including cell voltage, pack voltage, current, temperature, SOC and protection status.

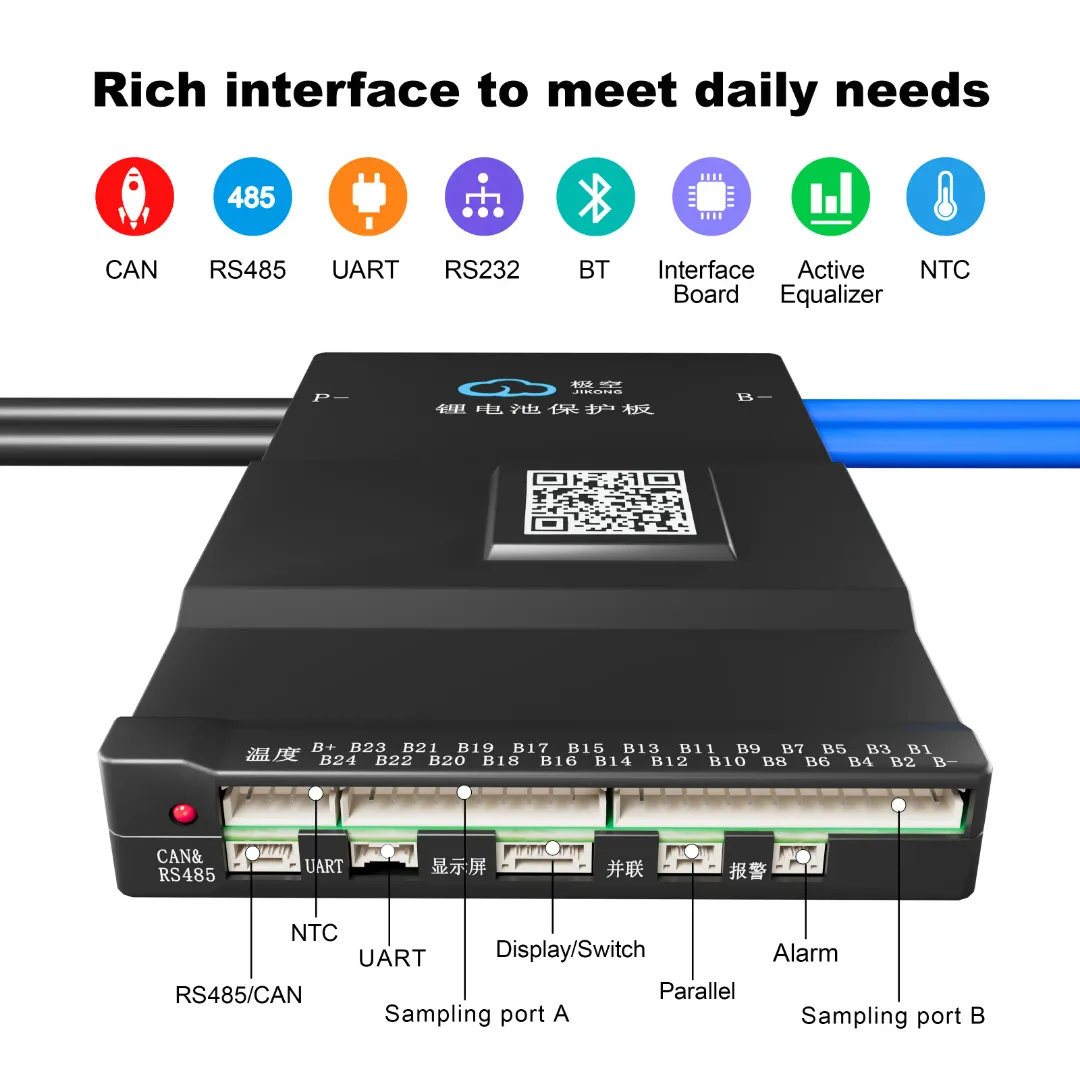

Communication Support
The model is available with Bluetooth, while RS485 and CAN can depend on the selected hardware/version. For a product listing, specify the exact communication interface of your physical unit.
Advanced Battery Protection
The BMS provides protection against:
Overcharge
Over-Discharge
Overcurrent
Short Circuit
Over Temperature
Cell Voltage Abnormalities
Technical Specifications
Specification Details
Model JK-BD6A24S15P
BMS Type Smart Active Balance BMS
LiFePO4 8S–24S
Lithium-Ion 7S–24S
LTO 12S–24S
Continuous Charge Current 150A
Continuous Discharge Current 150A
Peak / Maximum Discharge 300A
Active Balancing Current 0.6A
Balance Method Active Balance

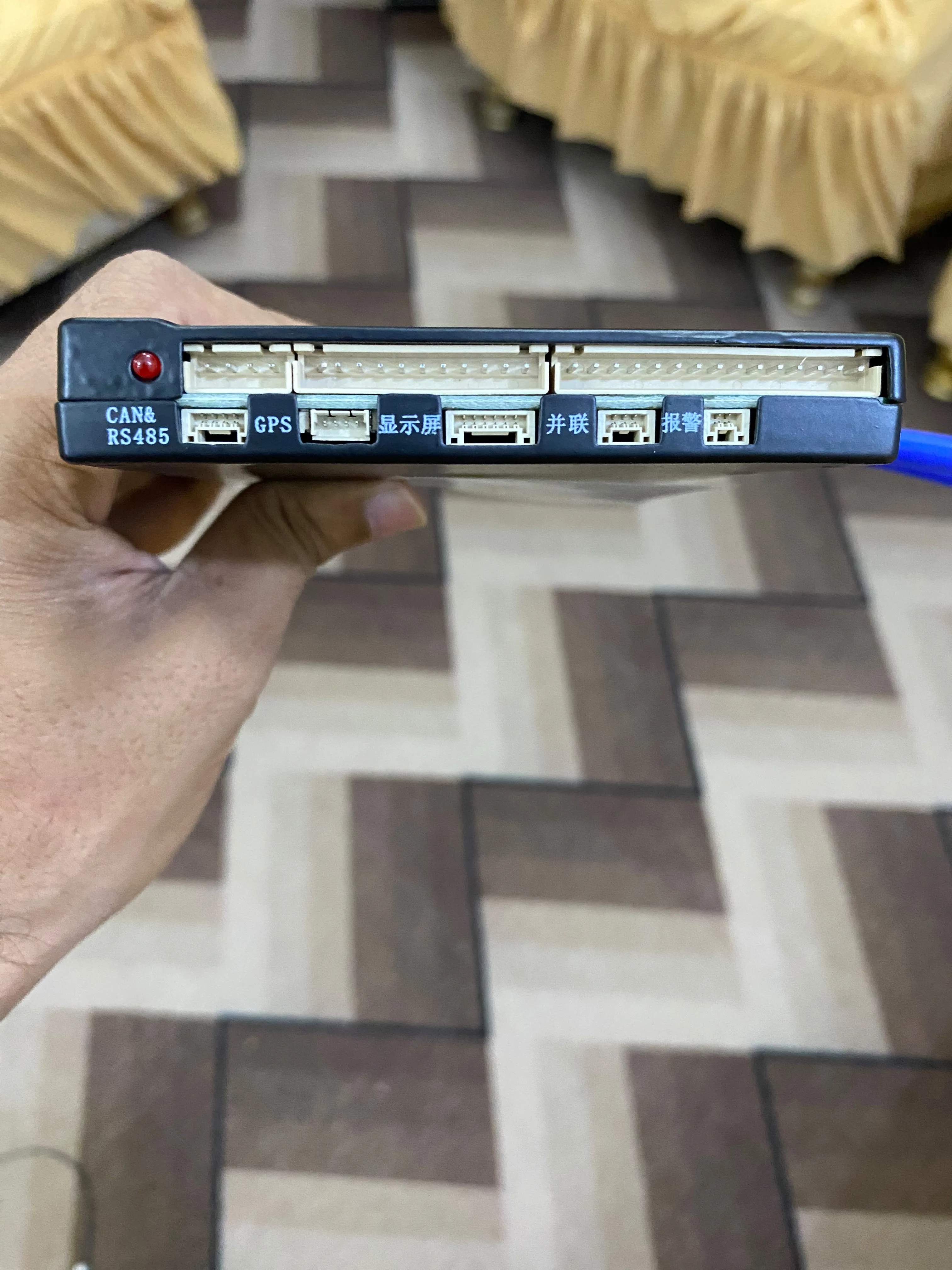

Communication Bluetooth; RS485/CAN depending on version
Cell Voltage Detection 1–5V
Temperature Sensors Up to 3 depending on version
Operating Voltage Range 20–100V
Dimensions Approx. 162 × 102 × 20 mm
The official/current product listings confirm the 8–24S, 150A and 0.6A configuration; some versions list RS485 as standard while CAN is offered as an option.
Protection Functions
✔ Over Charge Protection
✔ Over Discharge Protection
✔ Over Current Protection
✔ Short Circuit Protection
✔ Over Temperature Protection
✔ Cell Voltage Protection
✔ Active Cell Balancing
✔ Temperature Monitoring
✔ Adjustable Protection Parameters
Applications
✔ Solar Energy Storage Systems
✔ Home Inverter Batteries
✔ Hybrid & Off-Grid Solar Systems
✔ Electric Vehicles (EV)
✔ Electric Bikes & Scooters
✔ 48V LiFePO4 Battery Packs
✔ 60V Lithium Battery Systems
✔ 72V Battery Systems
✔ UPS Backup Systems
✔ RV & Camper Batteries
✔ DIY Lithium Battery Projects
✔ Industrial Energy Storage
Frequently Asked Questions
The JK-BD6A24S15P is a Smart Battery Management System (BMS) designed for compatible lithium battery packs. It supports 8S to 24S, provides 150A continuous discharge current, and features 0.6A active cell balancing.
The BMS supports 8S to 24S battery configurations, making it suitable for a wide range of lithium battery systems.
Yes. It supports compatible LiFePO4 (LFP) battery packs. It is also listed for Li-ion and LTO applications.
Yes. An 8S LiFePO4 battery has a nominal voltage of approximately 25.6V, and the BMS supports 8S.
Yes. A typical 16S LiFePO4 battery has approximately 51.2V nominal voltage, and the JK-BD6A24S15P supports 16S.
Yes. Its 8S–24S range allows it to support various higher-voltage lithium battery configurations. A 24S LiFePO4 battery has approximately 76.8V nominal voltage.
The JK-BD6A24S15P is rated for 150A continuous discharge current. Some specifications also list a 300A maximum discharge current for up to 2 minutes.
The 0.6A active balancing system transfers energy between cells to help reduce voltage differences and maintain better balance throughout the battery pack.
Active balancing can help:
Reduce voltage differences between cells
Improve battery pack balance
Improve usable battery capacity
Maintain more consistent cell voltages
Improve overall battery performance
Help maintain better cell balance over time
No. The 0.6A active balancing current and 150A discharge rating are separate specifications. The 0.6A refers to cell balancing, while 150A refers to the BMS's discharge capability.
Yes. It is suitable for compatible solar energy storage, inverter batteries and high-current lithium battery systems. The complete battery system must be properly designed according to its current requirements.
Yes. It can be used with compatible inverter battery systems. The inverter's maximum continuous and peak current requirements should be checked before installation.
Yes. The JK-BD6A24S15P is listed with Bluetooth for smart monitoring.
Yes. RS485 is listed as a communication option. CANBus may be available depending on the specific configuration or optional module.
Yes. It can be used in compatible EV, electric bike and electric mobility battery applications where the battery voltage, chemistry and current requirements match the BMS.
Yes. It can be suitable for a 150Ah lithium battery, provided the battery cells and complete system can safely handle the required charging and discharging current.
Yes. A 150A BMS can be used with a 200Ah LiFePO4 battery when the required operating current is within the BMS rating and the battery cells are suitable for the application.
The BMS supports 8S to 24S.
For LiFePO4 batteries:
8S = approximately 25.6V
16S = approximately 51.2V
20S = approximately 64V
24S = approximately 76.8V
Individual cells connected in series can develop differences in voltage and state of charge. Active balancing helps reduce these differences by transferring energy between cells.
Yes. The 0.6A active balancing function can be useful for compatible high-capacity lithium battery packs. The appropriate balancing current depends on cell capacity, cell matching and battery configuration.
Yes. It can be installed in a compatible new lithium battery pack. The battery chemistry, cell count, current requirements, wiring and BMS parameters must be correctly matched.
The BMS is rated at 150A continuous discharge, but a 150A application requires the complete system to be designed for that current. Battery cells, busbars, cables, terminals, connectors, fuses and thermal management must all be appropriately rated.
Yes. A 16S LiFePO4 battery is approximately 51.2V nominal, and the JK-BD6A24S15P supports 16S. It can be suitable for a 51.2V 150Ah system when the battery and load requirements are compatible.
Yes. A 24S LiFePO4 battery has approximately 76.8V nominal voltage, and the JK-BD6A24S15P supports up to 24S.
You can purchase the JK-BD6A24S15P 150A / 0.6A Active Balancer 8S–24S BMS from Voltpro Energy, subject to product availability.
Visit www.voltproenergy.com to check product availability, specifications and purchasing information.
When purchasing, verify the exact JK-BD6A24S15P model, 150A current rating, 0.6A active balancing and 8S–24S configuration to ensure compatibility with your battery system.
