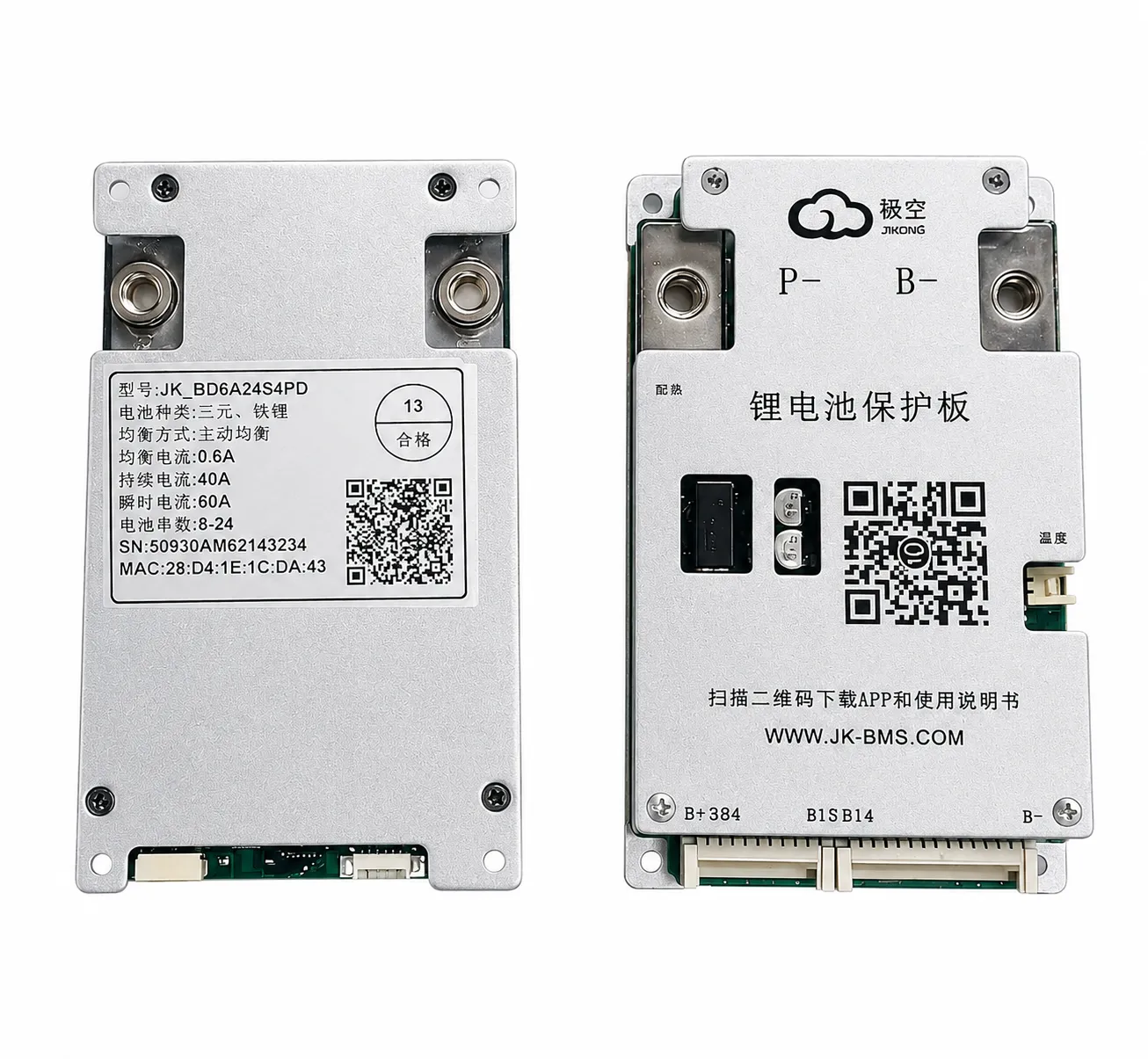

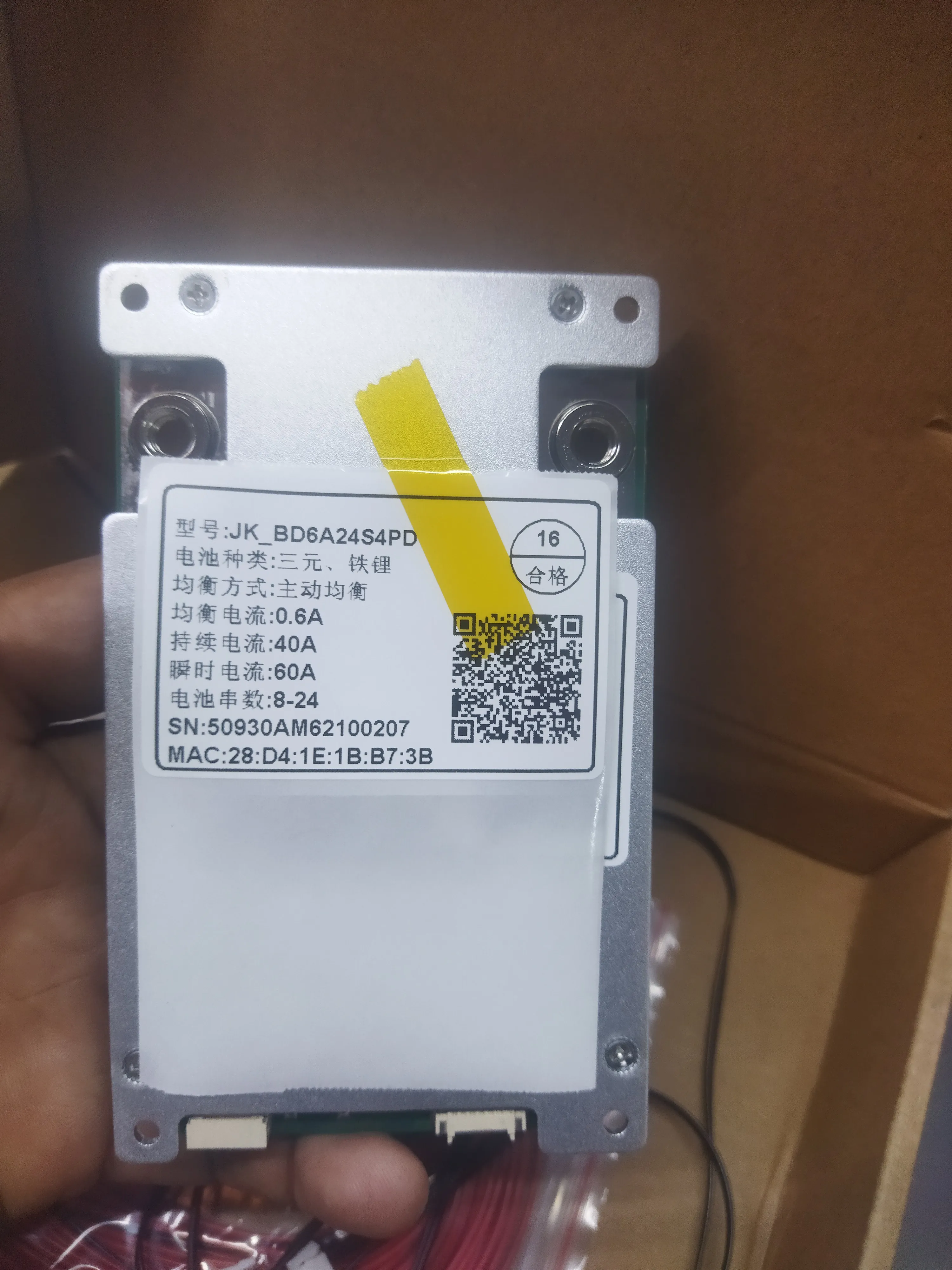

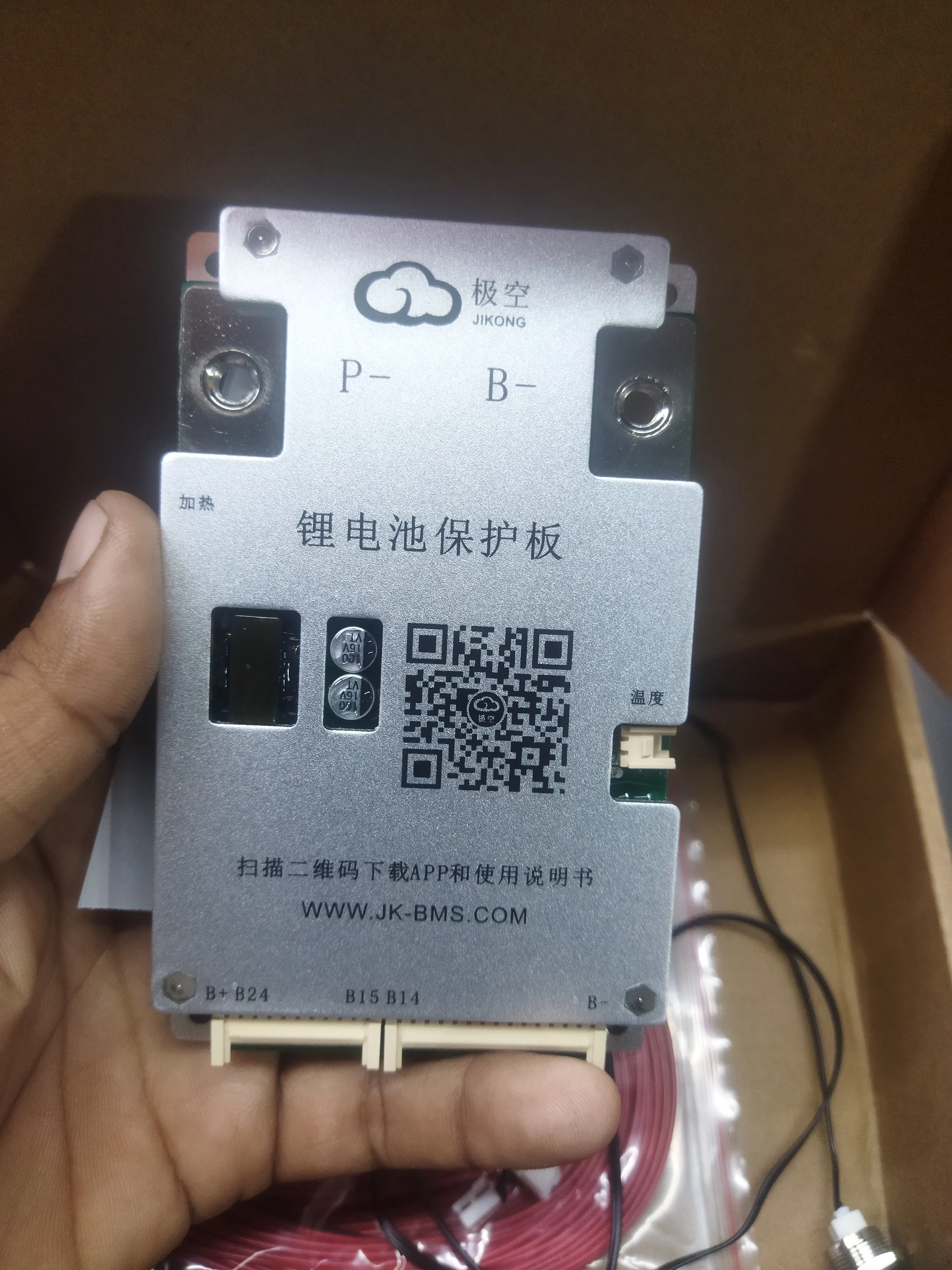

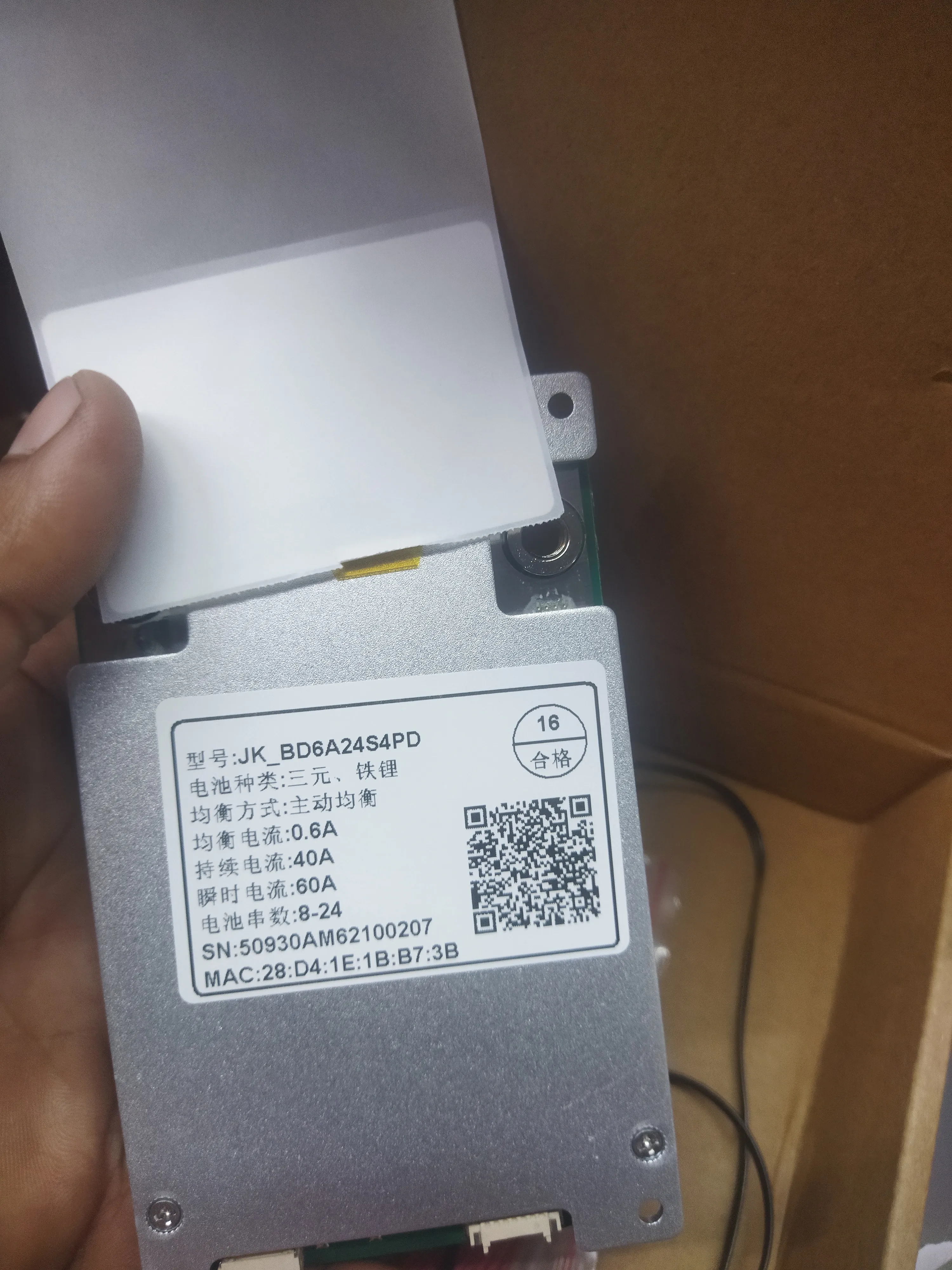

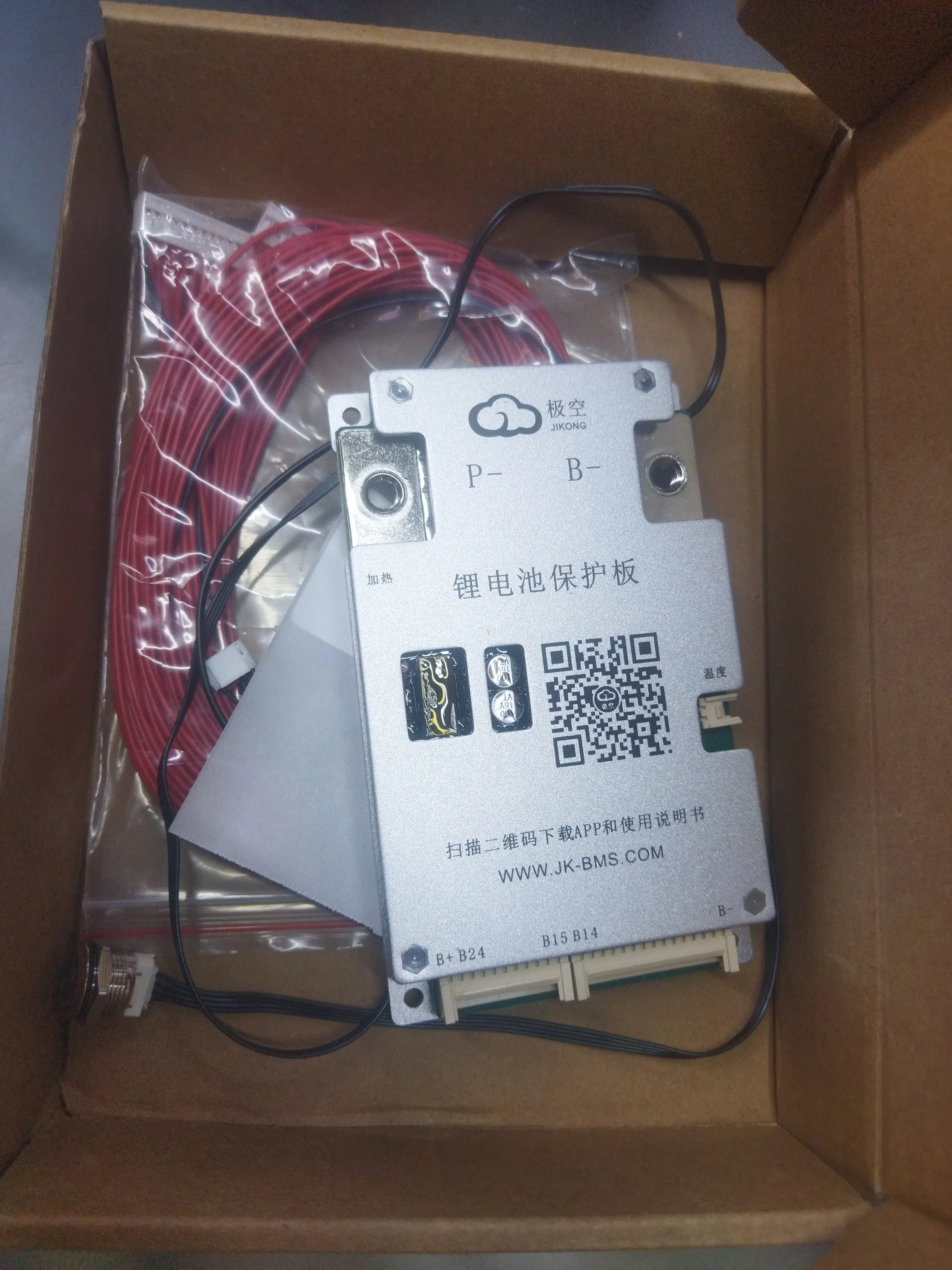

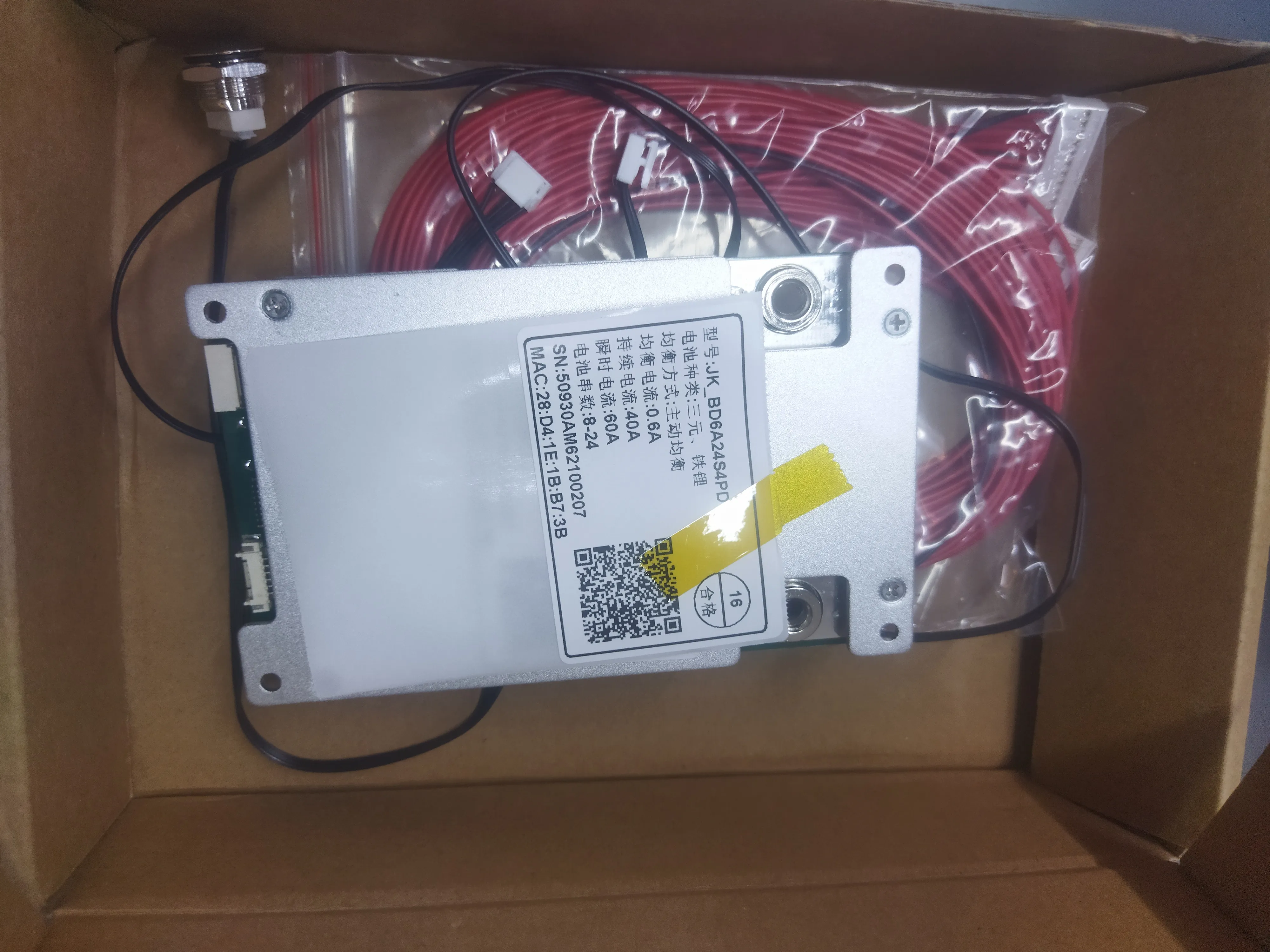

The JK-BD6A24S4PD Smart BMS is an advanced Battery Management System designed for 8S-24S lithium battery packs
Equipped with 0
6A Active Balancing, Bluetooth monitoring, and LCD display support, it ensures maximum battery safety, improved performance, and extended battery life
Compatible with LiFePO4, Lithium-Ion, and LTO batteries, this BMS is ideal for building 24V, 48V, 60V, and 72V battery packs for solar energy storage, UPS systems, electric vehicles, and industrial ene
Tip: Scroll inside the gallery to browse all images.
Product Description
Short Description
The JK-BD6A24S4PD Smart BMS is an advanced Battery Management System designed for 8S-24S lithium battery packs. Equipped with 0.6A Active Balancing, Bluetooth monitoring, and LCD display support, it ensures maximum battery safety, improved performance, and extended battery life. Compatible with LiFePO4, Lithium-Ion, and LTO batteries, this BMS is ideal for building 24V, 48V, 60V, and 72V battery packs for solar energy storage, UPS systems, electric vehicles, and industrial energy storage applications.
Key Highlights
✅ 0.6A Active Balancing Technology
✅ 40A Continuous Charge & Discharge Current
✅ Supports 8S-24S Battery Packs
✅ Build 24V, 48V, 60V & 72V Battery Systems
✅ Bluetooth Mobile App Monitoring
✅ LCD Display Compatible
✅ Real-Time Battery Data Monitoring
✅ LiFePO4, Lithium-Ion & LTO Compatible
✅ Smart Battery Protection System
✅ Overcharge Protection
✅ Over-Discharge Protection
✅ Overcurrent Protection
✅ Short Circuit Protection
✅ High & Low Temperature Protection
✅ Improves Battery Life & Performance
Product Features
Advanced Active Balancing
The built-in 0.6A Active Balancer continuously transfers energy between cells, reducing voltage differences and helping maintain optimal battery health and longer cycle life.
Wide Voltage Range Support
Supports battery configurations from 8S to 24S, making it suitable for:
* 24V LiFePO4 Battery Packs
* 48V LiFePO4 Battery Packs
* 60V Lithium Battery Packs
* 72V Lithium Battery Packs
* Custom Energy Storage Systems
Smart Bluetooth Monitoring
Monitor battery voltage, current, cell voltages, battery temperature, charging status, and alarms directly from your smartphone using the JK BMS mobile application.
LCD Display Support
Compatible with JK LCD displays for convenient real-time monitoring and battery diagnostics.
Complete Battery Protection
The JK Smart BMS offers multiple protection features:
* Overcharge Protection
* Over-Discharge Protection
* Overcurrent Protection
* Short Circuit Protection
* High Temperature Protection
* Low Temperature Protection
* Cell Voltage Imbalance Protection
Longer Battery Life
Active balancing technology helps maintain balanced cell voltages, increasing battery efficiency, reliability, and lifespan.
Applications:
✔️ 24V LiFePO4 Battery Packs
✔️ 48V LiFePO4 Battery Packs
✔️ 60V Lithium Battery Packs
✔️ 72V Lithium Battery Packs
✔️ Solar Energy Storage Systems
✔️ Home Backup Power Systems
✔️ UPS Battery Banks
✔️ RV & Camper Power Systems
✔️ Portable Energy Storage Solutions
✔️ DIY Lithium Battery Projects
✔️ Industrial Energy Storage Applications
Why Choose JK Smart BMS?
✔️ Genuine JK Smart BMS Technology
✔️ Bluetooth Real-Time Monitoring
✔️ Active Balancing for Better Performance
✔️ Longer Battery Lifespan
✔️ Easy Configuration
Through Mobile App
✔️ Supports Multiple Battery Chemistries
✔️ Reliable Protection for High-Value Battery Packs
✔️ Ideal for Solar, UPS & Energy Storage Systems in Pakistan
Frequently Asked Questions
A: The JK-BD4A24S4P is a smart Battery Management System (BMS) designed for lithium battery packs. It provides battery protection, monitoring, cell balancing, and intelligent battery management.
A: The JK-BD4A24S4P is designed for battery packs with up to 24 cells in series (24S), depending on the supported battery chemistry and configuration.
A: The 4A refers to the BMS's active cell balancing capability, helping maintain more uniform voltage levels between individual cells.
A: 4P indicates the parallel configuration supported by the model, allowing multiple cells to be connected in parallel according to the battery design and BMS specifications.
A: The BMS can be used with compatible lithium battery chemistries such as LiFePO4, Lithium-Ion, and LTO, provided the cell voltage and BMS settings are configured correctly.
A: Yes. It features 4A active balancing, which transfers energy between cells to help maintain better cell voltage balance.
A: Active balancing helps reduce voltage differences between cells, improving battery pack balance, usable capacity, and overall battery performance.
A: Yes. It is designed to provide protection against conditions such as overcharge, over-discharge, over-current, short circuit, and abnormal temperature conditions, according to the configured protection parameters.
A: Yes, it can be suitable for lithium battery packs used in solar energy storage, inverter systems, backup power systems, and other energy-storage applications, when correctly configured.
A: Yes. The JK-BD4A24S4P can be used in compatible inverter battery systems. Communication compatibility should be checked before connecting it to a specific inverter.
A: Yes. It can be used for large lithium battery packs when the BMS current rating, cell configuration, wiring, and protection settings are appropriate for the application.
A: Yes. It can be used for custom lithium battery packs, provided the number of cells, battery chemistry, voltage range, current requirements, and BMS configuration are compatible.
A: It can be used in compatible electric vehicle and EV battery applications where the BMS voltage, current, balancing, and communication requirements match the battery system.
A: Yes. A smart JK BMS monitors individual cell voltages and overall battery voltage to help identify cell imbalance and abnormal battery conditions.
A: Yes. Proper installation is important for safe and reliable operation. Correct cell sequence, wiring, temperature sensors, current connections, and BMS settings should be verified before use.
A: Yes. The protection and operating parameters should be configured according to the specific battery chemistry, cell voltage range, and application requirements.
A: Typical applications include LiFePO4 battery packs, solar energy storage, inverter systems, UPS systems, backup power, EV applications, and custom lithium battery systems.
A: A BMS helps protect the battery from unsafe operating conditions while monitoring battery parameters and maintaining cell balance, contributing to safer and more reliable battery operation.
