JK Smart BMS 150A with 1A Active Balancer | 8S-24S LiFePO4, Lithium-Ion & LTO Battery Management System | EV Bike & Electric Vehicle Battery BMS | Bluetooth & RS485 Support
Rs 14,500
Govt Tax: +Rs 580.00(Govt Tax 4%)
JK Smart BMS 150A with 1A Active Balancer | 8S-24S LiFePO4, Lithium-Ion & LTO Battery Management System | EV Bike & Electric Vehicle Battery BMS | Bluetooth & RS485 Support
The JK-B1A24S15P Smart Active Balance BMS is a professional-grade Battery Management System designed for EV Bikes, Electric Vehicles, E-Rickshaws, Electric Scooters, and high-performance lithium battery packs
Featuring 1A Active Balancing, 150A continuous current, and 300A peak discharge current, this intelligent BMS delivers superior battery protection, longer battery life, and enhanced performance
Compatible with LiFePO4, Lithium-Ion, and LTO batteries, it supports 8S-24S
Tip: Scroll inside the gallery to browse all images.
Product Description
Short Description
The JK-B1A24S15P Smart Active Balance BMS is a professional-grade Battery Management System designed for EV Bikes, Electric Vehicles, E-Rickshaws, Electric Scooters, and high-performance lithium battery packs. Featuring 1A Active Balancing, 150A continuous current, and 300A peak discharge current, this intelligent BMS delivers superior battery protection, longer battery life, and enhanced performance. Compatible with LiFePO4, Lithium-Ion, and LTO batteries, it supports 8S-24S battery configurations, making it ideal for 24V, 48V, 60V, and 72V battery systems.
Key Highlights
✅ 150A Continuous Charge & Discharge Current
✅ 300A Peak Discharge Current
✅ 1A Active Balancing Technology
✅ Bluetooth App Monitoring
✅ RS485 Communication Support
✅ Supports 8S-24S Battery Packs
✅ Ideal for EV Bikes & Electric Vehicles
✅ Suitable for Electric Scooters & E-Rickshaws
✅ Supports 24V, 48V, 60V & 72V Battery Systems
✅ LiFePO4, Lithium-Ion & LTO Compatible
✅ Smart Battery Protection System
✅ Overcharge Protection
✅ Over-Discharge Protection
✅ Overcurrent Protection
✅ Short Circuit Protection
✅ Temperature Protection
Product Features
Perfect for EV Bike & Electric Vehicle Batteries
The JK-B1A24S15P is specially designed for:
* Electric Bike Battery Packs
* Electric Scooters
* Electric Motorcycles
* E-Rickshaws
* Custom EV Projects
* High-Power Lithium Battery
1A Active Balancing
The advanced 1A Active Balancer continuously transfers energy between cells, reducing voltage differences and extending battery lifespan.
Powerful 150A Output
Supports heavy loads for electric mobility and energy storage applications with stable and reliable performance.
300A Peak Discharge Capability
Handles high startup currents and acceleration loads required in EV Bikes, Electric Scooters, and Electric Vehicles.

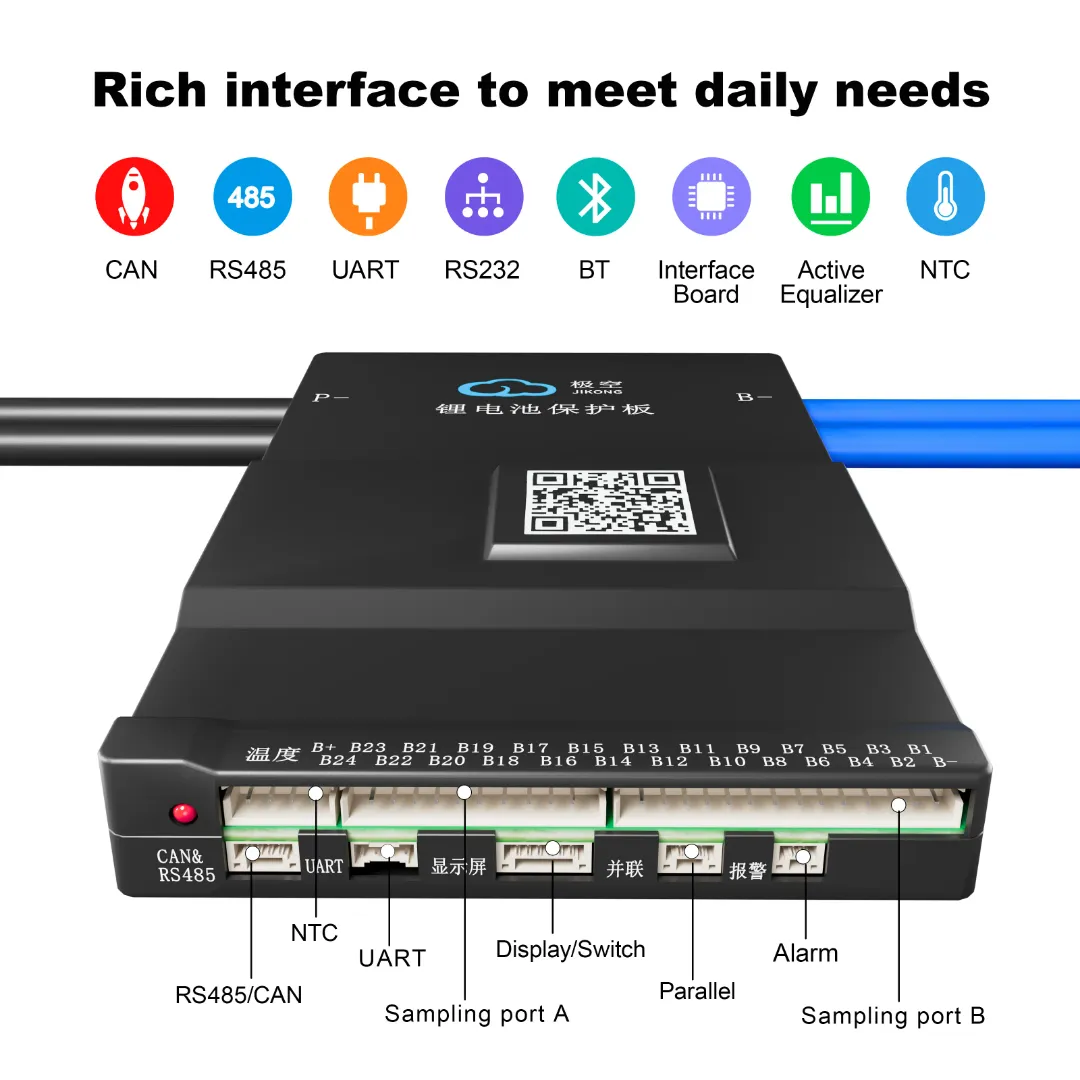

Bluetooth & RS485 Communication
Monitor battery performance through the JK mobile app and integrate with compatible monitoring systems via RS485.
Multi-Chemistry Compatibility Supports
* LiFePO4 Batteries
* Lithium-Ion Batteries
* LTO Batteries
Applications
✔️ EV Bike Battery Packs
✔️ Electric Vehicle (EV) Batteries
✔️ Electric Scooter Batteries
✔️ Electric Motorcycle Battery Packs
✔️ E-Rickshaw Battery Systems
✔️ 24V Lithium Battery Packs
✔️ 48V LiFePO4 Battery Packs
✔️ 60V EV Battery Systems
✔️ 72V Electric Bike Batteries
✔️ Solar Energy Storage Systems
✔️ UPS Backup Batteries
✔️ Industrial Energy Storage Projects
Frequently Asked Questions
The JK-B1A24S15P is a Smart Battery Management System (BMS) designed to monitor, manage, and protect compatible lithium battery packs. It supports 8S to 24S battery configurations, with a 150A continuous discharge rating and 1A active cell balancing.
The JK-B1A24S15P supports 8S to 24S battery configurations, making it suitable for battery packs with 8 to 24 cells connected in series, depending on the battery chemistry and required voltage.
Yes. An 8S LiFePO4 battery has a nominal voltage of approximately 25.6V, making the JK-B1A24S15P suitable for compatible 24V-class LiFePO4 battery systems.
Yes. A typical 16S LiFePO4 battery has a nominal voltage of approximately 51.2V. Since the JK-B1A24S15P supports 16S, it can be used for compatible 48V-class LiFePO4 battery systems.
Yes. Its 8S–24S range allows it to be used for various higher-voltage lithium battery configurations. The correct series cell count, battery chemistry, and BMS settings must be selected for the specific battery pack.
The JK-B1A24S15P is rated for 150A continuous discharge current. Actual safe operating current also depends on the battery cells, cables, terminals, connectors, temperature, and overall system design.
The 1A active balancing function helps reduce voltage differences between individual cells by transferring energy between cells. This helps maintain a more balanced battery pack.
Active balancing can help:
Reduce voltage differences between cells
Improve battery pack balance
Improve usable battery capacity
Maintain more consistent cell voltages
Improve overall battery performance
Support better long-term battery management
Yes. The JK-B1A24S15P can be used for compatible LiFePO4 battery applications, provided that the correct cell chemistry, series configuration, and BMS parameters are selected.
The BMS can be used in various compatible lithium battery applications, including:
LiFePO4 battery packs
Solar energy storage systems
Inverter batteries
Home energy storage
High-voltage lithium battery systems
EV and electric vehicle batteries
Custom lithium battery packs
Yes. It can be used in compatible solar energy storage and inverter battery systems. The 150A rating makes it suitable for many high-current applications when the battery cells, inverter, wiring, and other components are properly matched.
Yes, when the battery voltage and current requirements are compatible. The 8S–24S support makes it suitable for many higher-voltage EV and electric mobility battery configurations.
JK Smart BMS models may include Bluetooth monitoring and mobile app functionality depending on the exact model and version. Please verify the communication features of the specific product version before purchase.
The BMS is designed to monitor and protect compatible battery systems against abnormal conditions such as over-voltage, under-voltage, over-current, and temperature-related conditions, according to the configured parameters and product version.
Yes, it may be suitable for batteries with different Ah capacities. BMS selection should not be based only on battery capacity. The battery chemistry, series configuration, maximum charge/discharge current, and application requirements should also be considered.
No. The 1A active balancing current and 150A continuous discharge rating are separate specifications.
The 1A rating refers to the cell balancing function, while 150A refers to the BMS's rated continuous discharge capability.
The BMS supports 8S to 24S configurations. The actual battery voltage depends on the battery chemistry.
For LiFePO4 batteries, examples include:
8S = approximately 25.6V nominal
16S = approximately 51.2V nominal
20S = approximately 64V nominal
24S = approximately 76.8V nominal
Individual cells connected in series can develop differences in voltage and state of charge. Active balancing helps reduce these differences and allows the battery pack to operate more consistently.
Yes. It can be installed in a new compatible lithium battery pack. The battery chemistry, series cell count, current requirements, wiring, and BMS settings must be correctly matched.
The 150A rating represents the BMS's rated continuous discharge capability. However, the complete battery system must also be capable of safely supplying the required current. Battery cells, cables, connectors, terminals, temperature, and installation quality must all be considered.
The JK-B1A24S15P is suitable for users looking for a 150A Smart BMS with 1A active balancing and 8S–24S support for compatible lithium battery systems, including solar storage, inverter batteries, EV applications, and custom LiFePO4 battery packs.
The wide 8S–24S series range allows the BMS to be used with a broader range of battery pack voltages, from 24V-class systems to higher-voltage lithium battery configurations.
Before purchasing, provide:
Battery chemistry
Battery voltage
Number of cells in series
Battery Ah capacity
Maximum load current
Maximum charging current
Inverter or controller model
Application type
You can purchase the JK-B1A24S15P 150A 1A Active Balancer 8S–24S BMS from Voltpro Energy when the product is available.
Visit www.voltproenergy.com to check product availability, specifications, and purchasing information.
When purchasing, always verify the exact JK-B1A24S15P model, 150A current rating, 1A active balancing, and 8S–24S configuration to ensure compatibility with your lithium battery system.
