JK Smart BMS 100A with 0.6A Active Balancer | 8S-20S LiFePO4, Lithium-Ion & LTO Battery Management System | Bluetooth App & LCD Display Support | Electric Bike, 24V, 48V, 60V & 72V Battery Packs
Rs 10,500
Govt Tax: +Rs 420.00(Govt Tax 4%)
JK Smart BMS 100A with 0.6A Active Balancer | 8S-20S LiFePO4, Lithium-Ion & LTO Battery Management System | Bluetooth App & LCD Display Support | Electric Bike, 24V, 48V, 60V & 72V Battery Packs
The JK-BD6A20S10P Smart BMS is a high-performance Battery Management System designed for 8S-20S lithium battery packs
Featuring 0
6A Active Balancing, 100A continuous charge/discharge current, Bluetooth connectivity, and LCD display support, this intelligent BMS ensures superior battery protection, improved cell balancing, and longer battery life
Compatible with LiFePO4, Lithium-Ion, and LTO batteries, it is an excellent choice for building 24V, 48V, 60V, and 72V battery pac
Tip: Scroll inside the gallery to browse all images.
Product Description
Short Description
The JK-BD6A20S10P Smart BMS is a high-performance Battery Management System designed for 8S-20S lithium battery packs. Featuring 0.6A Active Balancing, 100A continuous charge/discharge current, Bluetooth connectivity, and LCD display support, this intelligent BMS ensures superior battery protection, improved cell balancing, and longer battery life. Compatible with LiFePO4, Lithium-Ion, and LTO batteries, it is an excellent choice for building 24V, 48V, 60V, and 72V battery packs used in solar energy storage, UPS systems, electric vehicles, and backup power solutions.
Ideal for Electric Vehicles
The JK-BD6A20S10P Smart BMS is an excellent choice for building Electric Bike, Electric Scooter, and E-Rickshaw battery packs. With 100A continuous current, active balancing technology, and advanced battery protection, it ensures reliable performance, improved safety, and longer battery life for EV applications.
Key Highlights
✅ 100A Continuous Charge & Discharge Current
✅ 0.6A Active Balancing Technology
✅ Supports 8S-20S Battery Packs
✅ Build 24V, 48V, 60V & 72V Battery Systems
✅ Bluetooth Mobile App Monitoring
✅ LCD Display Compatible
✅ Real-Time Battery Monitoring
✅ LiFePO4, Lithium-Ion & LTO Compatible
✅ Smart Battery Protection System
✅ Overcharge Protection
✅ Over-Discharge Protection
✅ Overcurrent Protection
✅ Short Circuit Protection
✅ Temperature Monitoring Support
✅ Improves Battery Performance & LifesSmart Active Balancing
The integrated 0.6A Active Balancer continuously equalizes cell voltages, reducing imbalance and helping maximize battery performance and lifespan.
Powerful 100A Output
Supports 100A continuous charging and discharging current, making it suitable for demanding solar, UPS, and lithium battery applications.
Wide Battery Configuration Support
Perfect for building:
* 24V LiFePO4 Battery Packs
* 48V LiFePO4 Battery Packs
* 60V Lithium Battery Packs
* 72V Lithium Battery Packs
* Custom Energy Storage Systems
Bluetooth Monitoring
View battery voltage, current, cell voltages, SOC, temperatures, and protection status directly through the JK mobile application.
LCD Display Support
Compatible with JK LCD displays for real-time battery monitoring and parameter configuration.
Comprehensive Protection System
Provides advanced battery protection including:
* Overcharge Protection
* Over-Discharge Protection
* Overcurrent Protection
* Short Circuit Protection
* High Temperature Protection
* Low Temperature Protection
* Cell Voltage Imbalance Protectionpan
Applications
✔️ 24V LiFePO4 Battery Packs
✔️ 48V LiFePO4 Battery Packs
✔️ 60V Lithium Battery Packs
✔️ 72V Lithium Battery Packs
✔️ Electric Bike Battery Packs
✔️ E-Rickshaw Battery Systems
✔️ Electric Scooter Batteries
✔️ Solar Energy Storage Systems
✔️ UPS Backup Batteries
✔️ RV & Camper Power Systems
✔️ Portable Power Stations
✔️ Industrial Energy Storage Projects

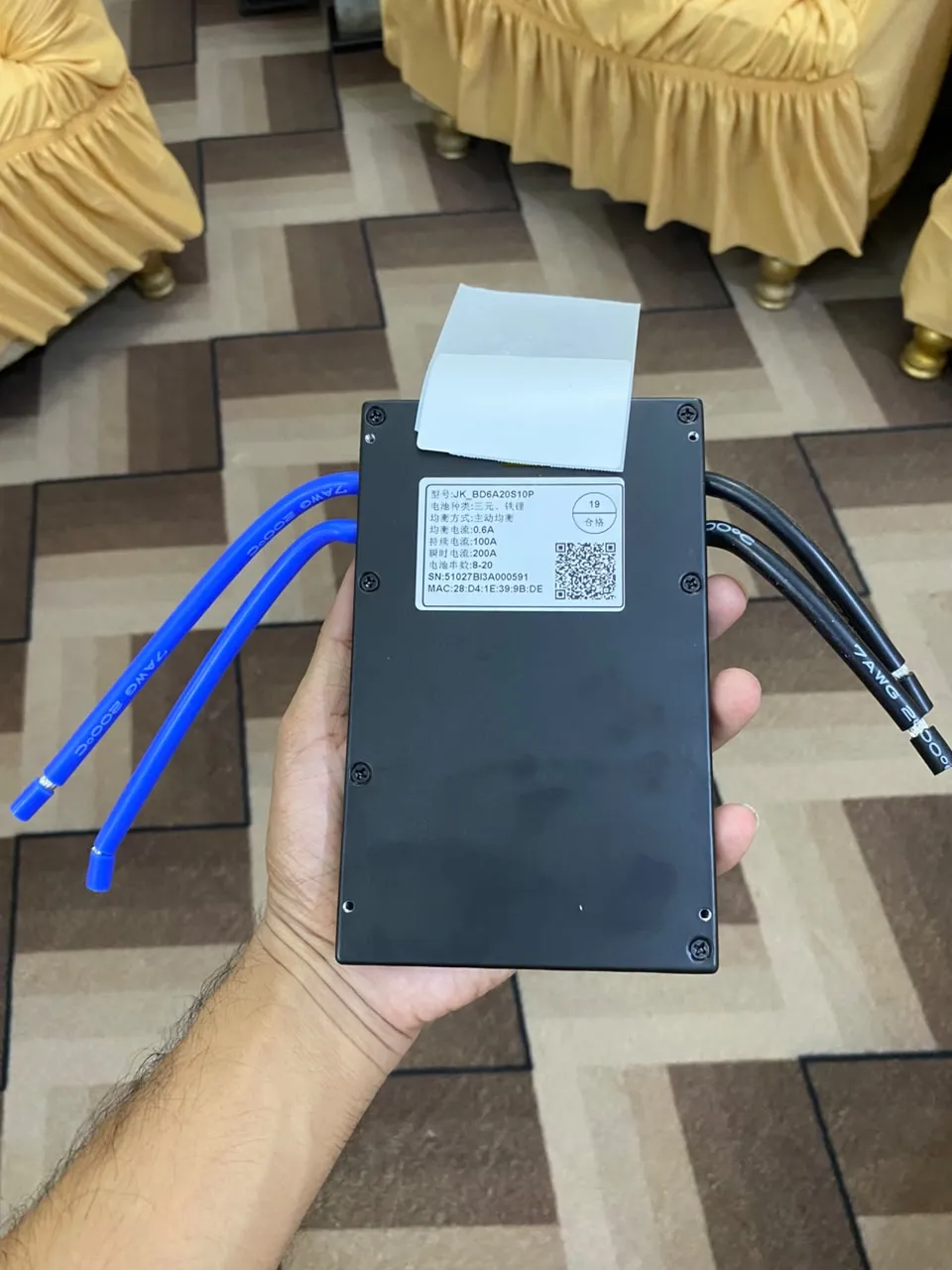

JK-BD6A20S10P Technical Specifications
Model: JK-BD6A20S10P
Battery Type: LiFePO₄ / Li-ion / LTO
Supported Cell Series: 8S–20S
Max Continuous Charge Current: 100A
Max Continuous Discharge Current: 100A
Active Balancing Current: 0.6A

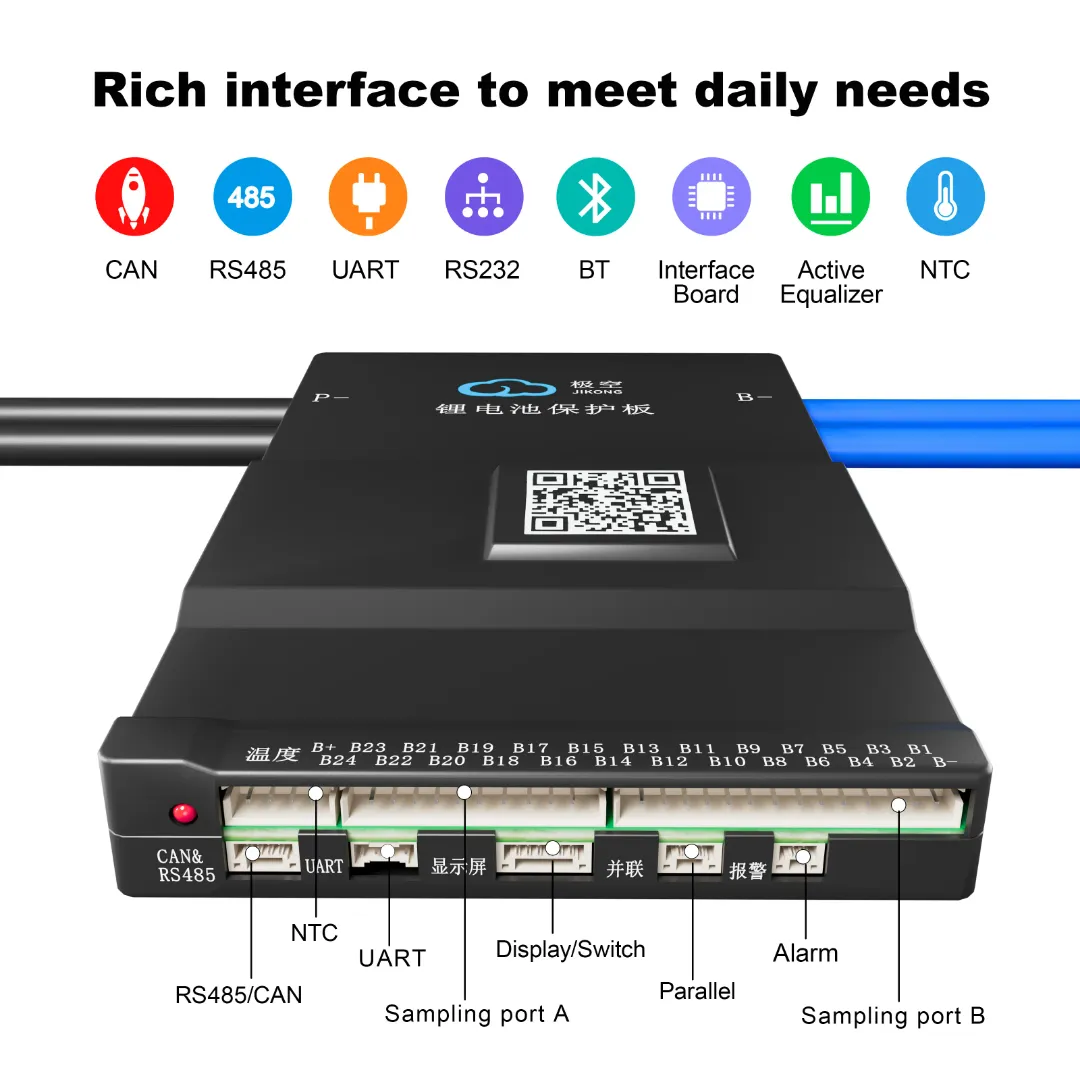

Communication: Bluetooth, RS485
Mobile App: Android & iOS
Frequently Asked Questions
The JK-BD6A20S10P is a Smart Battery Management System (BMS) designed to monitor, manage, and protect compatible lithium battery packs. It supports 8S to 20S battery configurations, with a 100A continuous discharge rating and 0.6A active cell balancing.
The JK-BD6A20S10P supports 8S to 20S battery configurations, making it suitable for battery packs with 8 to 20 cells connected in series, depending on the battery chemistry and required voltage.
Yes. An 8S LiFePO4 battery has a nominal voltage of approximately 25.6V, making the JK-BD6A20S10P suitable for compatible 24V-class LiFePO4 battery systems.
Yes. A typical 16S LiFePO4 battery has a nominal voltage of approximately 51.2V. Since the JK-BD6A20S10P supports 16S, it can be used for compatible 48V-class LiFePO4 battery systems.
Yes. Depending on the battery chemistry and series configuration, the 8S–20S support range allows this BMS to be used for various higher-voltage lithium battery packs.
The JK-BD6A20S10P is rated for 100A continuous discharge current. Actual safe operating current also depends on the battery cells, cables, connectors, terminals, temperature, and overall system design.
The 0.6A active balancing function helps reduce voltage differences between individual cells by transferring energy between cells. This helps maintain a more balanced battery pack.
The active balancing function can help:
Reduce voltage differences between cells
Improve battery pack balance
Improve usable battery capacity
Maintain more consistent cell voltages
Improve overall battery performance
Support better long-term battery management
Yes. The JK-BD6A20S10P can be used for compatible LiFePO4 battery applications, provided that the correct battery chemistry, series configuration, and BMS parameters are selected.
The BMS can be used in various compatible lithium battery applications, including:
LiFePO4 battery packs
Solar energy storage systems
Inverter batteries
Home energy storage
Higher-voltage lithium battery systems
EV and electric vehicle batteries
Custom lithium battery packs
Yes. It can be used in compatible solar energy storage and inverter battery systems where the required continuous current is within the 100A BMS rating.
Yes, where the battery voltage and current requirements are compatible. The 8S–20S support range makes it suitable for various higher-voltage electric mobility and custom lithium battery applications.
JK Smart BMS models may include Bluetooth monitoring and mobile app functionality depending on the exact model and version. Please verify the communication features of the specific product version before purchase.
The BMS is designed to monitor and protect compatible battery systems against abnormal conditions such as over-voltage, under-voltage, over-current, and temperature-related conditions, according to the configured parameters and product version.
Yes, it can be suitable for a 100Ah lithium battery, depending on the battery's required charge and discharge current. BMS selection should consider battery chemistry, cell configuration, maximum current, and application requirements.
No. The 0.6A active balancing current and 100A continuous discharge rating are separate specifications.
The 0.6A rating refers to the active cell balancing function, while 100A refers to the BMS's rated continuous discharge capability.
The BMS supports 8S to 20S configurations.
For LiFePO4 batteries, examples include:
8S = approximately 25.6V nominal
16S = approximately 51.2V nominal
20S = approximately 64V nominal
Individual cells connected in series can develop differences in voltage and state of charge. Active balancing helps reduce these differences by transferring energy between cells, helping the battery pack operate more consistently.
The appropriate balancing current depends on the cell capacity, cell matching, battery configuration, and application. The 0.6A active balancing of the JK-BD6A20S10P is suitable for compatible battery packs where this balancing level meets the application's requirements.
Yes. It can be installed in a new compatible lithium battery pack. The battery chemistry, series cell count, current requirements, wiring, and BMS settings must be correctly matched.
The 100A rating represents the BMS's rated continuous discharge capability. However, the complete battery system must also be capable of safely supplying the required current. Battery cells, cables, connectors, terminals, temperature, and installation quality must all be considered.
The JK-BD6A20S10P is suitable for users looking for a 100A Smart BMS with 0.6A active balancing and 8S–20S support for compatible lithium battery systems, including solar storage, inverter batteries, EV applications, and custom LiFePO4 battery packs.
Both models support 8S–20S configurations and provide 0.6A active balancing. The main difference is the continuous discharge rating:
JK-BD6A20S6P: 60A / 0.6A Active Balancing
JK-BD6A20S10P: 100A / 0.6A Active Balancing
The JK-BD6A20S10P is designed for applications requiring a higher continuous current rating.
Before purchasing, provide:
Battery chemistry
Battery voltage
Number of cells in series
Battery Ah capacity
Maximum load current
Maximum charging current
Inverter or controller model
Application type
You can purchase the JK-BD6A20S10P 100A 0.6A Active Balancer 8S–20S BMS from Voltpro Energy, subject to product availability.
Visit www.voltproenergy.com to check product availability, specifications, and purchasing information.
When purchasing, always verify the exact JK-BD6A20S10P model, 100A current rating, 0.6A active balancing, and 8S–20S configuration to ensure compatibility with your lithium battery system.
