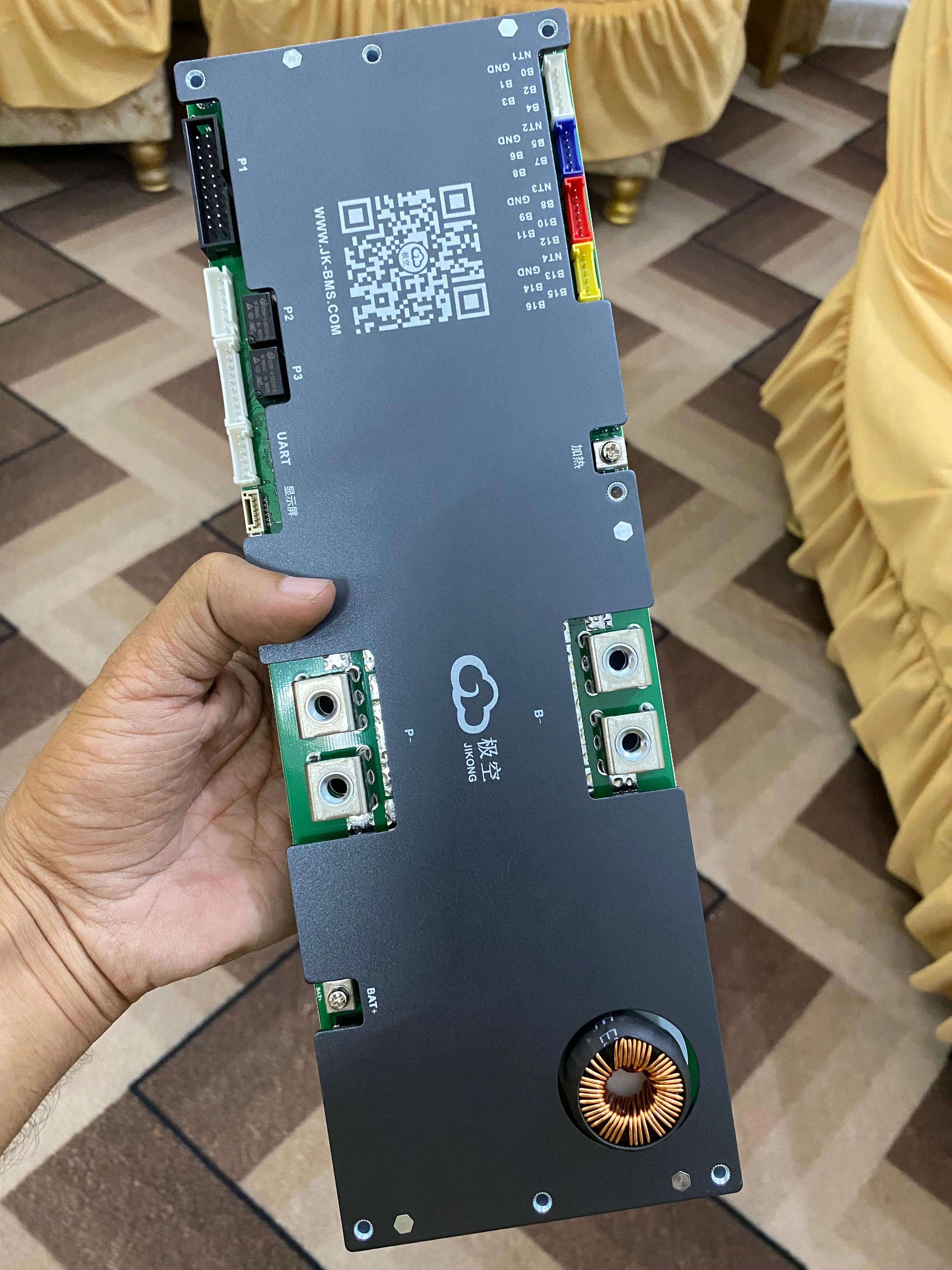

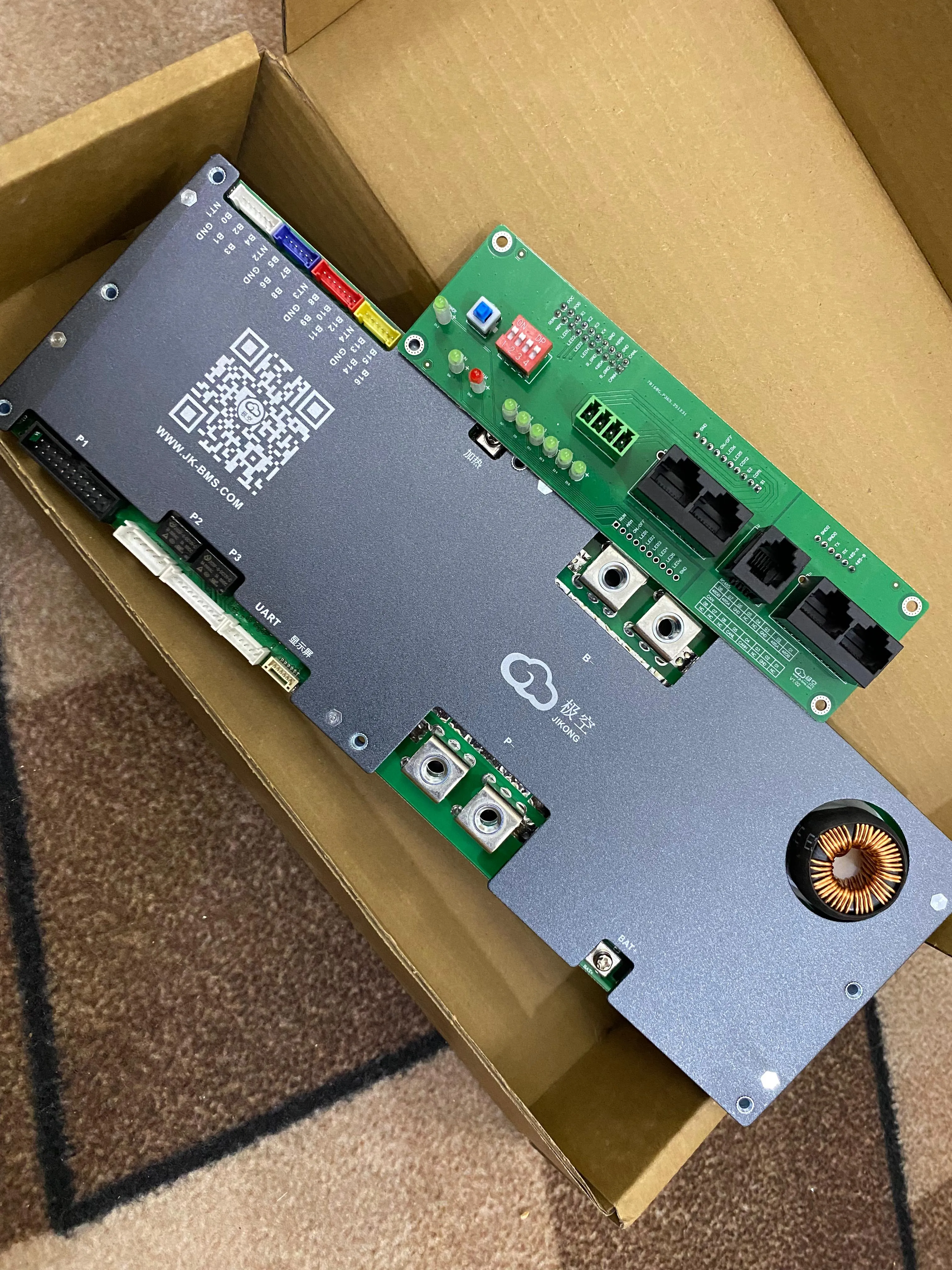

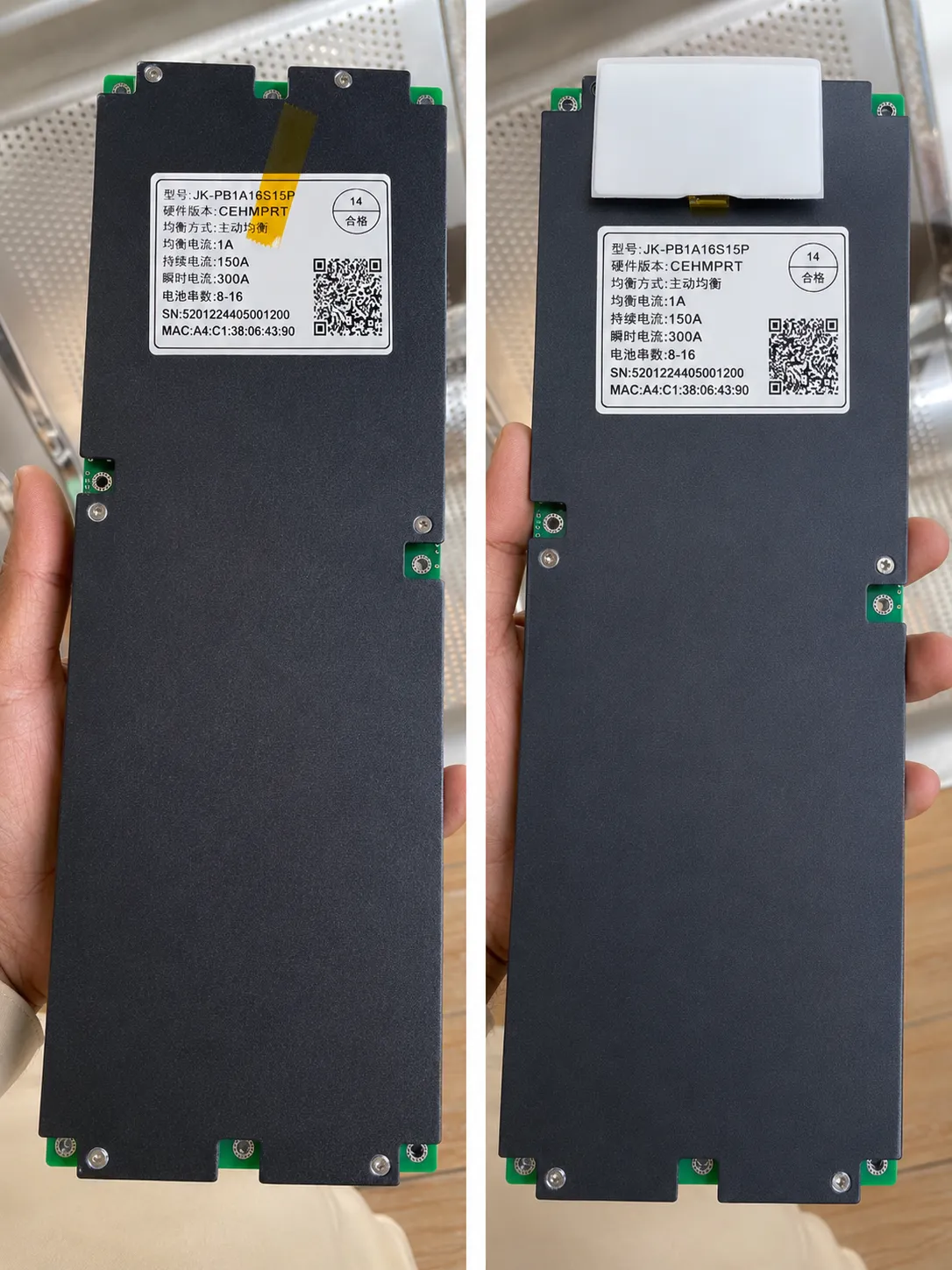

JK-PB1A16S15P Inverter BMS 150A with 1A Active Balancer | 8S-16S LiFePO4, Lithium-Ion & LTO Battery Management System | CAN, RS485, RS232 & Bluetooth Support | V19 Version
Rs 19,500
Govt Tax: +Rs 780.00(Govt Tax 4%)
JK-PB1A16S15P Inverter BMS 150A with 1A Active Balancer | 8S-16S LiFePO4, Lithium-Ion & LTO Battery Management System | CAN, RS485, RS232 & Bluetooth Support | V19 Version
The JK-PB1A16S15P V19 Smart Inverter BMS is a professional battery management solution designed for solar energy storage systems, inverter batteries, UPS backup systems, and lithium battery packs
Equipped with 1A Active Balancing, 150A continuous current, and advanced communication options including Bluetooth, CAN, RS485, and RS232, this BMS delivers intelligent battery protection, accurate balancing, and seamless inverter communication
Compatible with LiFePO4, Lithium-Ion,
Tip: Scroll inside the gallery to browse all images.
Product Description
Short Description
The JK-PB1A16S15P V19 Smart Inverter BMS is a professional battery management solution designed for solar energy storage systems, inverter batteries, UPS backup systems, and lithium battery packs. Equipped with 1A Active Balancing, 150A continuous current, and advanced communication options including Bluetooth, CAN, RS485, and RS232, this BMS delivers intelligent battery protection, accurate balancing, and seamless inverter communication.
Compatible with LiFePO4, Lithium-Ion, and LTO batteries, it supports 8S-16S battery configurations, making it ideal for 24V and 48V battery systems
Key Highlights
✅ 150A Continuous Charge & Discharge Current
✅ 1A Active Balancing Technology
✅ V19 Latest Version
✅ Inverter Communication Ready
✅ Bluetooth App Monitoring
✅ CAN Bus Communication
✅ RS485 Communication
✅ RS232 Communication
✅ Heating Function Support
✅ Supports 8S-16S Battery Packs
✅ Compatible with LiFePO4, Lithium-Ion & LTO Batteries
✅ Real-Time Battery Monitoring
✅ Smart Battery Protection System
✅ Long Battery Life & Better Performance
Product Features
Advanced Active Balancing
The built-in 1A Active Balancer continuously transfers energy between cells, reducing voltage differences and improving overall battery performance.
Designed for Inverter Systems
Perfectly suited for:
* Solar Inverters
* Hybrid Inverters
* UPS Systems
* Energy Storage Systems
* Backup Power Solutions
Multiple Communication Protocols
Supports:
* Bluetooth
* CAN Bus
* RS485
* RS232
for seamless monitoring and inverter communication.
Smart Protection Functions
Protects batteries from:
* Overcharge
* Over-Discharge
* Overcurrent
* Short Circuit
* Over Temperature
* Cell Imbalance
Mobile App Monitoring
Monitor battery voltage, current, cell voltages, temperature, SOC, alarms, and charging status directly from your smartphone.
Applications
✔️ 24V LiFePO4 Battery Packs
✔️ 48V LiFePO4 Battery Packs
✔️ Solar Energy Storage Systems
✔️ Hybrid Inverter Systems
✔️ Off-Grid Solar Systems
✔️ UPS Backup Batteries
✔️ Home Energy Storage
✔️ Commercial Energy Storage
✔️ Telecom Backup Power Systems
✔️ Industrial Battery Banks
Frequently Asked Questions
The JK-PB1A16S15P is a Smart Battery Management System (BMS) designed to monitor, manage, and protect compatible lithium battery packs. It supports 8S to 16S battery configurations, with a 150A current rating and 1A active cell balancing.
The JK-PB1A16S15P supports 8S to 16S battery configurations, making it suitable for lithium battery packs with 8 to 16 cells connected in series.
Yes. An 8S LiFePO4 battery has a nominal voltage of approximately 25.6V, making the JK-PB1A16S15P suitable for compatible 24V-class LiFePO4 battery systems.
Yes. A typical 16S LiFePO4 battery has a nominal voltage of approximately 51.2V. Since the JK-PB1A16S15P supports up to 16S, it can be used for compatible 48V-class LiFePO4 battery systems.
The JK-PB1A16S15P is rated at 150A. Actual safe operating current depends on the battery cells, busbars, cables, connectors, terminals, temperature, and complete system design.
The 1A active balancing function transfers energy between individual cells to help reduce voltage differences and maintain better balance across the battery pack.
The 1A active balancing function can help:
Reduce voltage differences between cells
Improve battery pack balance
Improve usable battery capacity
Maintain more consistent cell voltages
Improve overall battery performance
Support better long-term battery management
Yes. The JK-PB1A16S15P can be used for compatible LiFePO4 battery applications, provided that the correct battery chemistry, series configuration, and BMS parameters are selected.
Depending on the specific BMS configuration and product version, the JK-PB series can support compatible lithium battery chemistries such as LiFePO4, Lithium-ion, and LTO. The BMS must be correctly configured for the selected battery chemistry.
The BMS can be used in compatible applications such as:
LiFePO4 battery packs
Solar energy storage systems
High-power inverter batteries
Home energy storage
24V and 48V battery systems
EV and electric vehicle batteries
Electric mobility applications
Custom lithium battery packs
Yes. It can be used in compatible solar energy storage and inverter battery systems where the required current is within the BMS rating and the complete battery system is correctly designed.
Yes, provided the battery voltage, chemistry, and current requirements are compatible. The 8S–16S range and 150A current rating make it suitable for various high-current 24V and 48V-class electric mobility applications.
The JK-PB series is designed for applications where BMS-to-inverter communication may be required. Available communication protocols and supported inverter compatibility depend on the exact BMS version and configuration. Always verify compatibility before purchase.
JK Smart BMS models may include Bluetooth monitoring and mobile app functionality depending on the exact product version. Please verify the communication features of the specific unit before purchase.
The BMS is designed to monitor and protect compatible battery systems against abnormal conditions such as over-voltage, under-voltage, over-current, short circuit, and temperature-related conditions, according to the configured parameters and product version.
Yes, it can be suitable for a 150Ah lithium battery, depending on the battery's required charge and discharge current. The battery cells and complete system must also be capable of safely handling the required current.
No. The 1A active balancing current and 150A current rating are separate specifications.
The 1A rating refers to the active cell balancing function, while 150A refers to the BMS's rated current capability.
The BMS supports 8S to 16S configurations.
For LiFePO4 batteries, examples include:
8S = approximately 25.6V nominal
16S = approximately 51.2V nominal
Individual cells connected in series can develop differences in voltage and state of charge. Active balancing transfers energy between cells to help reduce these differences and maintain a more balanced battery pack.
Yes. 1A active balancing provides a higher balancing capability than lower-current balancing systems. The appropriate balancing current still depends on cell capacity, cell matching, battery configuration, and application requirements.
Yes. It can be installed in a compatible new lithium battery pack. The battery chemistry, series cell count, current requirements, wiring, busbars, and BMS settings must be correctly matched.
The 150A rating represents the BMS's rated current capability. However, the complete battery system must also be designed to safely supply the required current.
For high-current applications, the battery cells, busbars, cables, terminals, connectors, fuses, and temperature management should all be appropriately rated.
The JK-PB1A16S15P is suitable for users looking for a 150A Smart BMS with 1A active balancing and 8S–16S support for compatible high-current lithium battery systems, including solar storage, high-power inverter batteries, EV applications, and custom LiFePO4 battery packs.
Both models support 8S–16S battery configurations and provide 1A active balancing. The main difference is the current rating:
JK-PB1A16S10P: 100A / 1A Active Balancing
JK-PB1A16S15P: 150A / 1A Active Balancing
The JK-PB1A16S15P is designed for applications requiring a higher current rating.
You can purchase the JK-PB1A16S15P 150A 1A Active Balancer 8S–16S BMS from Voltpro Energy, subject to product availability.
Visit www.voltproenergy.com to check product availability, specifications, and purchasing information.
When purchasing, always verify the exact JK-PB1A16S15P model, 150A current rating, 1A active balancing, and 8S–16S configuration to ensure compatibility with your lithium battery system.
