8V 200Ah LiFePO4 Lithium Battery is a high-performance deep-cycle energy storage battery designed for solar systems, inverter backup, UPS, home backup and off-grid applications
Built with EVE Grade A LiFePO4 cells, a JK B2A8S20P Smart BMS, 2A active cell balancing, Bluetooth monitoring and a 3
2-inch JK LCD display, this battery delivers reliable performance, advanced protection and convenient real-time monitoring
With 2560Wh (2
Tip: Scroll inside the gallery to browse all images.
Product Description
Short Description

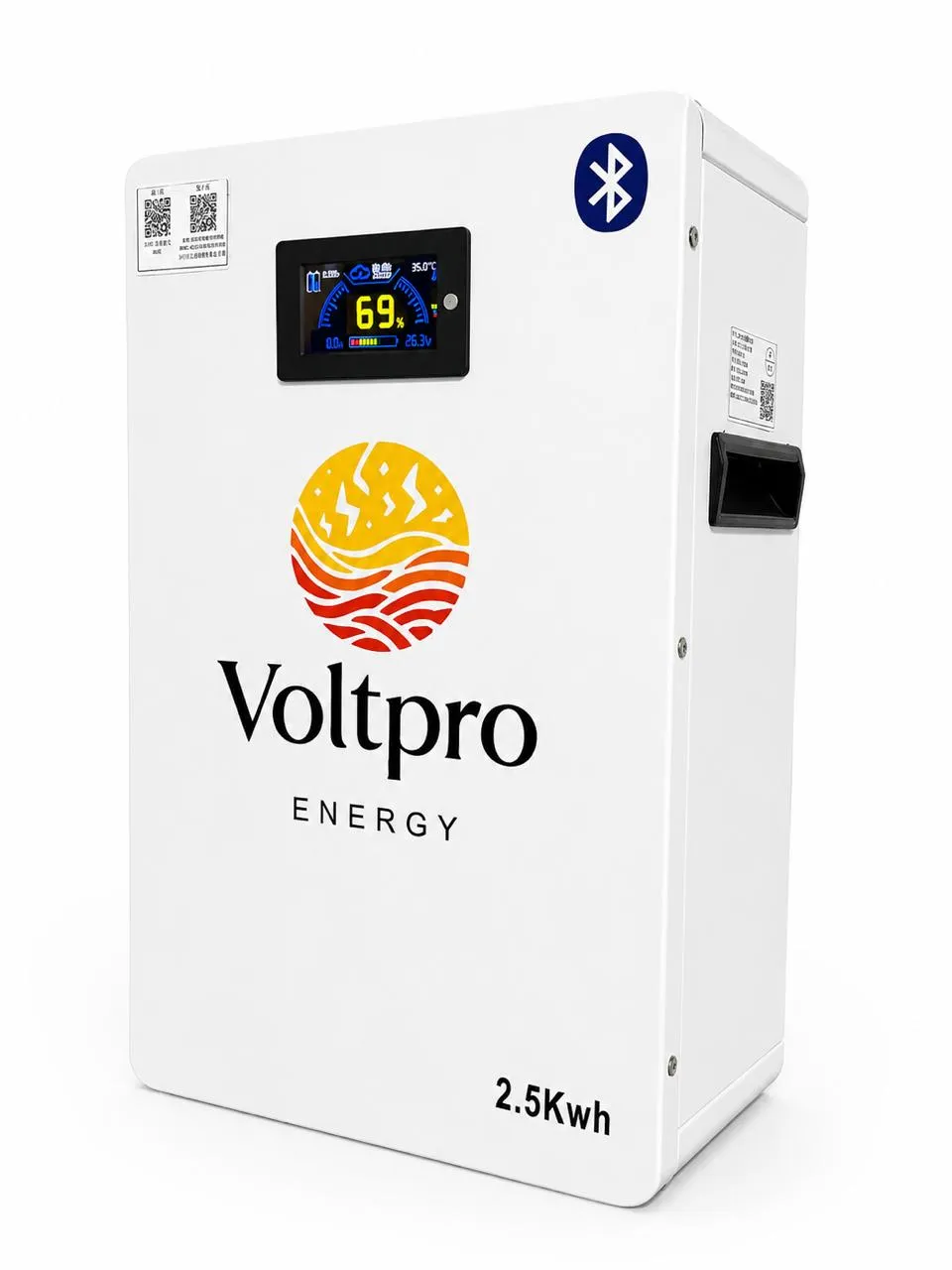

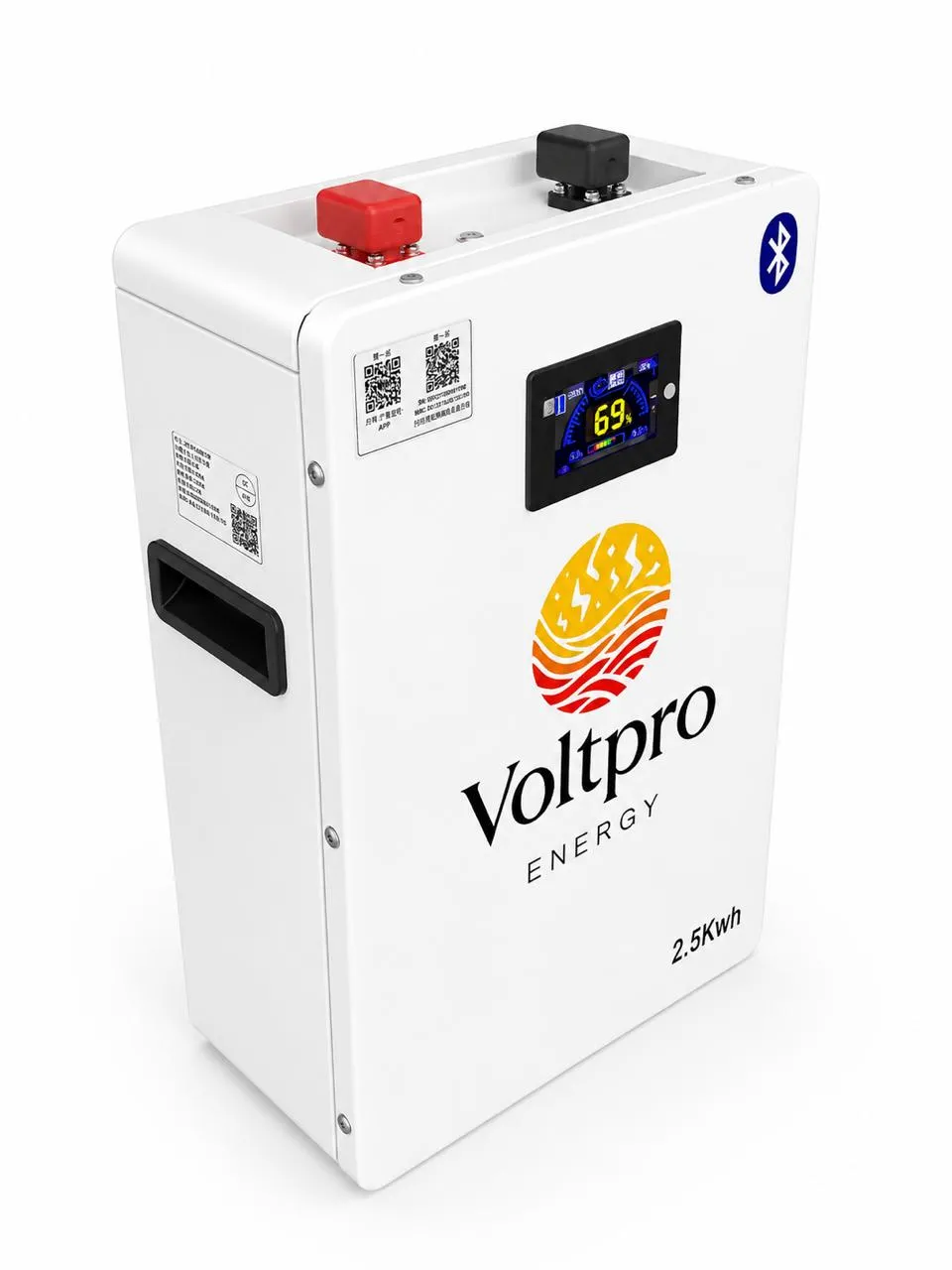

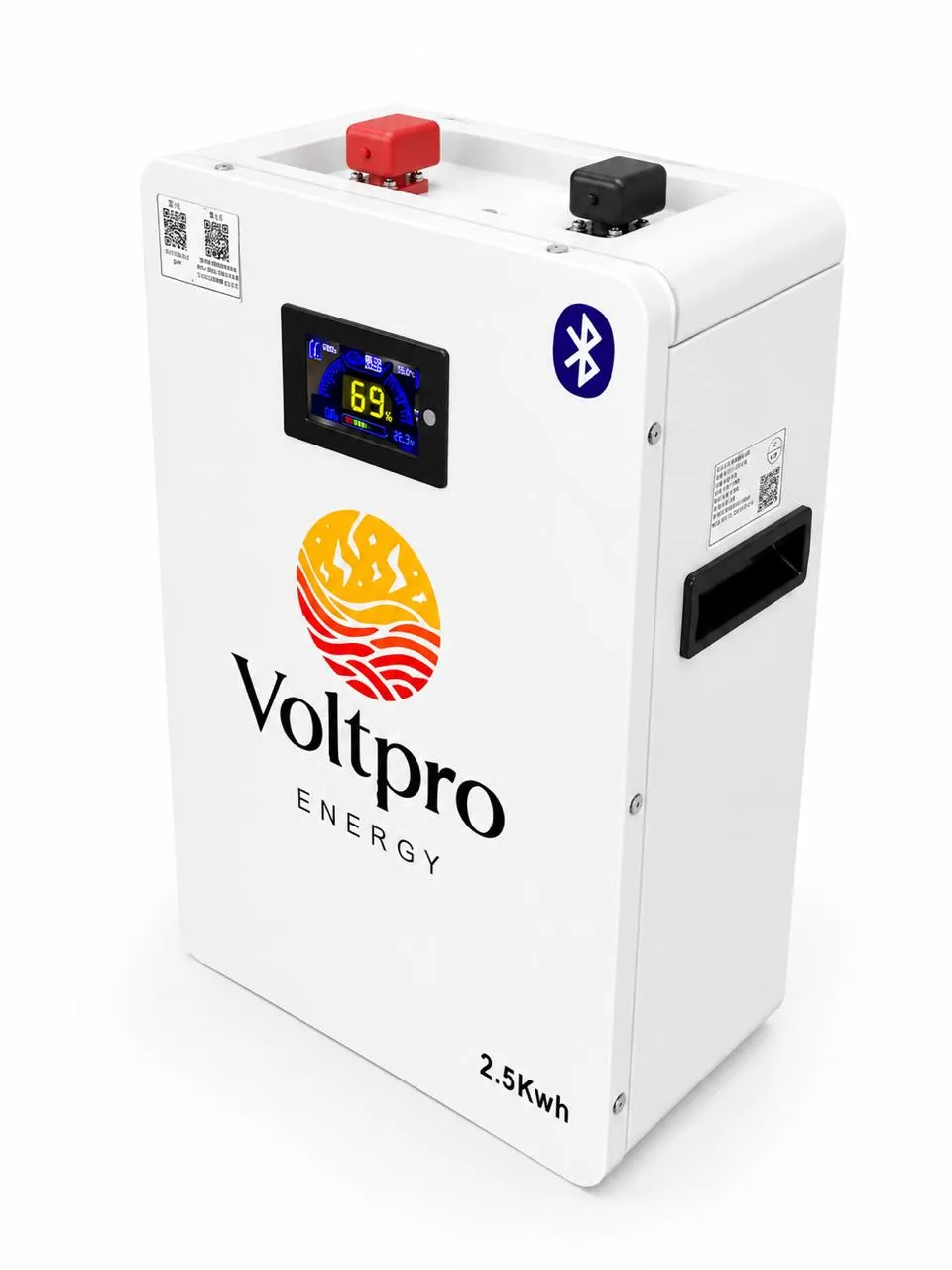

The Voltpro Energy 12.8V 200Ah LiFePO4 Lithium Battery is a high-performance deep-cycle energy storage battery designed for solar systems, inverter backup, UPS, home backup and off-grid applications.
Built with EVE Grade A LiFePO4 cells, a JK B2A8S20P Smart BMS, 2A active cell balancing, Bluetooth monitoring and a 3.2-inch JK LCD display, this battery delivers reliable performance, advanced protection and convenient real-time monitoring.
With 2560Wh (2.56kWh) nominal energy capacity, a 200A continuous discharge rating, 350A peak discharge capability and a durable 16-gauge powder-coated wall-mounted metal enclosure, it is designed for demanding daily energy-storage applications.
Product Description
The Voltpro Energy 12.8V 200Ah LiFePO4 Battery is a premium deep-cycle lithium battery engineered for reliable and long-lasting energy storage.
Using EVE Grade A LiFePO4 cells, the battery offers excellent efficiency, safety and long service life. With a rated cycle life of approximately 6000 cycles, it is designed for repeated daily charging and discharging in solar and backup power applications.
The battery is equipped with a JK B2A8S20P Smart BMS, providing a 200A current rating and 2A active cell balancing. The active balancing technology helps maintain better voltage balance between individual cells, supporting consistent performance and efficient utilization of the battery capacity.
For convenient monitoring, the battery includes a 3.2-inch JK LCD display and Bluetooth monitoring, allowing users to check important battery parameters and operating status.
The battery is housed in a heavy-duty 16-gauge powder-coated metal wall-mounted enclosure, providing a strong and professional solution for fixed home, solar and energy-storage installations.
With approximately 2.56kWh of nominal energy, this battery is an excellent choice for customers looking for a high-capacity 12V LiFePO4 battery for solar, inverter and backup power applications.
Key Features
12.8V 200Ah LiFePO4 Lithium Battery
2560Wh / 2.56kWh Energy Capacity
EVE Grade A LiFePO4 Cells
6000 Cycle Life
JK B2A8S20P Smart BMS
200A BMS Rating
2A Active Cell Balancing
200A Continuous Discharge
350A Peak Discharge
200A Maximum Charging Current
3.2-Inch JK LCD Display
Bluetooth Battery Monitoring
200A High-Current Battery Terminals
Heavy-Duty 16-Gauge Metal Enclosure
Powder-Coated Finish
Wall-Mounted Design
Approximately 23.5kg Weight
5-Year Warranty
Maintenance-Free LiFePO4 Technology
Designed for Deep-Cycle Daily Use
Product Highlights
🔋 EVE Grade A LiFePO4 Cells
Built using premium EVE Grade A LiFePO4 cells for reliable performance, excellent efficiency and long service life.
⚡ 200A High-Current Performance
The battery features a 200A BMS and 200A continuous discharge capability, making it suitable for high-power inverter and energy-storage applications.
🔄 2A Active Cell Balancing
The JK Smart BMS uses 2A active balancing to help maintain better voltage balance between individual cells and optimize battery performance.
📱 Bluetooth Monitoring
Monitor important battery parameters conveniently through Bluetooth-enabled JK BMS monitoring.
🖥️ 3.2-Inch JK LCD Display
The integrated 3.2-inch LCD display provides convenient access to battery operating information.
🛡️ Heavy-Duty Metal Enclosure
The battery is housed in a 16-gauge heavy-duty metal box with a professional powder-coated finish.
🏠 Wall-Mounted Design
The wall-mounted enclosure provides a neat and organized installation solution for home and energy-storage systems.
🔋 6000 Cycle Life
Designed for long-term deep-cycle use with a specified life of approximately 6000 cycles under suitable operating conditions.
Backup Performance
The Voltpro Energy 12.8V 200Ah LiFePO4 Battery provides approximately 2.56kWh of nominal energy capacity.
Example Backup Configuration
With a full charge, the battery can provide approximately 8.5 hours of backup for the following specified load:
4 × AC/DC Fans
Approximately 50W per fan
Fans operating at Full-Speed Turbo Mode
5 × LED Bulbs
Approximately 18W per LED bulb
Total specified load: approximately 290W
Approximate backup time: 8.5 hours
Note: Actual backup time may vary depending on the actual appliance wattage, inverter efficiency, battery condition, temperature, wiring losses and other connected loads.
Technical Specifications
Specification Details
Brand Voltpro Energy
Battery Type LiFePO4 / Lithium Iron Phosphate
Nominal Voltage 12.8V
Marketed Voltage 12V
Capacity 200Ah
Energy Capacity 2560Wh / 2.56kWh
Cell Brand EVE
Cell Grade Grade A
Cycle Life 6000 Cycles
BMS Model JK B2A8S20P
BMS Current Rating 200A
Active Balancing 2A
Continuous Discharge 200A
Peak Discharge 350A
Maximum Charging Current 200A
Recommended Full Charge Voltage 14.6V
LCD Display JK 3.2-Inch
Bluetooth Monitoring Yes
Terminal Rating 200A
Enclosure 16-Gauge Heavy-Duty Metal
Enclosure Finish Powder Coated
Installation Wall Mounted
Weight Approximately 23.5kg
Series Connection Not Supported
Parallel Connection Not Supported
Warranty 5 Years
Applications
The Voltpro Energy 12.8V 200Ah LiFePO4 Battery is suitable for:
☀️ Solar Energy Storage Systems
🏠 Home Backup Power
⚡ Inverter Systems
🔌 UPS Systems
🏕️ Camping & Outdoor Power
🚐 RV & Camper Applications
🚤 Marine Applications
🔋 Off-Grid Energy Systems
📡 Telecom Backup Systems
💡 Emergency Backup Power
🏢 Small Commercial Energy Storage
🔧 DIY Energy Storage Projects
Why Choose Voltpro Energy 12.8V 200Ah LiFePO4 Battery?
Premium Cells: EVE Grade A LiFePO4 cells
Smart Protection: JK B2A8S20P Smart BMS
Advanced Balancing: 2A Active Cell Balancing
Monitoring: 3.2-inch JK LCD + Bluetooth
High Current: 200A continuous discharge
Long Life: 6000 cycles
Strong Enclosure: 16-gauge powder-coated metal box
Installation: Wall-mounted design
Warranty: 5 Years
Energy: 2.56kWh nominal capacity
Package Includes
1 × Voltpro Energy 12.8V 200Ah LiFePO4 Battery
1 × Built-in JK B2A8S20P Smart BMS
1 × JK 3.2-Inch LCD Display
1 × Integrated Bluetooth Monitoring
1 × 200A Battery Terminal System
1 × Wall-Mounted Metal Battery Enclosure
Installation hardware/accessories as applicable
Warranty
5-Year Warranty
Voltpro Energy provides a 5-year warranty on this battery, subject to the applicable warranty terms and conditions.
Wholesale Pricing in Pakistan
Voltpro Energy offers competitive wholesale pricing on LiFePO4 batteries in Pakistan.
For bulk orders, dealers, solar installers and distributors, contact Voltpro Energy for the latest wholesale price, stock availability and bulk-order quotation.
We recommend comparing cell quality, BMS specification, balancing current, enclosure quality, warranty and overall battery specifications rather than comparing price alone.
Frequently Asked Questions
The Voltpro Energy 12.8V 200Ah LiFePO4 Battery is a high-capacity deep-cycle lithium battery designed for solar systems, inverter backup, UPS systems, home energy storage and other backup power applications. It features EVE Grade A LiFePO4 cells, a JK Smart BMS, 2A active balancing, Bluetooth monitoring and a 3.2-inch JK LCD display.
The battery is marketed as a 12V battery, with an actual nominal voltage of approximately 12.8V, which is standard for a 4S LiFePO4 battery configuration.
The battery has a rated capacity of 200Ah and approximately 2.56kWh (2560Wh) of nominal energy capacity.
The battery uses EVE Grade A LiFePO4 cells, selected for reliable performance, high efficiency and long cycle life.
The battery is specified for approximately 6000 cycles under suitable operating conditions. Actual cycle life depends on factors such as depth of discharge, charging and discharging current, temperature and operating conditions.
The battery features a JK Smart BMS, model B2A8S20P.
The installed BMS has a 200A current rating, making the battery suitable for high-current applications when the complete system is properly designed.
The JK BMS provides 2A active cell balancing to help maintain better voltage balance between individual battery cells.
Active balancing helps reduce voltage differences between cells, improve battery balance, maximize usable capacity and support consistent battery performance.
The specified continuous discharge current is 200A.
The battery supports a specified peak discharge current of up to 350A for short-duration high-current requirements. Peak current should not be considered the continuous operating rating.
The specified maximum charging current is 200A. The actual charging current should be selected according to the charger, BMS settings and battery operating requirements.
For this 12.8V LiFePO4 battery, the appropriate full-charge voltage is typically 14.6V using a charger specifically designed for 4S LiFePO4 batteries.
Yes. The battery includes a 3.2-inch JK Smart LCD display for convenient battery monitoring.
Depending on the BMS configuration, the display can provide information such as battery voltage, current, SOC, cell voltage, temperature, charging/discharging status and protection information.
Yes. The JK Smart BMS supports Bluetooth monitoring, allowing users to monitor important battery parameters through a compatible mobile application.
The battery provides approximately 2560Wh (2.56kWh) of nominal energy, calculated from 12.8V × 200Ah.
With a full charge, the Voltpro Energy 12.8V 200Ah LiFePO4 Battery can provide approximately 8.5 hours of backup while running 4 AC/DC fans at full-speed Turbo Mode and 5 LED bulbs.
The specified backup configuration is:
4 × AC/DC fans
Fan consumption: approximately 50W each
Total fan load: approximately 200W
5 × LED bulbs
Bulb consumption: 18W each
Total LED load: approximately 90W
Total connected load: approximately 290W
The stated backup time is approximately 8.5 hours on a full charge, subject to inverter efficiency, actual appliance consumption, battery condition and operating conditions.
Yes. Based on the specified backup configuration, the battery is designed to support 4 AC/DC fans at full-speed Turbo Mode, along with 5 LED bulbs, for approximately 8.5 hours under the stated conditions.
Yes. The specified backup configuration includes 5 LED bulbs rated at approximately 18W each, together with 4 AC/DC fans.
The 8.5-hour figure is an approximate backup estimate based on the specified load. Actual backup time can vary depending on fan speed and actual wattage, bulb consumption, inverter efficiency, battery temperature, battery condition and other connected loads.
Yes. The Voltpro Energy 12.8V 200Ah LiFePO4 Battery is suitable for compatible solar energy storage systems and can be paired with an appropriate solar charge controller or inverter.
Yes. It can be used with a compatible 12V-class inverter. The inverter's maximum power, DC input current and lithium battery charging requirements should be checked before installation.
Yes. The battery is suitable for compatible UPS and backup power systems, offering long cycle life and low-maintenance operation compared with conventional lead-acid batteries.
Yes. It is designed for home backup applications, including fans, LED lighting, networking equipment, electronics and other compatible loads within the system's power limits.
Yes. Its LiFePO4 chemistry and approximately 6000-cycle specification make it suitable for regular charging and discharging applications such as daily solar energy storage.
Yes. It is suitable for compatible off-grid solar systems, backup power systems and energy-storage applications.
The battery is housed in a high-quality 16-gauge metal enclosure designed for strength and durability.
Yes. The metal enclosure features a powder-coated finish, providing a durable and professional exterior for the battery.
Yes. The battery is designed in a wall-mounted metal box configuration, making it suitable for organized installation in appropriate locations.
The battery weighs approximately 23.5 kg.
The battery is equipped with a 200A-rated terminal, suitable for high-current battery connections when used with appropriately rated cables and connectors.
According to the specified product configuration, series and parallel connection is not supported. The battery should therefore be operated as a standalone 12.8V 200Ah battery unless Voltpro Energy specifically confirms otherwise.
Yes. LiFePO4 batteries require significantly less routine maintenance than traditional lead-acid batteries and do not require regular electrolyte watering.
Suitable applications include:
Solar Energy Storage
Home Backup Power
Inverter Systems
UPS Systems
Emergency Backup
Off-Grid Power
Camping and Outdoor Power
RV Applications
Telecom Backup
Energy Storage Systems
DIY Lithium Battery Projects
LiFePO4 technology offers advantages including longer cycle life, higher energy efficiency, faster charging capability, lower maintenance and significantly lighter weight compared with many conventional lead-acid battery solutions.
The Voltpro Energy 12.8V 200Ah LiFePO4 Battery comes with a 5-year warranty, subject to the applicable warranty terms and conditions.
Yes. Voltpro Energy offers this 12.8V 200Ah LiFePO4 Battery at competitive wholesale pricing in Pakistan. Customers purchasing in quantity can contact Voltpro Energy for the latest wholesale price and availability.
You can purchase the Voltpro Energy 12.8V 200Ah LiFePO4 Battery directly from Voltpro Energy, subject to availability.
Visit www.voltproenergy.com to check product details, availability and purchasing information.
