Voltpro Energy 16S 314Ah LiFePO4 Battery Box | 51.2V 314Ah Battery Casing | EVE, REPT, Lishen & Cornex Cell Support | 200A Terminals | JK 7" & TDT Touchscreen Support | Wheel-Movable Design

Product Description

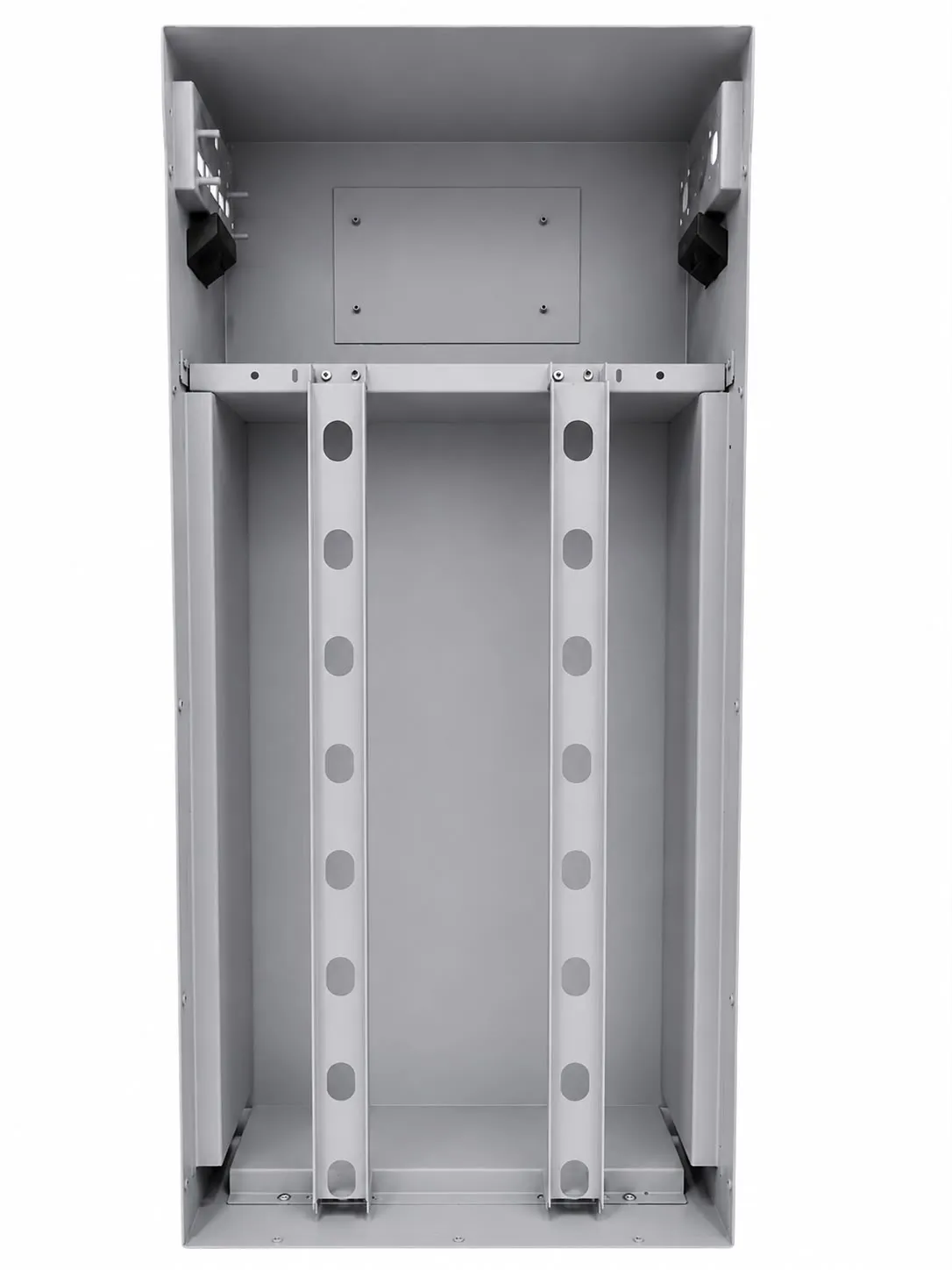

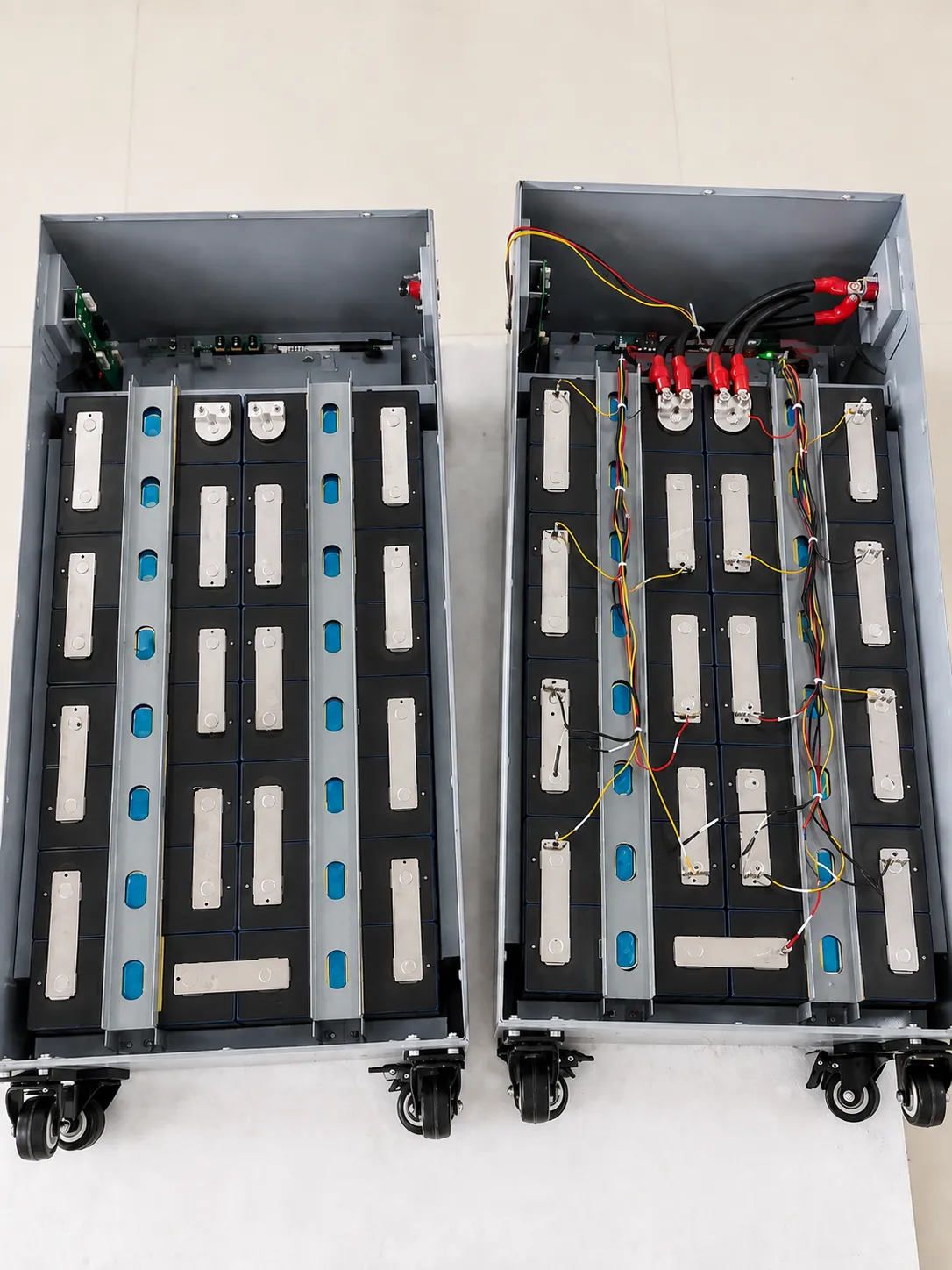

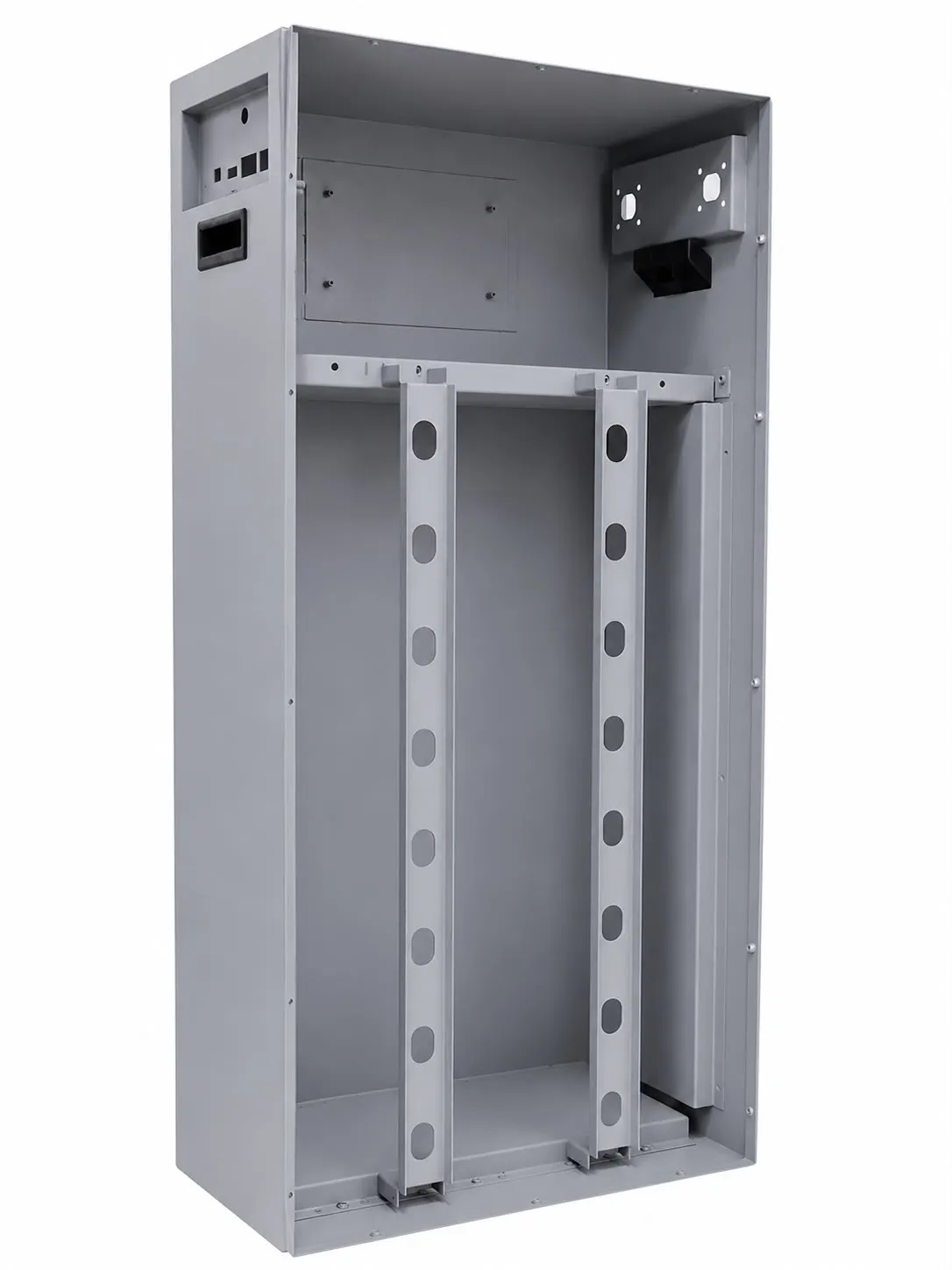

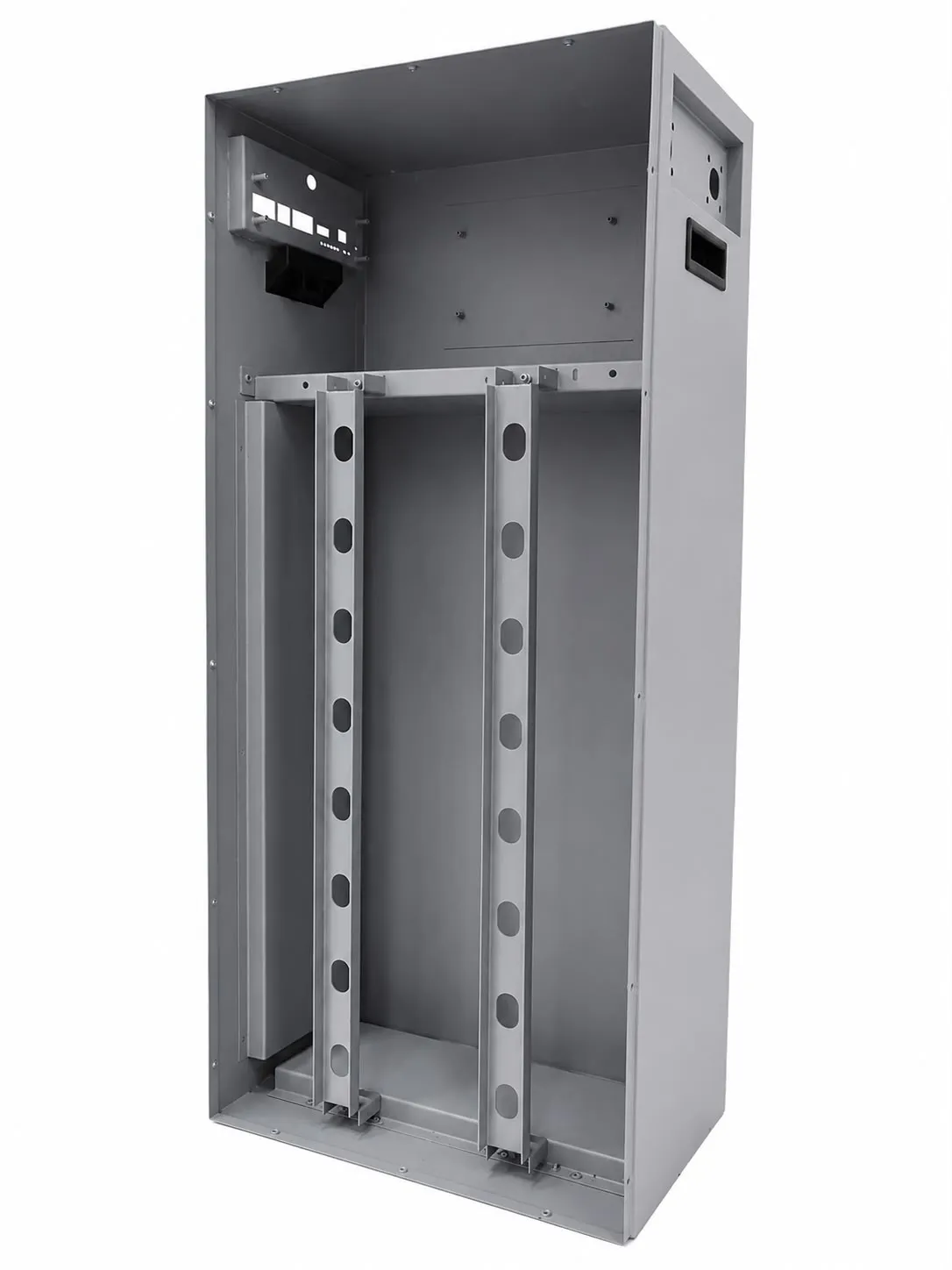

Short Description The Voltpro Energy 16S 314Ah LiFePO4 Battery Box is a premium heavy-duty metal enclosure designed for building high-capacity 51.2V-class LiFePO4 battery systems using compatible 314Ah or 280Ah prismatic cells. The enclosure is designed to accommodate popular large-format cells from manufacturers such as EVE, Lishen, REPT, Cornex and other compatible cell brands. It supports 200A high-current terminals and provides dedicated provisions for advanced battery monitoring through either a JK 7-inch Touchscreen or a compatible TDT Touchscreen Display. A dedicated communication port is positioned on the left side, while a terminal ON/OFF switch is positioned on the right side, providing convenient access to important battery connections and controls. Due to the heavy-duty construction and weight of a completed 314Ah battery, this enclosure is not designed for wall mounting. Instead, the bottom provides provision for installing wheels/tyres, allowing the completed battery to be moved conveniently when required. Product Overview The Voltpro Energy 16S 314Ah Battery Box is designed for customers who require a large-capacity, professional and premium-looking battery enclosure for solar energy storage, inverter backup and commercial energy-storage applications. The enclosure is designed around large-format LiFePO4 prismatic cells and can accommodate 314Ah-class cells, including compatible cells from: EVE Lishen REPT Cornex Other compatible manufacturers It can also accommodate compatible 280Ah EVE cells, subject to the exact cell dimensions and internal configuration. The enclosure combines high-current electrical provisions with a professional monitoring interface and mobile design, making it particularly suitable for large 51.2V battery systems. Key Features Designed for 16S LiFePO4 Battery Configuration Suitable for 314Ah-class cells Supports compatible 280Ah EVE Cells Supports 314Ah EVE Cells Compatible with Lishen 314Ah Cells Compatible with REPT 314Ah Cells Compatible with Cornex 314Ah Cells Supports other compatible large-format prismatic cells Heavy-Duty Metal Construction Premium Battery Enclosure Design 200A High-Current Terminals JK 7-Inch Touchscreen Support TDT Touchscreen Support Dedicated Communication Port Communication Port positioned on the left side Terminal ON/OFF Switch ON/OFF switch positioned on the right side Bottom provision for Wheels/Tyres Easy movement of completed battery Professional and premium appearance Designed for high-capacity energy storage Suitable for solar and inverter applications Suitable for commercial energy storage Not designed for wall mounting 314Ah Cell Compatibility The enclosure is designed to accommodate compatible 314Ah large-format LiFePO4 prismatic cells. Supported cell manufacturers can include: EVE 314Ah Compatible EVE 314Ah LiFePO4 cells can be installed, subject to the cell dimensions matching the enclosure. Lishen 314Ah The enclosure supports compatible Lishen 314Ah cells where the physical dimensions are suitable. REPT 314Ah Compatible REPT 314Ah cells can also be used. Cornex 314Ah The enclosure can accommodate compatible Cornex 314Ah cells. Other Cell Brands Other 314Ah-class LiFePO4 prismatic cells may also be suitable if their dimensions and physical configuration match the available internal space. EVE 280Ah Cell Support In addition to 314Ah-class cells, the enclosure can also accommodate compatible EVE 280Ah LiFePO4 cells, subject to their physical dimensions. This gives battery builders additional flexibility when selecting cells for their required battery capacity and configuration. Always confirm the exact cell dimensions before ordering to ensure proper fit. 16S Battery Configuration The enclosure is designed around a 16S LiFePO4 battery configuration, making it suitable for a 51.2V-class battery system. For example: 16 × 3.2V LiFePO4 cells ≈ 51.2V nominal battery voltage The final battery capacity depends on the Ah rating of the selected cells. With 314Ah Cells Approximately: 51.2V × 314Ah ≈ 16.08kWh With 280Ah Cells Approximately: 51.2V × 280Ah ≈ 14.34kWh Actual energy depends on the final cell configuration and battery specifications. 200A High-Current Terminal Support The enclosure provides provision for installing 200A high-current battery terminals. This makes the box suitable for high-capacity battery systems where higher-current connections are required. The actual current capability of the completed battery depends on: Battery cells BMS Terminal rating Busbars DC cables Fuse/breaker Inverter Overall battery design JK 7-Inch Touchscreen Support The enclosure provides dedicated provision for a JK 7-inch Touchscreen Display. A compatible JK touchscreen can provide a convenient interface for monitoring battery parameters, depending on the selected JK BMS. Possible Monitoring Information Battery Voltage Battery Current Battery Power SOC % Individual Cell Voltage Cell Voltage Difference Battery Temperature BMS/MOS Temperature Charging Status Discharging Status Active Balancing Status Protection Status Alarm Information The large 7-inch screen provides a clear and convenient interface for high-capacity battery systems. TDT Touchscreen Support The enclosure also provides provision for installing a compatible TDT Touchscreen Display. This gives battery builders flexibility to use a TDT BMS and its compatible touchscreen monitoring system. Depending on the TDT BMS and display configuration, users may be able to monitor: Battery SOC Battery Voltage Current Power Individual Cell Voltages Cell Difference Temperature Charging/Discharging Status Balancing Protection/Alarm Status Display functionality depends on the selected TDT BMS, touchscreen model and system configuration. Communication Port A dedicated communication port is positioned on the left side of the battery box. This provides convenient access for connecting compatible BMS communication systems and inverter communication interfaces. Depending on the BMS installed, the communication system may support interfaces such as: CAN RS485 Other supported communication interfaces The actual communication capability depends on the selected BMS and inverter. Terminal ON/OFF Switch For convenient control and isolation, the enclosure includes provision for a Terminal ON/OFF Switch on the right side. This provides an easily accessible location for controlling the battery's main terminal connection, depending on the selected switch and wiring configuration. It helps provide a cleaner and more professional external battery design while keeping the control point easily accessible. Wheel / Tyre Installation Provision Because a completed 16S 314Ah battery can be very heavy, this enclosure is designed with provision at the bottom for installing wheels/tyres. The wheels make it easier to: Move the battery around Reposition the battery Transport the battery within an installation area Service or access the battery Position the battery near an inverter or electrical equipment This feature is particularly useful for high-capacity batteries that are difficult to lift manually. Not Wall Mounted Due to the heavy weight and large capacity of a completed 314Ah battery, this enclosure is not designed for wall mounting. Instead, the bottom wheel provision allows the battery to remain floor-mounted while still being relatively easy to move. This makes the enclosure more practical for: Solar battery rooms Inverter rooms Commercial installations Home energy-storage areas Battery storage rooms Premium & Professional Design The enclosure is designed to give the completed battery a premium, professional appearance rather than the look of a basic DIY battery pack. The combination of: Large touchscreen Side communication port External ON/OFF switch High-current terminals Heavy-duty construction Bottom wheel provision creates a clean and practical high-capacity battery system suitable for both residential and commercial installations. Suitable Applications ☀️ Solar Energy Storage Suitable for large-capacity solar energy-storage systems where substantial battery capacity is required. ⚡ Hybrid Inverter Systems Suitable for compatible 51.2V hybrid inverter systems with the appropriate BMS and communication protocol. 🏠 Home Backup A 314Ah configuration provides approximately 16.08kWh nominal energy, making it suitable for substantial home backup requirements. 🏢 Commercial Energy Storage The heavy-duty construction and high-capacity cell support make it suitable for commercial energy-storage applications. 🌐 Off-Grid Systems Suitable for high-capacity off-grid solar and energy-storage systems. 🔋 UPS & Backup Systems Can be used to build a high-capacity 51.2V LiFePO4 battery for compatible UPS and inverter systems. Technical Specifications Specification Details Product Type Empty Heavy-Duty Battery Box Battery Configuration 16S LiFePO4 Battery Voltage Class 51.2V Cell Capacity Support 314Ah / Compatible 280Ah Cell Type Large-Format LiFePO4 Prismatic Cells Compatible Brands EVE, Lishen, REPT, Cornex & Others 280Ah Cell Support Compatible EVE 280Ah 314Ah Cell Support Compatible 314Ah Cells Terminal Support 200A JK Display 7-Inch Touchscreen Support TDT Display Touchscreen Support Communication Port Yes Communication Port Location Left Side Terminal ON/OFF Switch Yes Switch Location Right Side Wheel/Tyre Provision Yes Wall Mounting No Construction Heavy-Duty Metal Application Solar, Inverter, UPS, Backup & Off-Grid Battery Cells Included No BMS Included No Display Included No Terminals Included No 314Ah Battery Energy Capacity When assembled using 314Ah cells: 51.2V × 314Ah ≈ 16.08kWh This provides approximately 16.08kWh of nominal energy storage. Actual usable energy depends on: BMS settings Depth of discharge Inverter efficiency Battery temperature Load Cell characteristics Operating conditions 280Ah Battery Energy Capacity When assembled using compatible 280Ah cells: 51.2V × 280Ah ≈ 14.34kWh Therefore, the same enclosure can provide a substantial energy-storage solution using compatible 280Ah cells. Why Choose This Battery Box? The Voltpro Energy 16S 314Ah Battery Box is designed for users who need a large-capacity, premium and highly functional battery enclosure. Its compatibility with 314Ah EVE, Lishen, REPT, Cornex and other suitable cells, as well as compatible EVE 280Ah cells, provides flexibility during battery assembly. The addition of 200A terminals, JK 7-inch touchscreen support, TDT touchscreen support, side communication port, external ON/OFF switch and bottom wheel provision makes this enclosure particularly suitable for professional 51.2V high-capacity battery systems. Because of the substantial weight of a completed 314Ah battery, the floor-standing wheeled design provides a practical alternative to wall mounting while making the battery easier to reposition when required. Package Includes 1 × Voltpro Energy 16S 314Ah Heavy-Duty Battery Box Not Included Battery Cells BMS JK 7-Inch Touchscreen TDT Touchscreen 200A Terminals Communication Hardware ON/OFF Switch Wheels/Tyres Battery Cables Other Electrical Components Important Compatibility Note This is an empty battery enclosure intended for custom battery assembly. Before purchasing, confirm the exact dimensions of your selected 314Ah or 280Ah cells, BMS, touchscreen, terminals and other components to ensure proper physical compatibility. The final battery voltage, capacity, current capability, communication functionality and monitoring features depend on the components installed inside the enclosure. Due to the heavy weight of a completed high-capacity battery, this model is designed as a floor-standing enclosure and is not intended for wall mounting.
