Voltpro Energy 16S 100Ah LiFePO4 Battery Box | 24V 200Ah Battery Casing | Smart BMS & JK Inverter BMS Support | Communication Port | JK 3.2" LCD & Touchscreen Support | Heavy-Duty Metal Enclosure

Product Description

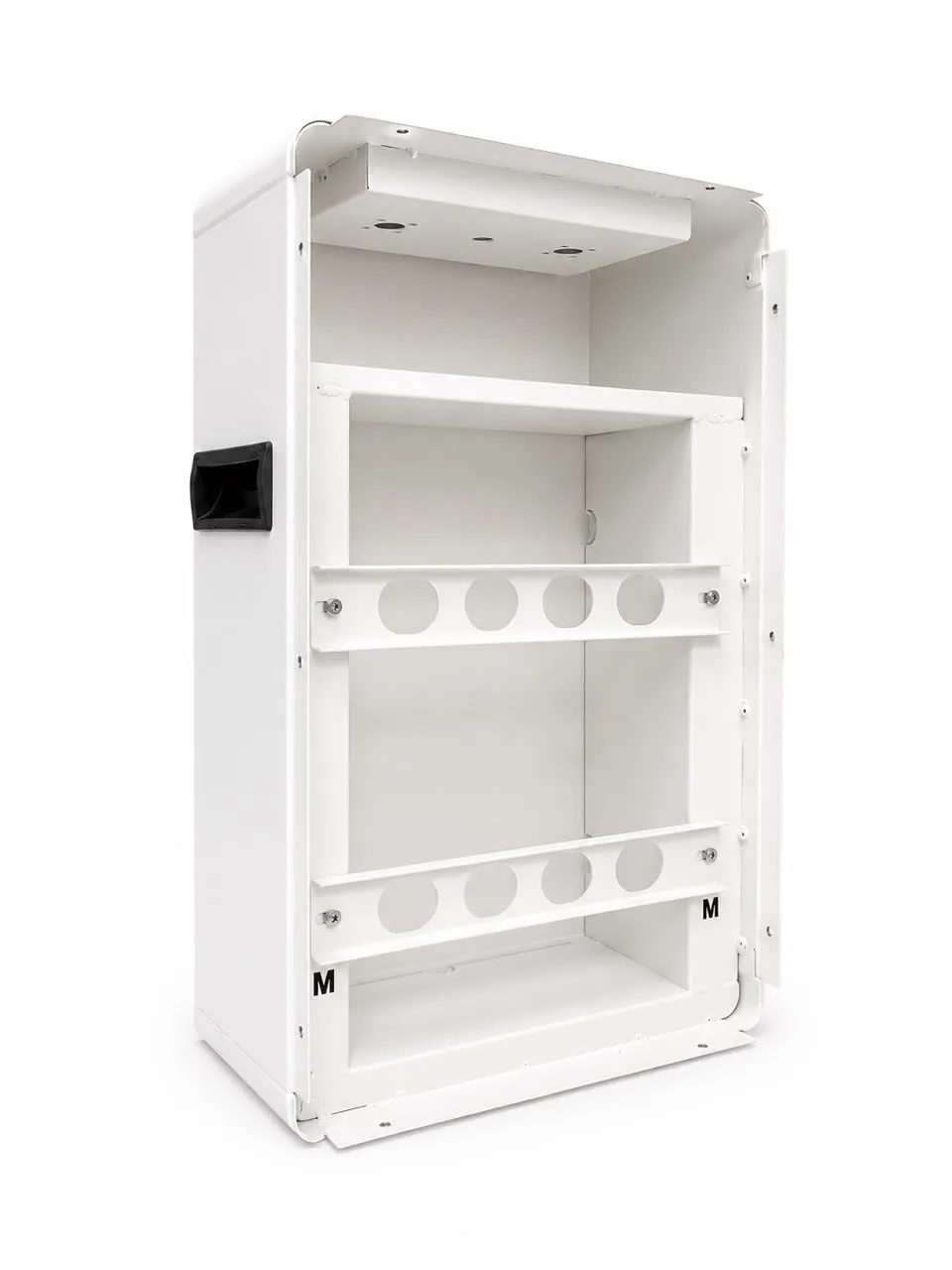

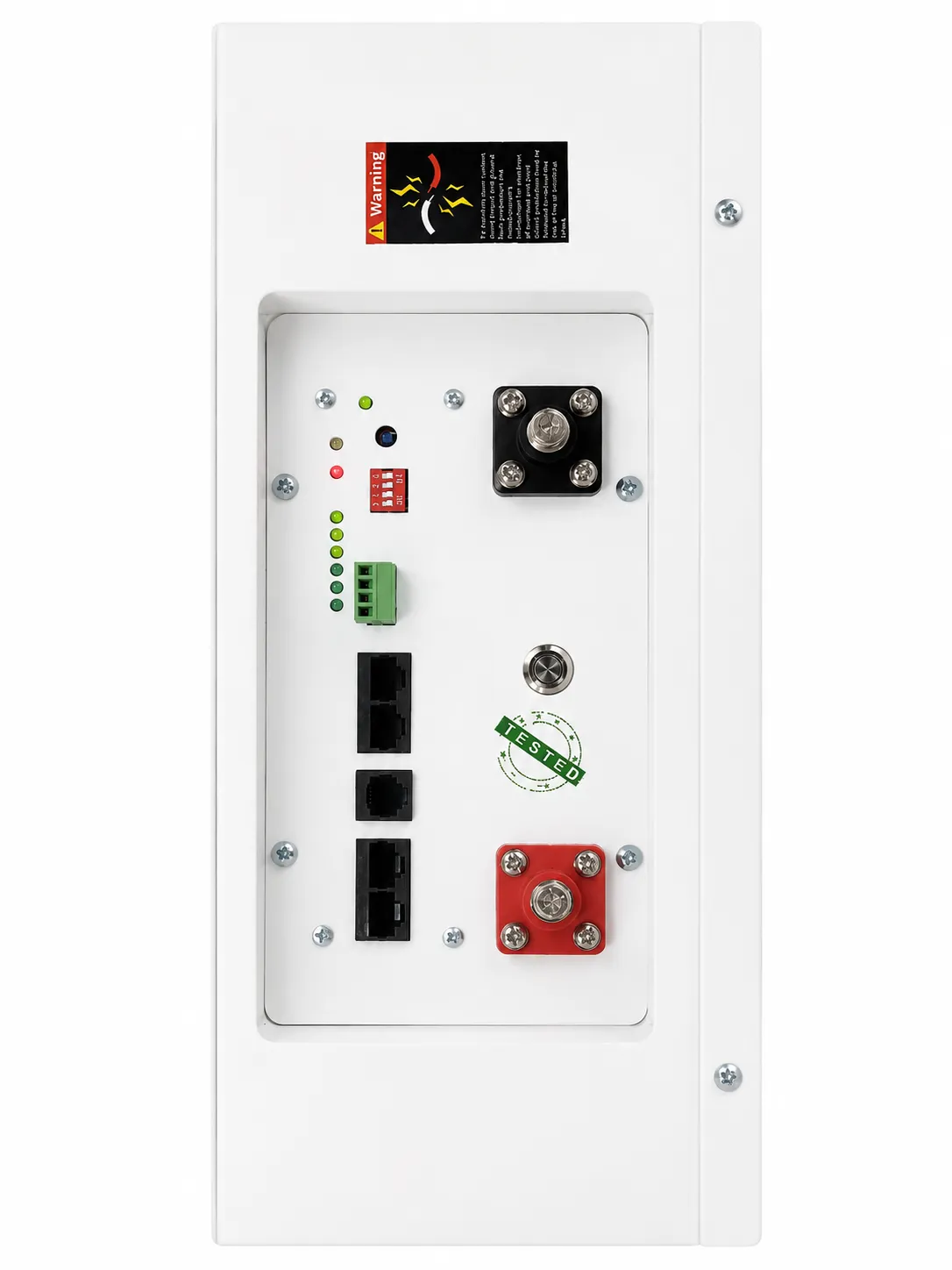

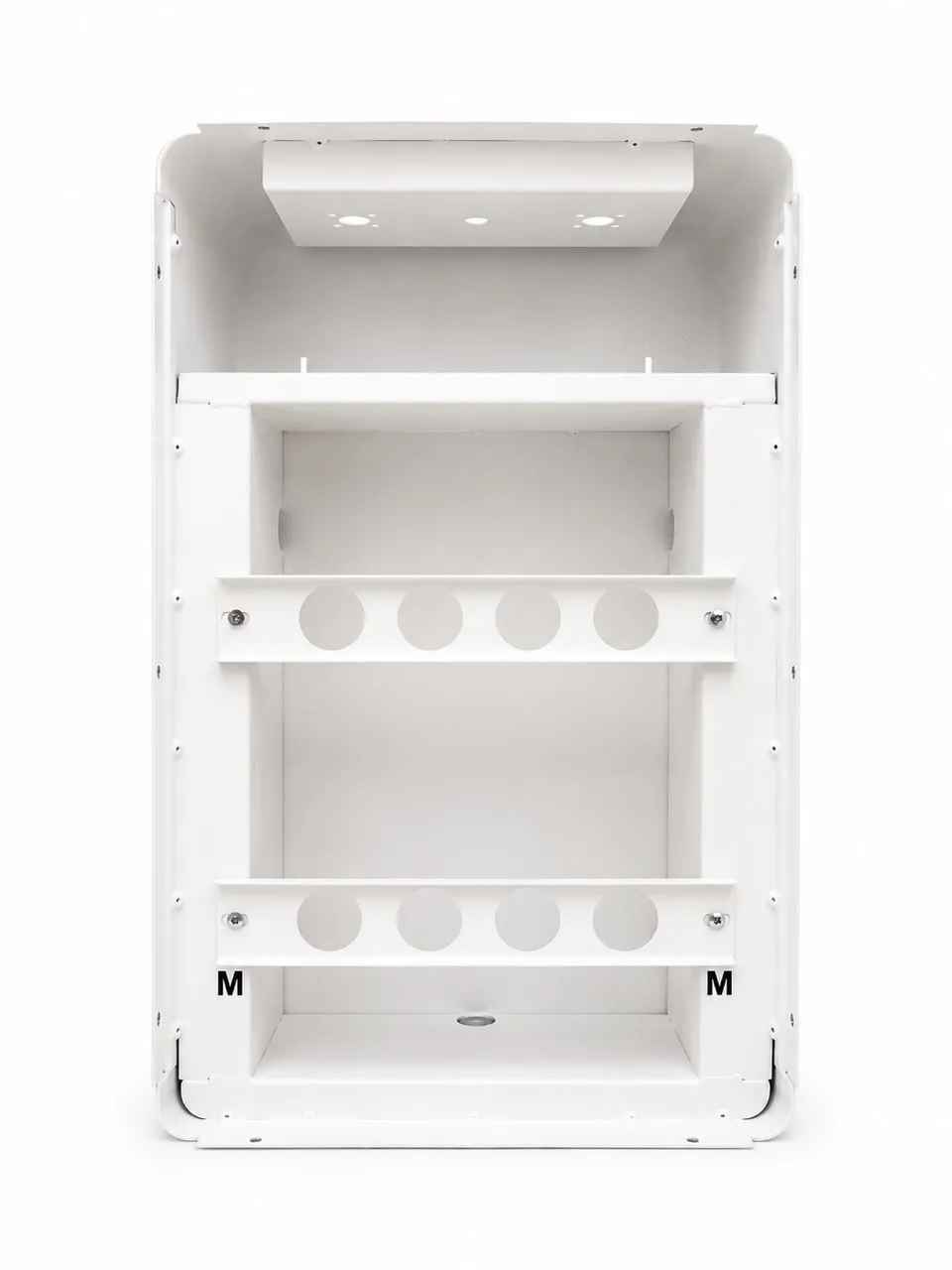

Short Description The Voltpro Energy 16S 100Ah LiFePO4 Battery Box is a heavy-duty metal enclosure designed for building custom 24V 200Ah LiFePO4 battery systems and other compatible battery configurations. This premium battery casing provides installation space for both Smart BMS and JK Inverter BMS, along with a dedicated communication port for compatible inverter communication applications. The enclosure also supports both JK 3.2-inch LCD Display and compatible JK Touchscreen Display, allowing users to select the monitoring solution according to their requirements. Built for professional battery assembly, this heavy-weight enclosure provides a strong and organized structure for battery cells, BMS, communication components and monitoring displays. Product Overview The Voltpro Energy 16S 100Ah Battery Box is designed for battery builders, solar installers, technicians and energy-storage professionals who require a strong and versatile battery enclosure. The casing is suitable for building a 24V 200Ah LiFePO4 battery, depending on the selected cell configuration. One of its major advantages is its flexibility in BMS selection. The enclosure provides space for both: Smart BMS JK Inverter BMS It also provides provision for a communication port, making it suitable for battery systems where communication between the BMS and a compatible inverter is required. For battery monitoring, the enclosure can accommodate a JK 3.2-inch LCD as well as a compatible JK Touchscreen Display. Key Features Designed for 24V 200Ah LiFePO4 Battery 16S 100Ah Battery Box Design Heavy-Duty Metal Construction Strong and Durable Enclosure Supports Smart BMS Supports JK Inverter BMS Dedicated Communication Port Provision Supports JK 3.2-Inch LCD Display Supports compatible JK Touchscreen Display Suitable for inverter communication applications Professional battery assembly design Suitable for solar systems Suitable for hybrid inverters Suitable for UPS systems Suitable for home backup Suitable for commercial energy storage Suitable for DIY and professional battery assembly 24V 200Ah Battery Application This enclosure is designed for building a 24V 200Ah LiFePO4 battery using a suitable cell configuration. A typical 24V LiFePO4 battery provides approximately: 25.6V × 200Ah = 5.12kWh nominal energy This capacity is suitable for applications such as: Solar Energy Storage Home Backup Hybrid Inverter Systems UPS Systems Commercial Backup Off-Grid Energy Storage Smart BMS Support The enclosure provides space for installing a suitable Smart BMS. A Smart BMS can provide important battery management functions such as: Cell Voltage Monitoring Battery Voltage Monitoring Temperature Monitoring Cell Balancing Overcharge Protection Over-Discharge Protection Over-Current Protection Short-Circuit Protection The exact features depend on the selected BMS model. JK Inverter BMS Support Unlike a basic Smart BMS-only enclosure, this model also provides space for a compatible JK Inverter BMS. This makes the battery box suitable for applications where the battery needs to communicate with a compatible inverter. Depending on the selected JK BMS and inverter, communication can provide battery information such as: Battery Voltage Battery Current SOC Charging Status Discharging Status Cell Voltage Battery Temperature Protection Status Alarm Information Important: Actual inverter communication depends on the BMS model, inverter compatibility, communication protocol, cable and correct configuration. Communication Port Support The enclosure provides provision for installing a communication port. This allows battery builders to configure the completed battery for communication with compatible inverter systems. The actual communication protocol depends on the selected BMS and inverter. Compatible communication interfaces may include CAN, RS485 or other interfaces, depending on the BMS model installed. JK 3.2-Inch LCD Support The enclosure provides provision for installing the JK 3.2-inch LCD Display. The display can provide convenient local access to important battery information, depending on the connected JK BMS. Information may include: Battery Voltage Battery Current SOC Individual Cell Voltage Cell Voltage Difference Temperature Charging Status Discharging Status Balancing Status Protection/Alarm Information JK Touchscreen Display Support The casing is also designed to support a compatible JK Touchscreen Display. This gives battery builders the flexibility to choose between a conventional JK LCD and a touchscreen monitoring solution. A touchscreen can provide a more convenient user interface for viewing battery parameters and system status. Display compatibility depends on the exact JK BMS and display model selected. Heavy-Duty Construction The enclosure is designed as a heavy-weight battery box for applications where a stronger and more durable housing is preferred. The heavy-duty construction provides: Strong mechanical structure Better protection for internal components Stable battery assembly Professional appearance Suitable structure for fixed installations Better durability during handling and installation Professional Battery Assembly The enclosure is designed to keep the battery system organized by providing dedicated space for: Battery Cells Smart BMS JK Inverter BMS Communication Port JK 3.2-Inch LCD JK Touchscreen Battery Wiring Internal Connections This makes it easier for battery builders to create a clean, professional and serviceable battery assembly. Suitable Applications ☀️ Solar Energy Storage Suitable for building 24V 200Ah LiFePO4 batteries for solar energy storage systems. ⚡ Hybrid Inverter Systems The enclosure can accommodate a compatible JK Inverter BMS and communication port for compatible inverter systems. 🏠 Home Backup The 24V 200Ah battery configuration provides approximately 5.12kWh nominal energy, suitable for home backup applications. 🔋 UPS Systems Suitable for building compatible 24V LiFePO4 UPS batteries. 🏢 Commercial Backup The heavy-duty enclosure is suitable for professional and commercial battery assembly. 🌐 Off-Grid Applications Suitable for custom off-grid energy-storage systems. Technical Specifications Specification Details Product Type Empty Heavy-Duty Metal Battery Box Battery Application 24V 200Ah LiFePO4 Configuration 16S 100Ah Design Battery Chemistry LiFePO4 Smart BMS Support Yes JK Inverter BMS Support Yes Communication Port Supported JK 3.2-Inch LCD Supported JK Touchscreen Supported Construction Heavy-Duty Metal Installation Custom / Fixed Installation Application Solar, Inverter, UPS, Backup & Off-Grid Battery Cells Included No BMS Included No Display Included No Communication Components Included No Why Choose This Battery Box? The Voltpro Energy 16S 100Ah Battery Box offers much more flexibility than a standard battery enclosure. It allows battery builders to choose between a Smart BMS and JK Inverter BMS, while also providing space for a communication port and both JK 3.2-inch LCD and compatible touchscreen displays. Its heavy-duty construction makes it suitable for professional battery assembly and demanding solar/inverter applications. For customers building a 24V 200Ah LiFePO4 battery, this enclosure provides a strong, organized and professional platform for assembling the complete battery system. Package Includes 1 × Voltpro Energy 16S 100Ah Heavy-Duty Battery Box Not Included Battery Cells Smart BMS JK Inverter BMS Communication Port JK 3.2-Inch LCD JK Touchscreen Battery Terminals Battery Cables Other Electrical Components Important Compatibility Note This is an empty battery enclosure intended for custom battery assembly. Before purchasing, confirm the physical dimensions of your selected cells, BMS, communication port and display to ensure proper compatibility. The final battery voltage, capacity, current rating and communication functionality depend on the cells, BMS, wiring, terminals and other components installed inside the enclosure.
