2V 100Ah A-Grade LiFePO4 Battery Cell is a high-capacity prismatic lithium iron phosphate cell designed for professional battery-pack assembly, solar energy storage, inverter batteries, EV applications, UPS systems, home backup and commercial energy-storage applications
With a 3
2V nominal voltage and 100Ah capacity, the cell provides approximately 320Wh of nominal energy
It features a low 0
Tip: Scroll inside the gallery to browse all images.
Product Description
Short Description
The Ganfeng 3.2V 100Ah A-Grade LiFePO4 Battery Cell is a high-capacity prismatic lithium iron phosphate cell designed for professional battery-pack assembly, solar energy storage, inverter batteries, EV applications, UPS systems, home backup and commercial energy-storage applications.
With a 3.2V nominal voltage and 100Ah capacity, the cell provides approximately 320Wh of nominal energy. It features a low 0.28mΩ internal resistance and a specified 6000-cycle life, making it suitable for long-term repeated charge and discharge applications.
The A-Grade cell quality, large-format prismatic design and 100Ah capacity make it a practical choice for building customized 12V, 24V, 48V/51.2V and higher-capacity LiFePO4 battery systems.
Product Overview
The Ganfeng 100Ah LiFePO4 Cell is an A-Grade 3.2V prismatic battery cell designed for users who require high-capacity cells for custom lithium battery construction.
Its 100Ah capacity allows battery builders to create different energy-storage configurations by connecting cells in series and parallel.
The cell has a specified 0.28mΩ internal resistance and 6000-cycle life, making it suitable for applications where reliable performance and repeated cycling are important.
It can be used for solar storage, inverter batteries, EV battery packs, UPS systems, home backup and commercial energy-storage projects.
Key Features
Ganfeng LiFePO4 Battery Cell
A-Grade Cell
3.2V Nominal Voltage
100Ah Nominal Capacity
Approx. 320Wh Nominal Energy
6000 Cycle Life
0.28mΩ Internal Resistance
Large-Format Prismatic Cell
Approx. 2.2kg Weight

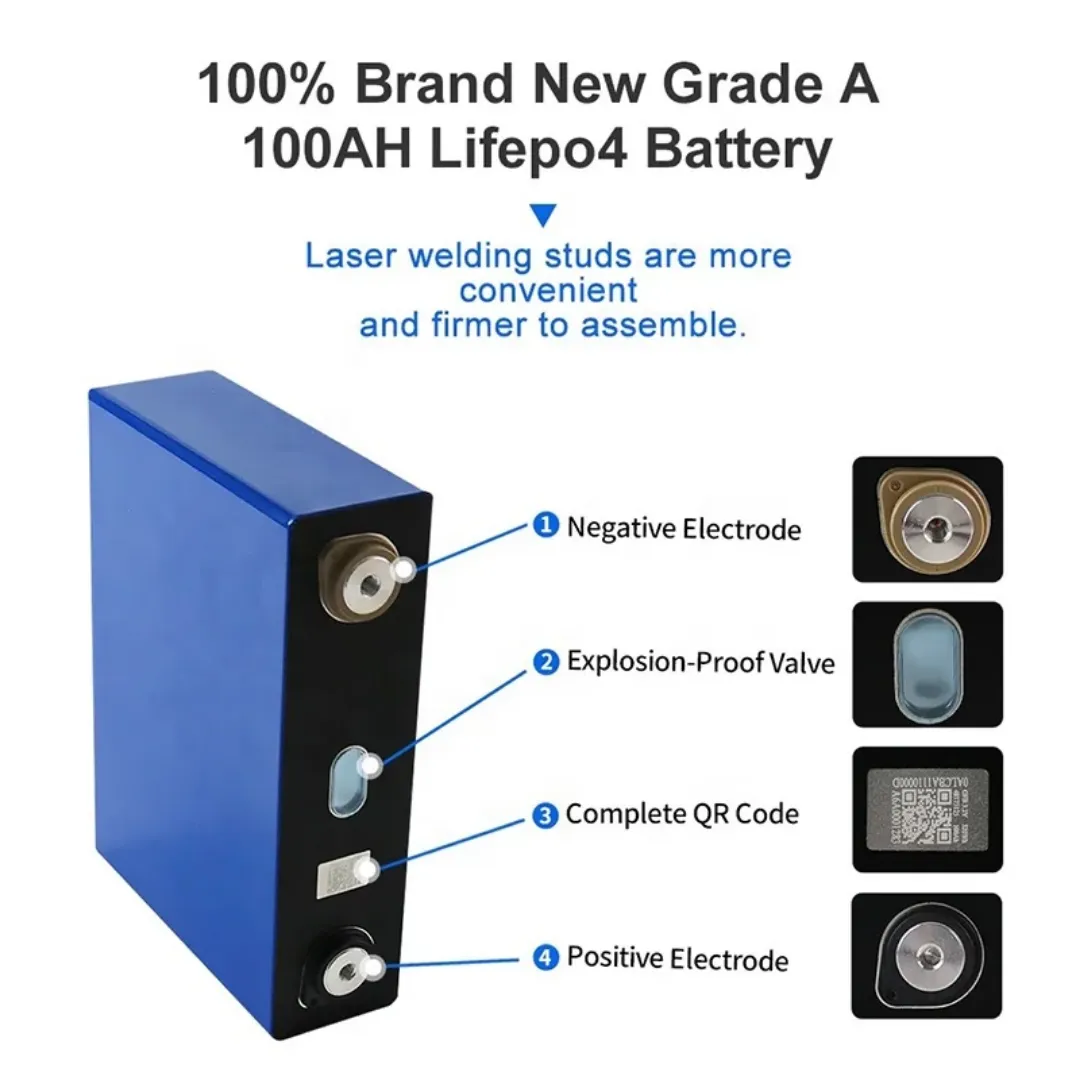

Positive & Negative Terminals
Suitable for Solar Battery Packs
Suitable for Inverter Batteries
Suitable for EV Battery Packs
Suitable for UPS Systems
Suitable for Home Backup
Suitable for Commercial Energy Storage
Suitable for Off-Grid Systems
Suitable for Custom LiFePO4 Battery Packs
Technical Specifications
Specification Details
Brand Ganfeng
Cell Grade A Grade
Chemistry LiFePO4
Cell Type Prismatic
Nominal Voltage 3.2V
Nominal Capacity 100Ah
Nominal Energy Approx. 320Wh
Internal Resistance 0.28mΩ
Cycle Life 6000 Cycles*
Approx. Weight 2.2kg
Dimensions 48 × 174 × 128mm
Application Solar, EV, UPS, Inverter, ESS & Custom Battery Packs
*Actual cycle life depends on charging/discharging conditions, depth of discharge, temperature, current, BMS settings and operating conditions.
Ganfeng A-Grade 100Ah LiFePO4 Cell
The Ganfeng 100Ah cell is specified as an A-Grade LiFePO4 cell, making it suitable for professional battery-pack construction.
A-Grade cells are preferred for applications where cell quality and consistency are important.
When assembling multiple cells into a battery pack, it is recommended to match cells according to:
Capacity
Voltage
Internal resistance
State of charge
Overall cell condition
Properly matched cells can help improve the consistency and performance of the completed battery pack.
0.28mΩ Internal Resistance
The specified internal resistance of this Ganfeng cell is:
0.28mΩ
Low internal resistance can help reduce internal voltage drop and heat generation when current flows through the cell.
Actual resistance measurements can vary depending on:
Cell temperature
State of charge
Measurement method
Testing equipment
Cell condition
For multi-cell battery construction, using cells with closely matched internal resistance is recommended.
6000 Cycle Life
The Ganfeng 100Ah LiFePO4 cell is specified with a:
6000 Cycle Life
This makes it suitable for applications involving repeated charging and discharging, including:
Solar energy storage
Home backup
Inverter batteries
UPS systems
Commercial energy storage
Off-grid systems
EV applications
Actual cycle life depends on operating conditions such as:
Depth of discharge
Charging voltage
Charging current
Discharge current
Operating temperature
BMS settings
Cell balancing
Storage conditions
100Ah Capacity & Energy
Each cell provides:
3.2V × 100Ah = 320Wh
Therefore, one Ganfeng 100Ah cell provides approximately:
320Wh / 0.32kWh Nominal Energy
The total energy of a battery pack depends on the number of cells and series/parallel configuration.
Battery Configuration Examples
4S 100Ah – 12.8V 100Ah
Using 4 cells in series:
4 × 3.2V = 12.8V
Nominal energy:
12.8V × 100Ah = 1.28kWh
Suitable for a 12V-class LiFePO4 battery.
8S 100Ah – 25.6V 100Ah
Using 8 cells in series:
8 × 3.2V = 25.6V
Nominal energy:
25.6V × 100Ah = 2.56kWh
Suitable for a 24V-class LiFePO4 battery.
16S 100Ah – 51.2V 100Ah
Using 16 cells in series:
16 × 3.2V = 51.2V
Nominal energy:
51.2V × 100Ah = 5.12kWh
Suitable for 48V/51.2V-class LiFePO4 battery systems.
Parallel Configuration
Parallel connections can increase the total battery capacity while maintaining the same nominal voltage.
Configuration Approx. Capacity
1P 100Ah
2P 200Ah
3P 300Ah
4P 400Ah
For example, a 16S2P configuration provides approximately:
51.2V 200Ah
Nominal energy:
10.24kWh
The final configuration should be selected according to the required battery voltage, capacity, BMS rating, inverter and application.

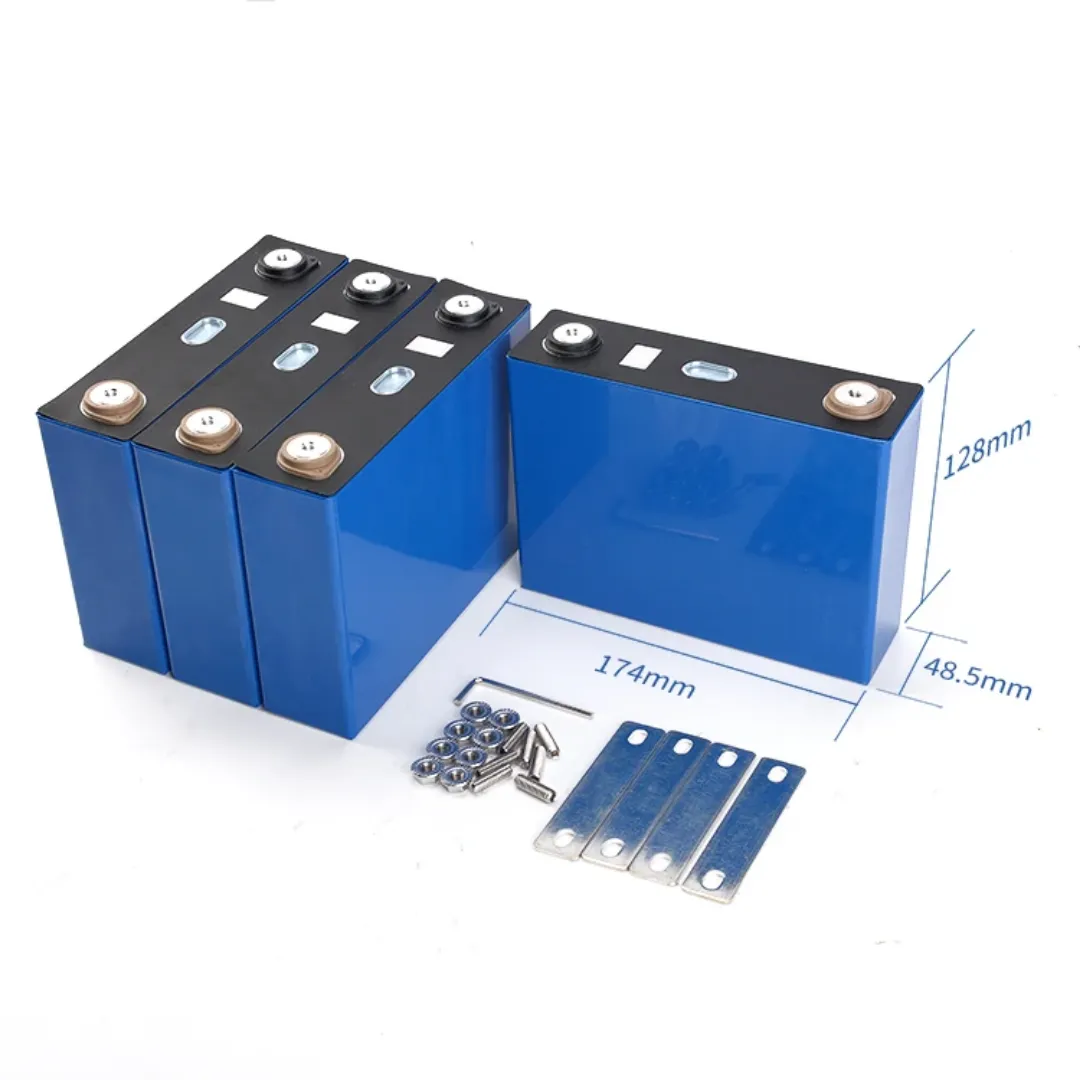

Cell Dimensions
According to the provided product information, the approximate cell dimensions are:
48 × 174 × 128mm
These dimensions are important when selecting or designing a battery enclosure.
Battery-box dimensions should provide adequate clearance for:
Cell terminals
Busbars
Insulation
BMS
Cables
Cell supports
Physical dimensions should be verified before final battery-box manufacturing.
Cell Weight
The specified weight is:
Approx. 2.2kg
The final weight of a complete battery will be higher depending on the number of cells and additional components such as BMS, busbars, cables, enclosure, terminals and protection devices.
Suitable Applications
☀️ Solar Energy Storage
Suitable for building high-capacity LiFePO4 batteries for solar energy-storage systems.
🏠 Home Backup
Can be used to build high-capacity backup batteries for essential household loads.
⚡ Inverter Battery Systems
Suitable for building compatible LiFePO4 batteries for inverter and hybrid inverter applications.
🚗 EV Battery Packs
Suitable for compatible electric vehicles, e-bikes, scooters and other electric-mobility applications.
🔋 UPS Systems
Suitable for compatible LiFePO4 UPS and backup-power systems.
🏢 Commercial Energy Storage
The 100Ah capacity and 6000-cycle specification make it suitable for commercial energy-storage applications.
🌐 Off-Grid Systems
Suitable for off-grid solar and renewable-energy storage systems.
Why Choose Ganfeng 100Ah A-Grade Cell?
The Ganfeng 3.2V 100Ah A-Grade LiFePO4 Cell combines:
100Ah Capacity
A-Grade Cell Quality
0.28mΩ Internal Resistance
6000 Cycle Life
Large-Format Prismatic Construction
Approx. 2.2kg Weight
Its 100Ah capacity makes it particularly useful for battery builders who want to create high-capacity battery systems using fewer individual cells.
It can be configured into 12.8V, 25.6V, 51.2V and larger LiFePO4 battery systems through suitable series and parallel connections.
Recommended Battery Assembly
For professional battery construction:
Use cells of the same model and capacity.
Preferably use cells from the same batch.
Match cell voltage before assembly.
Check internal resistance.
Properly balance cells.
Use a suitable LiFePO4 BMS.
Use correctly rated busbars.
Use appropriately sized DC cables.
Provide proper insulation.
Use a suitable fuse/breaker.
Provide adequate mechanical cell support.
Follow correct charging parameters.
Test the completed battery before commissioning.
Package Includes
1 × Ganfeng 3.2V 100Ah A-Grade LiFePO4 Prismatic Cell
Not Included
BMS
Busbars
Battery Box
Charger
Cables
Cell Supports
Fuse/Breaker
Battery Assembly
Important Note
The specifications in this listing are based on the product information provided in the image and your updated specifications, including A-Grade, 0.28mΩ internal resistance, 6000 cycles and approximately 2.2kg weight.
The stated cycle life is a specified/test-condition rating. Actual real-world cycle life and performance depend on charging/discharging current, depth of discharge, temperature, BMS settings, cell balancing and overall battery-pack design.
For multi-cell battery packs, always use properly matched cells and a suitable LiFePO4 BMS.
Frequently Asked Questions
The Ganfeng 100Ah cell is a 3.2V A-Grade LiFePO4 prismatic battery cell designed for custom battery packs and energy-storage applications.
Yes. This cell is specified as an A-Grade Ganfeng LiFePO4 cell.
The nominal capacity is 100Ah.
The nominal voltage is 3.2V.
The cell uses Lithium Iron Phosphate (LiFePO4) chemistry.
The cell is specified with a 6000-cycle life under suitable specified/test conditions.
No. Actual cycle life depends on charging/discharging conditions, depth of discharge, temperature, current, BMS settings and other operating factors.
The specified internal resistance is 0.28mΩ.
Low internal resistance can help reduce voltage drop and heat generation during current flow.
Approximately 3.2V × 100Ah = 320Wh.
Yes. 4 cells in series (4S) create a 12.8V-class LiFePO4 battery.
Yes. 8 cells in series (8S) create a 25.6V-class LiFePO4 battery.
Yes. 16 cells in series (16S) create a 51.2V-class LiFePO4 battery.
Approximately 1.28kWh nominal energy.
Approximately 2.56kWh nominal energy.
Approximately 5.12kWh nominal energy.
Yes. Parallel connections can increase the total Ah capacity while maintaining the same nominal voltage.
Two 100Ah cells in parallel provide approximately 200Ah.
Yes. A 16S2P configuration provides approximately 51.2V 200Ah, with around 10.24kWh nominal energy.
Yes. They are suitable for building compatible LiFePO4 solar energy-storage batteries.
Yes. They can be assembled into a properly configured LiFePO4 battery for compatible inverter systems.
Yes. They can be used in compatible electric vehicles, e-bikes, scooters and other EV battery packs.
Yes. They are suitable for compatible LiFePO4 UPS and backup-power applications.
Yes. Properly configured battery packs can be used for home backup and energy-storage applications.
The provided specification lists approximately 48 × 174 × 128mm.
The specified weight is approximately 2.2kg.
Yes. It is a large-format prismatic LiFePO4 cell.
Yes. A suitable LiFePO4 BMS should be used when multiple cells are assembled into a battery pack.
Yes, provided the selected JK BMS has the correct series configuration, current rating and LiFePO4 settings for the completed battery.
Yes. Proper cell matching and balancing are recommended before assembling a multi-cell battery.
It is recommended to use cells of the same model, capacity and similar electrical characteristics rather than mixing different brands or models.
It is preferable to use cells with similar age, capacity, internal resistance and overall condition.
The cell can be used for solar storage, inverter batteries, EVs, UPS systems, home backup, commercial energy storage and custom LiFePO4 battery packs.
Yes. A suitable 4S2P configuration can provide approximately 12.8V 200Ah, subject to proper cell matching and BMS configuration.
Yes. An 8S2P configuration can provide approximately 25.6V 200Ah.
Yes. A suitable 16S3P configuration can provide approximately 51.2V 300Ah, provided the complete battery system is designed appropriately.
Depending on the design, you may need a BMS, busbars, cables, cell supports, insulation, fuse/breaker and battery enclosure.
No. This listing is for the Ganfeng 3.2V 100Ah A-Grade LiFePO4 cell unless a different package is specifically stated.
It is suitable for battery manufacturers, solar installers, EV battery builders, technicians and experienced battery-pack assemblers.
It combines 100Ah capacity, A-Grade cell quality, 0.28mΩ internal resistance, 6000-cycle specification and large-format prismatic construction, making it suitable for professional solar, EV, UPS, inverter and energy-storage battery applications.
