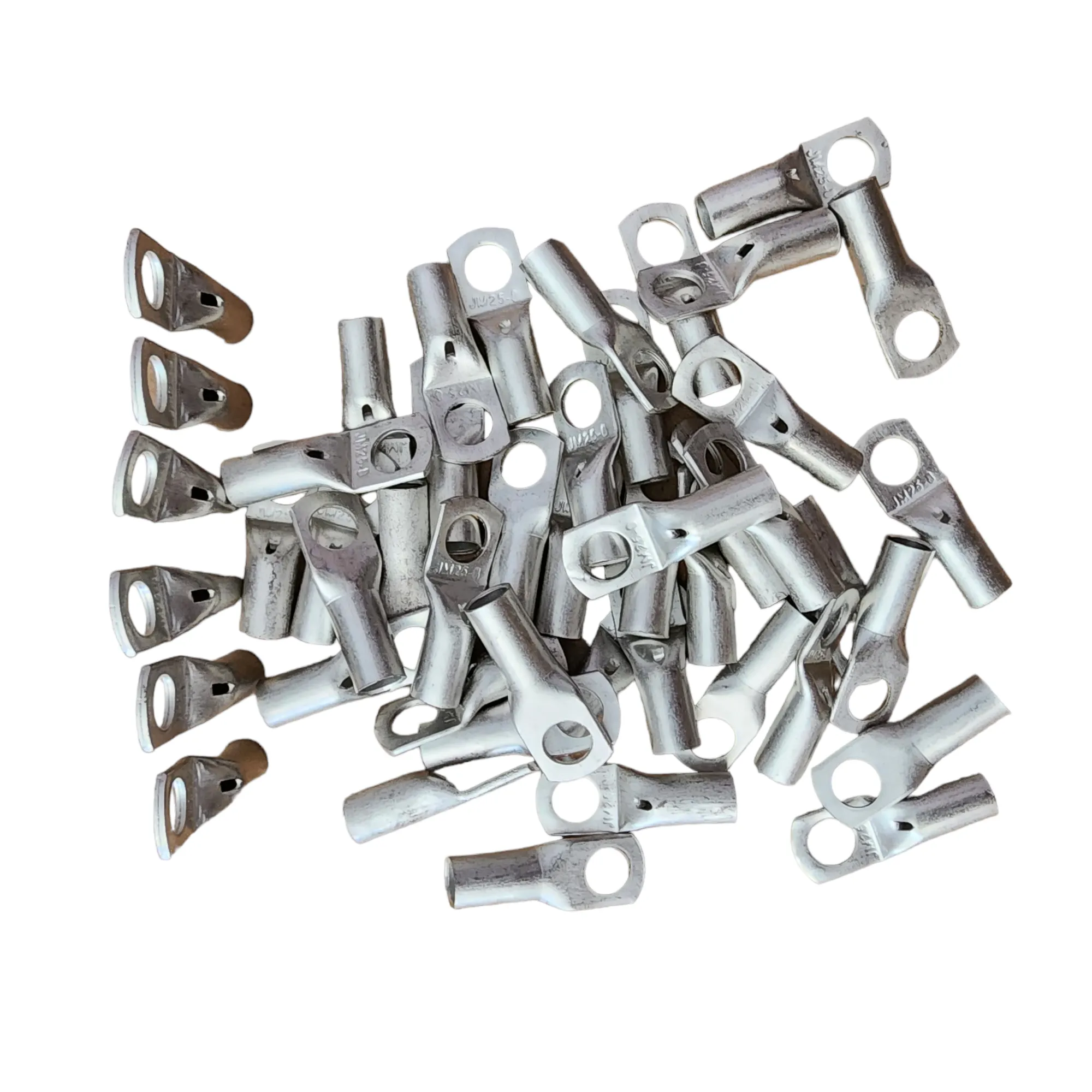

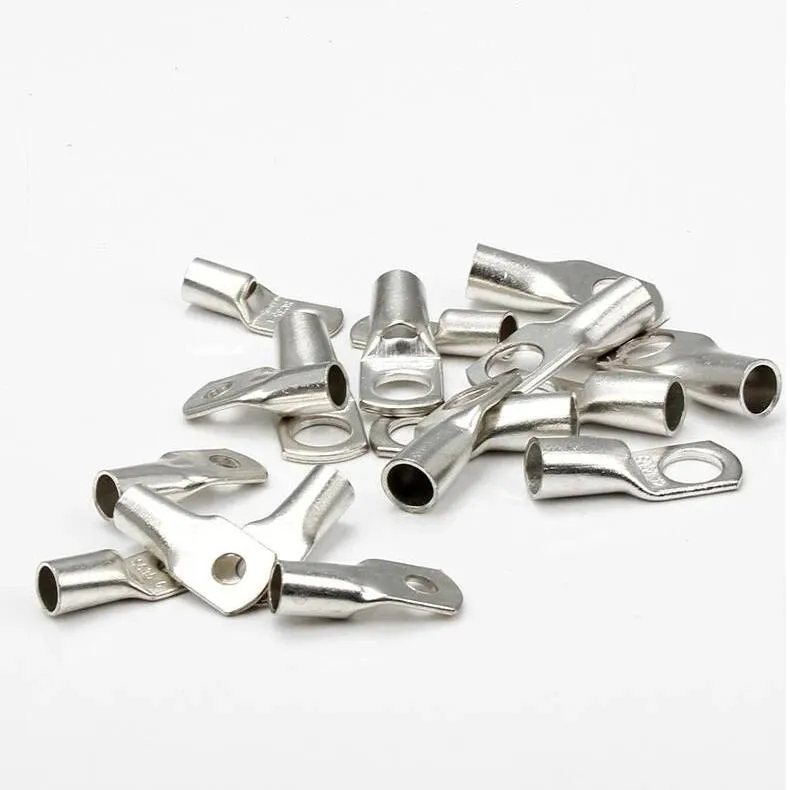

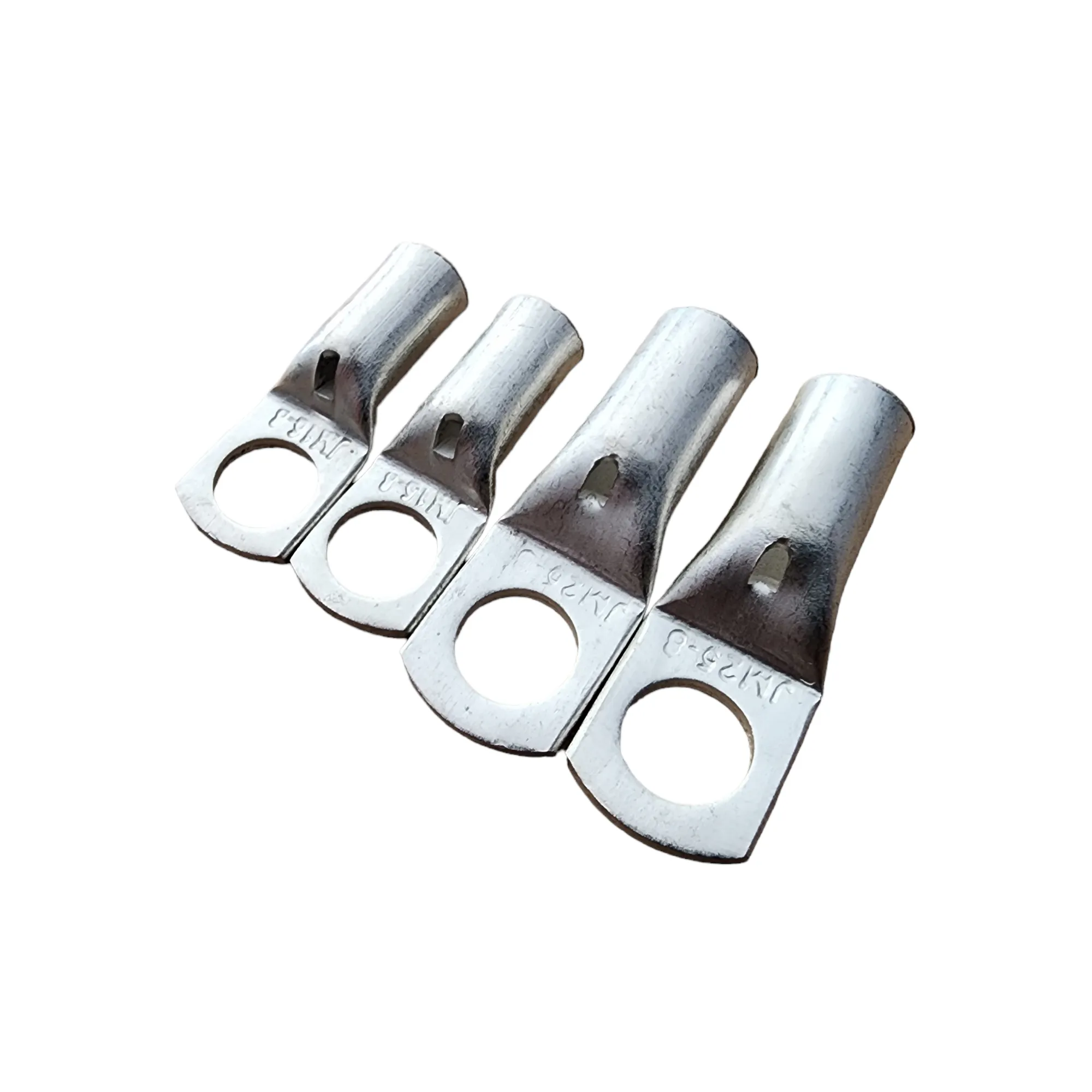

The 10mm² Pure Copper Nickel-Plated Battery Cable Lug is a high-quality cable terminal designed for secure and reliable DC battery connections
Made from pure copper with a nickel-plated surface, it offers excellent electrical conductivity along with improved resistance to oxidation and corrosion
Designed for 10mm² battery cables, this lug is suitable for LiFePO4 batteries, lithium battery packs, solar systems, inverter batteries, UPS systems, EV applications and energy-stor
Tip: Scroll inside the gallery to browse all images.
Product Description
Short Description
The 10mm² Pure Copper Nickel-Plated Battery Cable Lug is a high-quality cable terminal designed for secure and reliable DC battery connections. Made from pure copper with a nickel-plated surface, it offers excellent electrical conductivity along with improved resistance to oxidation and corrosion.
Designed for 10mm² battery cables, this lug is suitable for LiFePO4 batteries, lithium battery packs, solar systems, inverter batteries, UPS systems, EV applications and energy-storage systems.
Its compact and durable construction makes it ideal for professional battery assembly, BMS connections and appropriately sized DC power connections.
Key Features
10mm² Cable Compatibility
Pure Copper Construction
Nickel-Plated Finish
Excellent Electrical Conductivity
Low Electrical Resistance
Improved Corrosion & Oxidation Resistance
Heavy-Duty Construction
Suitable for DC Battery Connections
Designed for 10mm² Flexible Battery Cable
Suitable for LiFePO4 Batteries
Suitable for Lithium Battery Systems
Suitable for Solar Systems
Suitable for Inverter Batteries
Suitable for UPS Systems
Suitable for EV Battery Packs
Suitable for Battery Cabinets
Suitable for Energy Storage Systems
Technical Specifications
Specification Details
Product Type Battery Cable Lug / Terminal Lug
Cable Size 10mm²
Material Pure Copper
Surface Finish Nickel Plated
Construction Heavy-Duty
Cable Compatibility 10mm² Battery Cable
Electrical Application DC Battery Connection
Battery Chemistry LiFePO4 & Compatible Lithium Batteries
Applications Solar, Inverter, UPS, EV & Energy Storage
Important: 10mm² refers to the compatible cable conductor size. The mounting-hole diameter is a separate specification and should be checked before ordering.
Pure Copper Construction
The lug is manufactured from pure copper, providing excellent conductivity for battery and DC power connections.
Benefits
Excellent electrical conductivity
Low electrical resistance
Efficient current transfer
Reduced connection losses
Reliable battery connection
Suitable for DC power applications
Nickel-Plated Surface
The pure copper lug is finished with a nickel-plated coating.
Nickel plating helps provide additional protection against:
Oxidation
Corrosion
Surface deterioration
Environmental exposure
This makes the lug suitable for demanding battery, solar and inverter installations.
Designed for 10mm² Cable
This lug is designed specifically for:
10mm² Battery Cable
It is an ideal matching terminal for 10mm² full-gauge pure copper flexible DC battery wire.
Using a correctly sized cable and properly crimped lug helps create a secure and reliable electrical connection.
Suitable LiFePO4 Battery Applications
The 10mm² nickel-plated copper lug can be used for appropriately designed:
12V LiFePO4 Batteries
12.8V 27Ah
12.8V 50Ah
12.8V 100Ah
24V LiFePO4 Batteries
25.6V 50Ah
25.6V 100Ah
48V / 51.2V LiFePO4 Batteries
51.2V 50Ah
51.2V 100Ah
Note: Battery Ah capacity alone does not determine the correct lug size. The cable size, current requirement and terminal/stud size must all be considered.
Suitable Applications
🔋 LiFePO4 Battery Packs
Suitable for reliable DC connections in LiFePO4 battery assemblies where 10mm² cable is appropriate.
⚡ Inverter Batteries
Suitable for battery-to-inverter connections when the cable, lug and terminal are correctly sized.
☀️ Solar Systems
Suitable for solar battery and energy-storage applications.
🏠 Home Backup
Useful for appropriately designed residential LiFePO4 backup systems.
🔌 UPS Systems
Suitable for compatible DC battery connections in UPS systems.
🚗 EV Battery Packs
Can be used in suitable EV battery wiring where the cable and terminal specifications match the required current.
🏢 Energy Storage
Suitable for appropriately designed residential and commercial energy-storage systems.

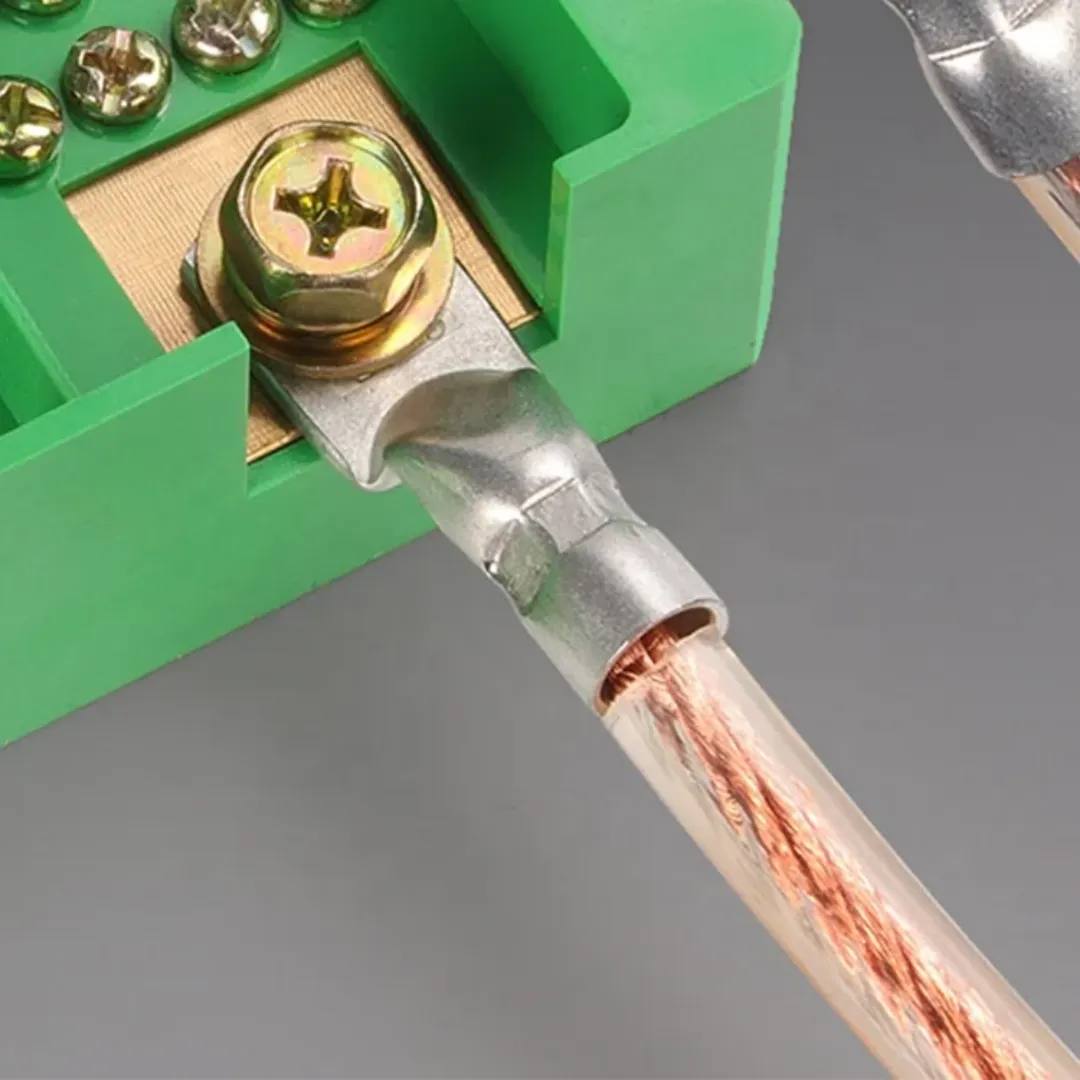

Installation Guide
For a secure and reliable connection:
Use the correct 10mm² battery cable.
Strip the cable to the required length.
Insert the conductor fully into the lug barrel.
Use a suitable crimping tool.
Make sure the crimp is mechanically secure.
Connect the lug to the correct terminal/stud.
Tighten according to the equipment manufacturer's recommended torque.
Properly insulate and protect the connection.
Important
For high-current battery connections, proper mechanical crimping is recommended. Do not rely on solder alone for the main battery connection.
Why Choose Nickel-Plated Copper Lug?
Pure Copper
Provides excellent electrical conductivity and low resistance.
Nickel Plating
Helps improve surface resistance to oxidation and corrosion.
10mm² Compatibility
Designed specifically for 10mm² battery cable.
Flexible Cable Support
Suitable for flexible multi-strand battery cables.
Heavy-Duty Construction
Suitable for demanding battery and DC power installations.

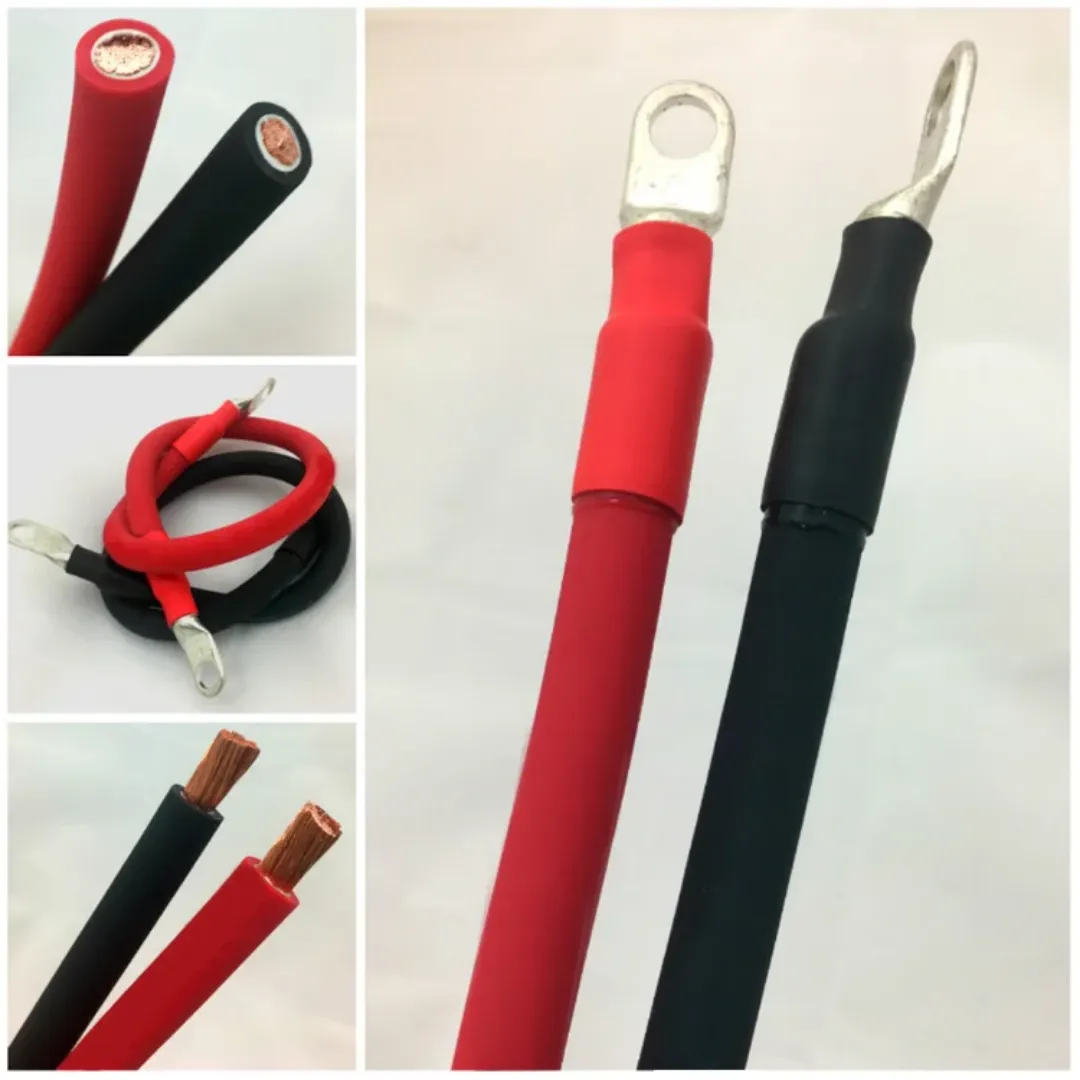

Recommended Combination
For a professional battery installation:
10mm² Full-Gauge Pure Copper Flexible DC Cable
10mm² Pure Copper Nickel-Plated Battery Lug
Proper Heavy-Duty Crimping
Correctly Rated DC Fuse/Breaker
This combination provides a reliable foundation for appropriately designed DC battery connections.

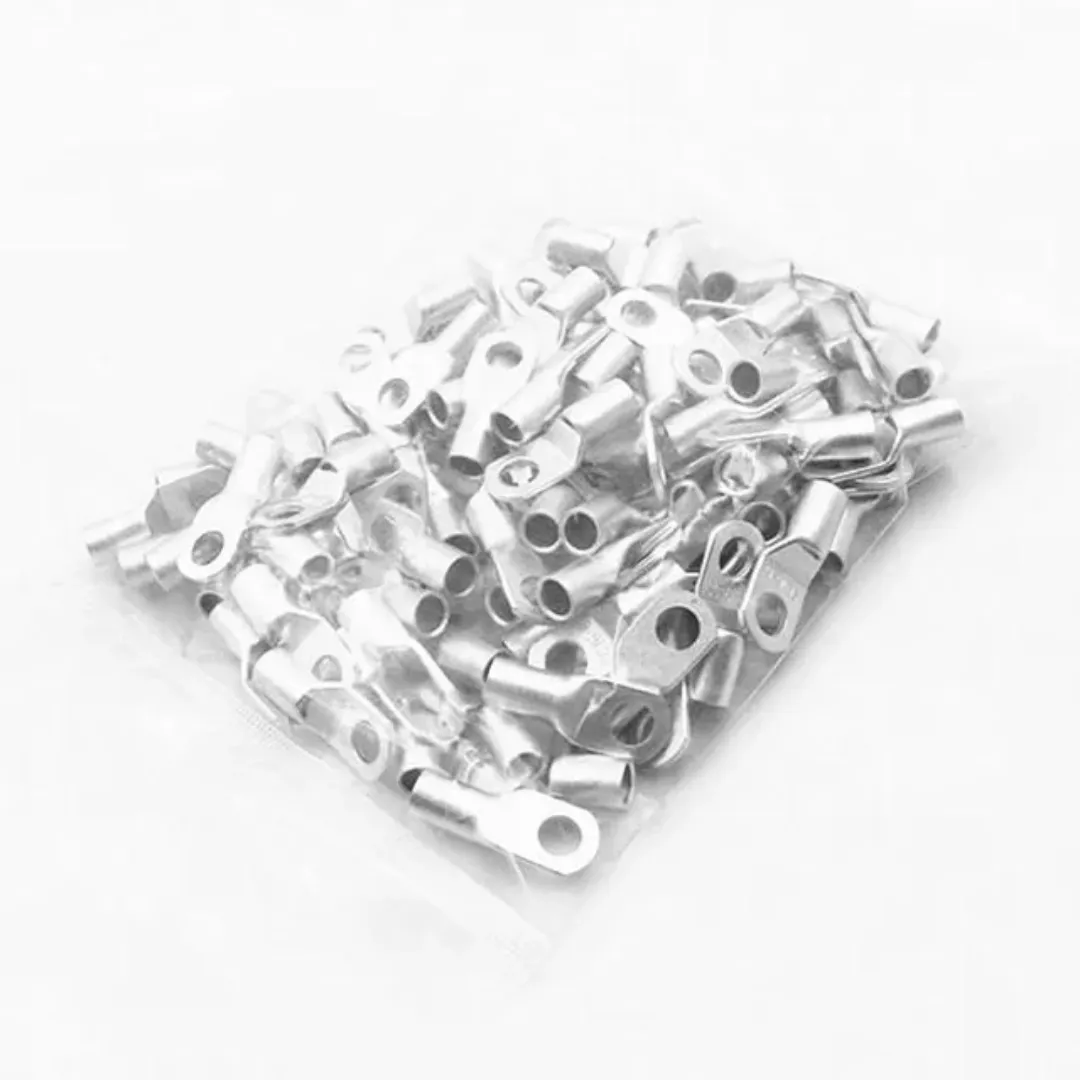

Package Includes
1 × 10mm² Pure Copper Nickel-Plated Battery Cable Lug
Important Note
Please verify the 10mm² cable size and terminal/stud hole size before ordering. The 10mm² specification refers to the compatible cable conductor size, while the lug's mounting-hole diameter is a separate specification.
Frequently Asked Questions
A 10mm² battery lug is a cable terminal designed to connect a 10mm² battery cable securely to a battery, busbar, BMS or other DC terminal.
The lug is made from pure copper with a nickel-plated surface.
Nickel plating provides additional protection against oxidation and corrosion and gives the lug a durable surface finish.
Yes. It is designed for use with 10mm² battery cable.
Yes. It is suitable for appropriately designed LiFePO4 battery systems.
Yes. It can be used with compatible lithium battery systems when the cable, lug and terminal specifications are suitable.
Yes. It is suitable for appropriate solar battery and energy-storage connections.
Yes. It can be used for suitable battery-to-inverter connections when the cable and terminal are correctly sized.
Yes. It can be used for compatible DC battery connections in UPS systems.
Yes. It can be used for suitable EV battery applications where the cable and terminal are properly rated.
Pure copper provides excellent electrical conductivity and low electrical resistance, helping provide efficient current transfer.
Nickel plating helps protect the copper surface against oxidation and corrosion and provides a durable connection surface.
Yes. It is designed as a heavy-duty cable terminal for suitable battery and DC power applications.
It can be used for appropriately rated applications when the cable, lug, crimp and complete connection are suitable for the required current.
No. 10mm² refers to the compatible cable conductor size, not the lug's mounting-hole diameter.
Check the diameter of your battery, busbar or equipment terminal stud and match it with the lug's mounting-hole size.
Yes. It is designed for use with 10mm² pure copper flexible battery cable.
The lug is designed for 10mm² cable. Using it with a smaller conductor is not recommended unless a proper engineered termination method is used.
No. A 10mm² lug should not be substituted for a correctly sized 16mm² lug.
The cable should be fully inserted into the lug barrel and securely crimped using an appropriate crimping tool.
For high-current battery connections, proper mechanical crimping is generally preferred. Do not rely on solder alone for the main high-current connection.
Yes. It is suitable for appropriately designed battery boxes and battery cabinets.
Yes, where the BMS terminal and cable requirements are compatible with the lug.
Yes, provided the BMS terminal accepts the lug's mounting-hole size and the cable/current requirements are appropriate.
Yes. It can be used for suitable battery-to-inverter connections with correctly sized cable and terminals.
Yes. It can be used for suitable 12V-class LiFePO4 battery connections where 10mm² cable is appropriate.
Yes. It can be used for compatible 24V-class battery systems.
Yes. It can be used for compatible 48V/51.2V battery systems where 10mm² cable is appropriately sized.
No. The complete connection must be considered, including the cable, lug, crimp, terminal, BMS, fuse/breaker and operating conditions.
Proper crimping creates a secure mechanical and electrical connection and helps minimize contact resistance and unwanted heating.
Yes. It can be used for appropriate battery-side DC connections in solar and hybrid inverter systems.
Yes. It is suitable for appropriately designed residential LiFePO4 backup systems.
Yes. It can be used for suitable DC connections where the cable and lug are properly rated.
Yes. Nickel plating provides additional surface protection against oxidation and corrosion, which can be beneficial in battery and power-system environments.
Yes. It is suitable for appropriately sized 10mm² flexible multi-strand battery cable when correctly crimped.
Yes. The same lug type can be used for both positive (+) and negative (−) connections when the physical terminal and cable requirements match.
The lug itself does not require a fuse, but the battery circuit should have appropriate overcurrent protection according to the complete system design.
Check the 10mm² cable size, mounting-hole/stud size, material, plating and required current/application.
Its pure copper construction, nickel-plated finish and 10mm² cable compatibility make it suitable for reliable DC connections in appropriately designed LiFePO4 battery systems.
1 × 10mm² Pure Copper Nickel-Plated Battery Cable Lug, unless otherwise specified in the product listing.
