JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor

Category: JK LCD Display

  • Product Highlights
  • 4
  • 3 Inch TFT Touch Screen
  • V19 Version – Dedicated for JK PB Series BMS
  • 480 × 272 Resolution
  • Real-Time Battery Voltage & Current Monitoring
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor

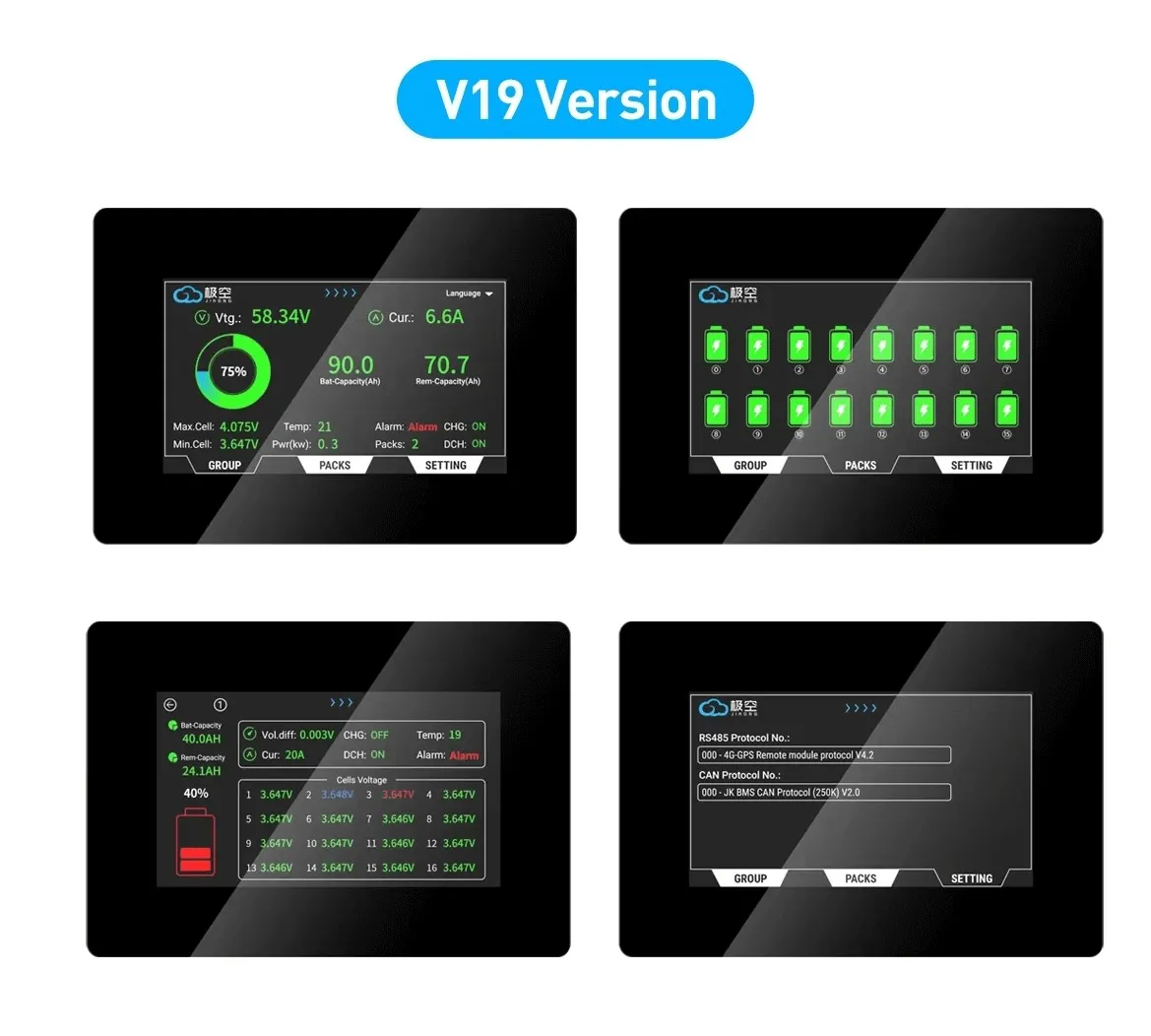

JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 2
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 3
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 4
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 5

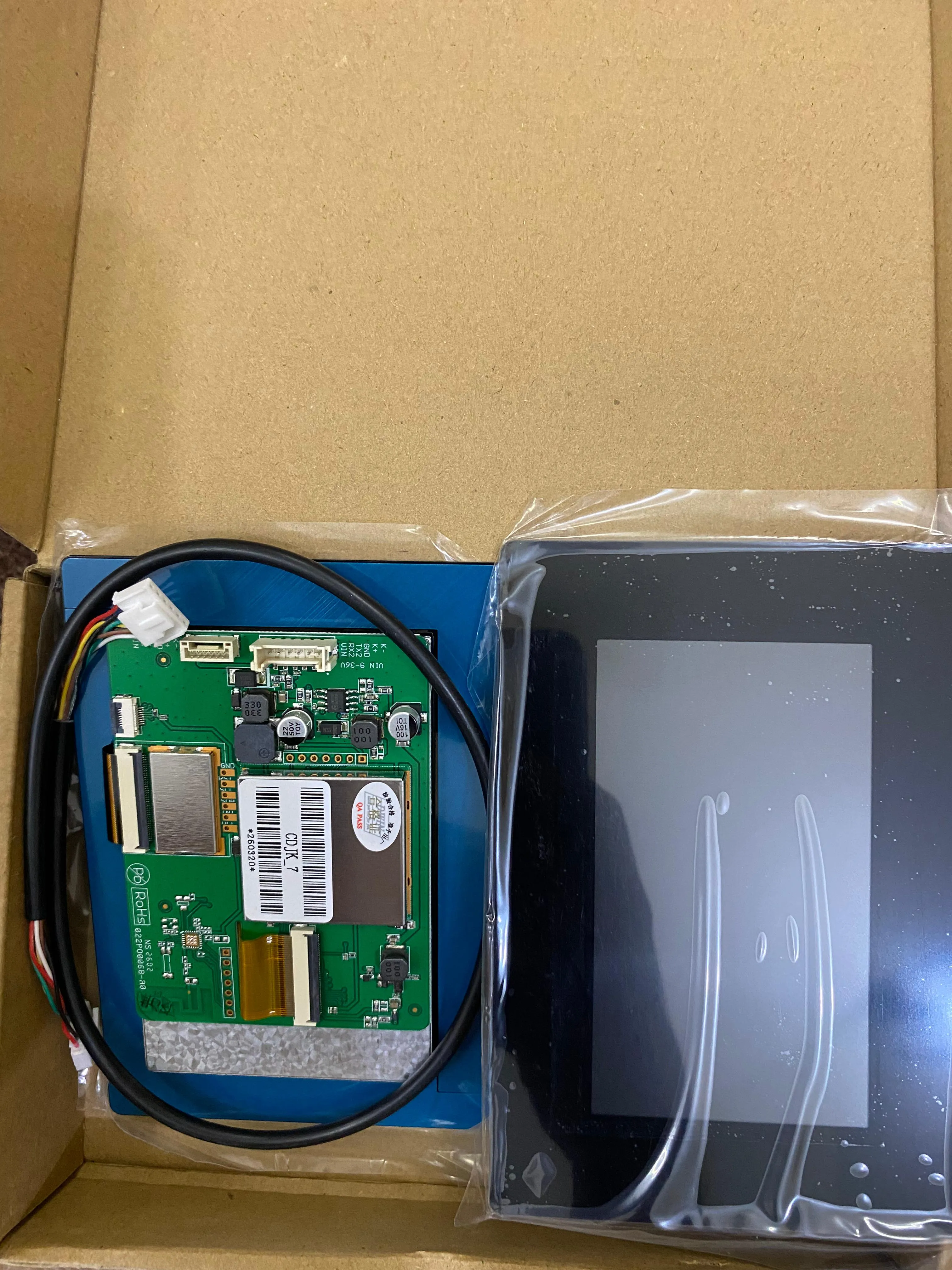

JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 6

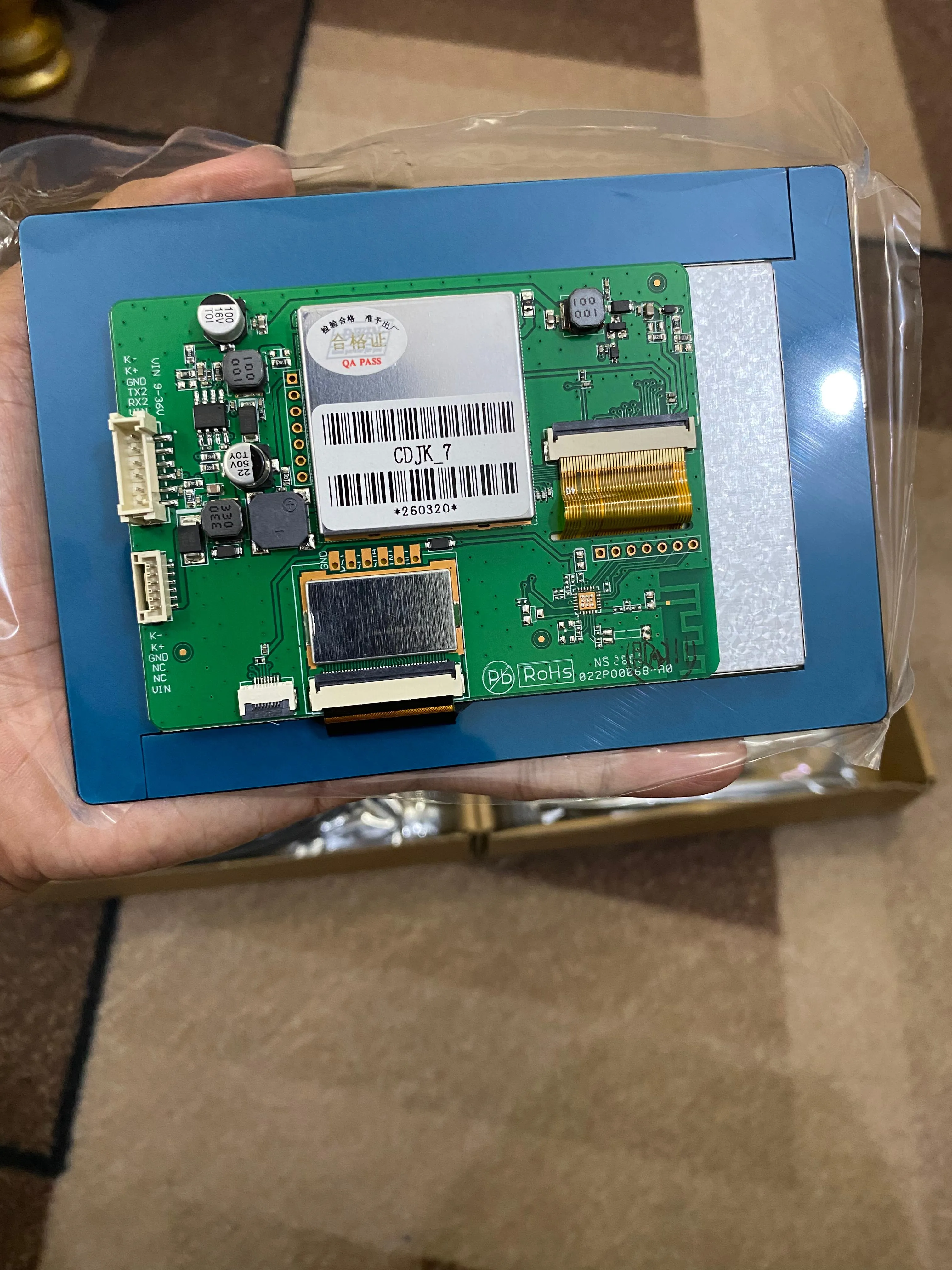

JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 7

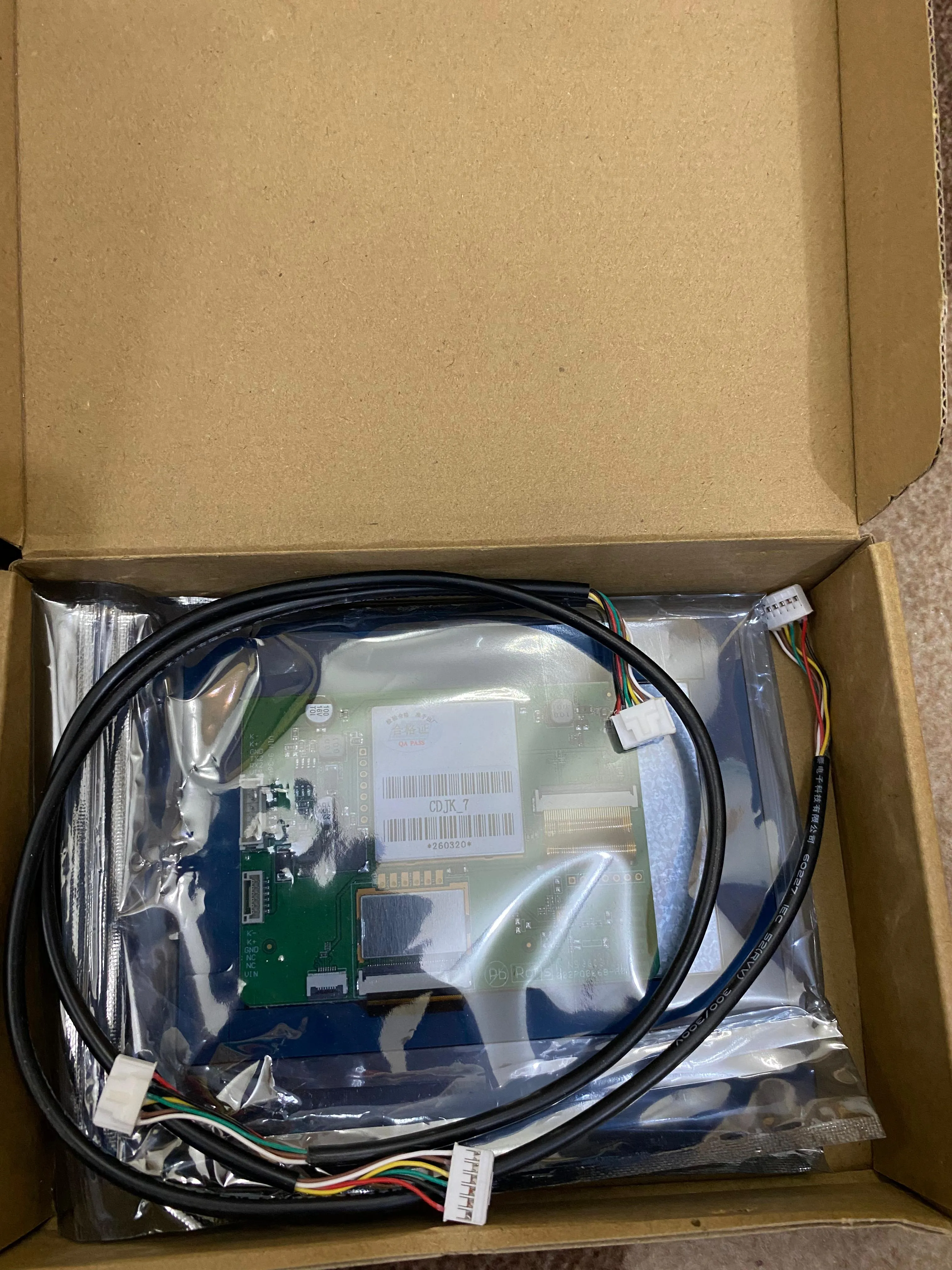

JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 8
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 2
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 3
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 4
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 5
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 6
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 7
JK V19 4.3 Inch Touch LCD Display for PB Series Inverter BMS – Smart Battery Monitor - View 8

Product Description

Product Highlights 4.3 Inch TFT Touch Screen V19 Version – Dedicated for JK PB Series BMS 480 × 272 Resolution Real-Time Battery Voltage & Current Monitoring Displays Battery SOC / Charging Percentage Displays Individual Cell Voltage Shows Maximum & Minimum Cell Voltage Displays Battery Capacity & Remaining Capacity Displays Battery Temperature Shows Charging & Discharging Status Supports Multiple Battery Pack Monitoring English & Multi-Language Interface TTL / UART Communication Wide 9V–36V Working Voltage Suitable for LiFePO4, Lithium-Ion & LTO Battery Systems when used with a compatible JK PB V19 BMS Ideal for Home Energy Storage, Solar Systems, Inverter Batteries & Energy Storage Cabinets The documented display specifications include 480×272 resolution, 9–36V supply range, LED backlight and -20°C to +70°C operating temperature. Product Description JK 4.3 Inch Touch LCD Display V19 is a smart monitoring display designed specifically for JK PB Series V19 Inverter BMS. It provides a clear and convenient way to monitor important battery parameters directly from the battery or energy-storage system. The large 4.3-inch TFT touch screen can display battery total voltage, current, SOC, individual cell voltage, battery capacity, remaining capacity, temperature and charging/discharging status. It also provides information about connected battery packs, making it useful for home energy storage and inverter battery applications. The display uses TTL/UART communication with the compatible JK PB V19 BMS and supports a default communication baud rate of 115200bps. The interface supports multiple languages, including English. Compatible JK BMS Models This display is designed for the following JK PB Series V19 BMS models: JK-PB1A16S10P V19 JK-PB1A16S15P V19 JK-PB2A16S15P V19 JK-PB2A16S20P V19 JK-PB2A16S30P V19 Important: This V19 display should be used only with compatible JK PB Series V19 BMS models. Technical Specifications Specification: Details Brand: JK / JIKONG Product Type: Smart Touch LCD Display Version: V19 Display Size: 4.3 Inch Display Type: TFT LCD Touch Screen Resolution: 480 × 272 Backlight: LED Brightness: 300 nits Working Voltage: 9V – 36V Communication :TTL / UART Default Baud Rate :115200 bps Operating Temperature: -20°C to +70°C Storage Temperature: -30°C to +80°C Language Support: English + Multiple Languages Application: JK PB V19 Inverter BMS Compatible Series: JK PB Series V19 Touch Control: Yes Display Interface: Battery Monitoring & Settings Specifications such as display size, resolution, brightness, voltage range and temperature range are based on the available V19 display documentation. What Can Be Monitored? The JK 4.3-inch display provides information such as: Battery Information Total Battery Voltage Battery Current Battery SOC % Battery Capacity Remaining Capacity Battery Power Cell Information Individual Cell Voltage Maximum Cell Voltage Minimum Cell Voltage Cell Voltage Difference Temperature & Status Battery Temperature Charging Status Discharging Status Alarm Status Battery Pack Status Multi-Pack Information Connected Battery Packs Pack Status Charge/Discharge information Applications Solar Energy Storage Systems Home Energy Storage LiFePO4 Battery Packs Inverter Batteries 48V / 51.2V Energy Storage Batteries Residential ESS Commercial Energy Storage Battery Cabinets Solar Inverter Systems Backup Power Systems

Frequently Asked Questions

It is a smart TFT touch-screen display designed to monitor battery parameters when connected to a compatible JK PB Series V19 BMS.
Yes. The V19 version is a 4.3-inch TFT touch-screen display.
The display resolution is 480 × 272 pixels.
It is compatible with:

JK-PB1A16S10P V19
JK-PB1A16S15P V19
JK-PB2A16S15P V19
JK-PB2A16S20P V19
JK-PB2A16S30P V19
No. This particular V19 display is designed for the compatible JK PB Series V19 BMS.
It can show total voltage, current, SOC, battery capacity, remaining capacity, individual cell voltage, temperature and charging/discharging status.
The documented working voltage range is 9V to 36V.
The display communicates with the compatible BMS through TTL/UART communication.
The default baud rate is 115200 bps.
Yes, when connected to a compatible JK PB V19 BMS configured for the battery system.
Yes. It can display individual series/cell voltage information as provided by the connected BMS.
Yes. Temperature information from the connected BMS can be displayed.
The V19 system supports battery-pack information and monitoring, depending on the connected BMS configuration.
Yes. It is particularly suitable for battery monitoring in home energy storage, solar and inverter battery systems using a compatible JK PB V19 BMS.
The display is supplied with its connection cable according to the applicable package/version. Please verify package contents with the seller before ordering.
The documented operating temperature is approximately -20°C to +70°C.
Yes. English is among the supported interface languages.
Yes. JK-PB2A16S30P V19 is listed among the compatible models.
Yes. It is compatible with JK-PB2A16S20P V19.
It provides a large, easy-to-read touch interface for monitoring important battery and BMS parameters without relying only on a mobile phone/app.
